OverviewStainless Steel Push Rods are simple, yet specialized force gauge attachment for testing compression forces on small components or over a specific area of an item under test. |
Stainless Steel Push Rods are simple, yet specialized force gauge attachment for testing compression forces on small components or over a specific area of an item under test.

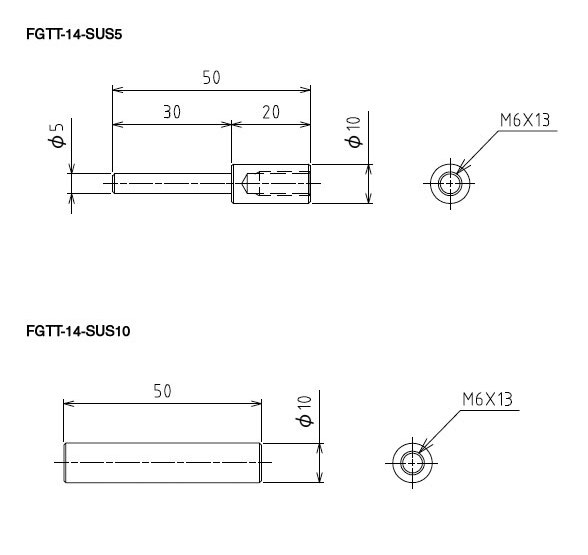

Model | FG-M6COMP5U | FG-M6COMP10U |
---|---|---|
Max Width | 0.2 inch (5mm) | 0.4 inch (10mm) |
Capacity | 225 lb (100 kg) | 225 lb (100 kg) |
Thread | M6 |
M6 |
$144.00 |
