Model |
AND Weighing |
MSI |
Rice Lake |
EK-EP |
MSI-4260-IS |
RL1200 IS |
|
|
|
Price From |
|
|
|
Capacity x Readability |
300 x 0.01 g 3000 x 0.1 g 12 kg x 1 g |
500 x 0.2 lb 2000 x 1.0 lb 5000 x 1.0 lb 10,000 x 2.0 lb 20,000 x 5.0 lb 30,000 x 10 lb 50,000 x 10 lb 70,000 x 20 lb 100,000 x 20 lb |
1000 lb x 0.5 lb 500 kg x 0.2kg |
Pan Size |
dia 110 mm 133 x 170 mm |
- |
8 x 8 Inch 10 x 10 Inch 12 x 12 Inch 15 x 15 Inch |
Type |
Intrinsically Safe Compact Balances |
Intrinsically Safe Crane Scales |
Intrinsically Safe Industrial Scales |
Legal for Trade |
- |
YES |
YES |
|
more |
more |
more |
Series |
Minebea Intec |
Signum Ex |

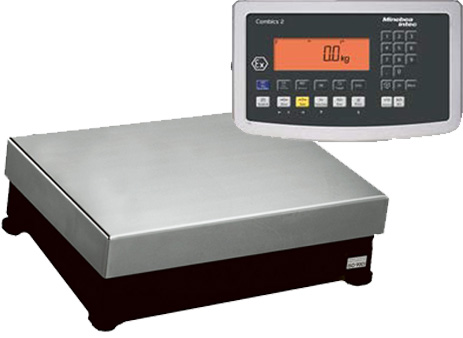

Combics IS-X |
Combics Floor |

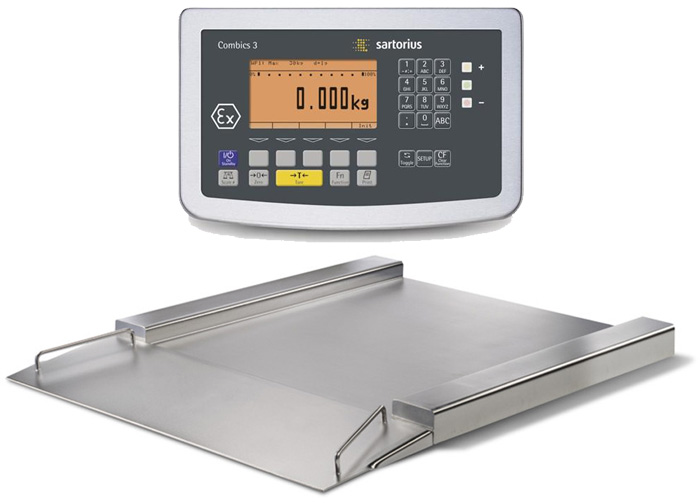

Combics Flat Bed |
|
|
|
|
Price From |
$4347.90
| $9276.80 |
$6013.55 |
$17703.65 |
Capacity x Readability |
1.3 x 0.000002 lb 6.8 x 0.00002 lb 13.5 x 0.00002 lb 75 x 0.0002 lb 6.8 x 0.00002 lb 13.5 x 0.00002 lb 75 x 0.0002 lb
| 6.8 x 0.00002 lb 13.5 x 0.00002 lb 35 x 0.0002 lb 75 x 0.0002 lb 141 x 0.002 lb 141 x 0.0002 lb 330 x 0.002 lb 660 x 0.005 lb
| 15 x 0.0005 lb 30 x 0.001 lb 60 x 0.002 lb 150 x 0.005 lb 200 x 0.01 lb 300 x 0.01 lb 600 x 0.02 lb 1500 x 0.05 lb 3000 x 0.1 lb 6000 x 0.2 lb |
330 x 0.01 lb 660 x 0.02 lb 1320 x 0.05 lb 2200 x 0.1 lb 3300 x 0.1 lb 6600 x 0.2 lb |
0.62 kg x 0.001 g 3.1 kg x 0.01 g 6.1 kg x 0.01 35 kg x 0.1 g
| 3.1 kg x 0.01 g 6.1 kg x 0.01 g 16 kg x 0.1 g 34 kg x 0.1 g 64 kg x 1 g 34 kg x 0.1 g 150 kg x 1 g 300 kg x 2 g
| 6 x 0.0002 kg 15 x 0.0005 kg 30 x 0.001 kg 60 x 0.002 kg 100 x 0.005 kg 150 x 0.005 kg 300 x 0.01 kg 600 x 0.02 kg 1500 x 0.05 kg 3000 x 0.1 kg |
150 x 0.005 kg 300 x 0.01 kg 600 x 0.05 kg 1000 x 0.05 kg 1500 x 0.05 kg 3000 x 0.1 kg |
Pan Size |
5 inch dia 7.1" x 7.1" 13.7" X 9.7"
| 7.1 x 7.1 in 15.8 x 11.8 in 32 x 24 in |
10 x 10 in 12 x 12 in 18 x 18 in 24 x 24 in 30 x 30 in 36 x 36 in 48 x 48 in |
23.6 x 23.6 in 31.5 x 23.6 in 31.5 x 31.5 in 39.4 x 23.6 in 39.4 x 31.5 in 39.4 x 39.4 in 49.2 x 39.4 in 49.2 x 49.2.4 in 59.1 x 49.2 in 59.1 x 59.1 in 78.7 x 59.1 in |
Legal for Trade |
- |
- |
- |
- |
Type |
Intrinsically Safe Industrial Scales |
Intrinsically Safe Industrial Scales |
Intrinsically Safe Floor Scales |
Intrinsically Safe Flat Bed Scales |
|
more info |
more |
more |
more |
Series |
Sartorius |
PMA Evolution |
PMA HD |
PMA Power |
|
|
|
Price From |
|
|
|
Capacity x Readability |
1000 x 0.05 g 7500 g x 0.1 g
| 2200 x 0.01 g |
35000 x 0.1 g |
Pan Size |
233 mm dia
| 180 mm dia |
350 x 240 mm |
Legal for Trade |
- |
- |
- |
Type |
Intrinsically Safe Paint Mixing Scales |
Intrinsically Safe Paint Mixing Scales |
Intrinsically Safe Paint Mixing Scales |
|
more info |
more |
more |
What is meant by "Intrinsically Safe"?
Through the use of special components, materials, ratings and component
layouts, all electric circuits and inter-connected cables are designed
so that
a) no spark or
b) thermal effect is capable of causing ignition under fault conditions.
Intrinsically safe equipment can be isolated by Zener barriers from
non-intrinsically-safe circuits for data transfer to the safe area
Basic principles of intrinsic safety:
- Voltage limitation
- Current limitation
- Limitation of storable energy
Advantages of intrinsically safe protection
- Equipment can be calibrated and maintained without removing power
- General purpose wiring methods can be used for connection to power
- No safety permits are required since the area does not need to be “shut
down" for servicing
Classification of Hazardous Locations in the United
States
Class
- Class I - locations in which
hazardous concentrations of flammable gases or vapors exist
- Class II - locations which are
hazardous due to the presence of combustible or electrically conductive
dust of fibers
Division
- Division 1 - present continuously,
intermittently or periodically during normal operating conditions
- Division 2 - not present under
normal operating conditions, but as a result of equipment failure,
breakdown of containers or abnormal operation of ventilating equipment
Groups
- Group A - atmospheres containing
acetylene
- Group B - atmospheres containing
hydrogen, gases or vapors of equivalent hazard such as natural gas
- Group C - atmospheres containing
ethyl ether vapors, ethylene or cyclopropane
- Group D - atmospheres containing
gasoline,hexane, naptha, benzine, butane, propane, alcohol, acetone,
benzol, lacquer solvent vapors or other natural gases
|
