| The CAS RW-X200 Heavy Duty Portable Axle Weigher is available in four (4) standard platform sizes along with custom sizes to meet new and existing retrofit and replacement installations more ... |
Features
The CAS RW-X200 Heavy Duty Portable Axle Weigher is available in four (4) standard platform sizes along with custom sizes to meet new and existing retrofit and replacement installations.
The CAS RW-X200 Series Heavy Duty Portable Axle Weigher is a versatile, self contained, pit-type, or above ground steed deck axle scale that is built to last. Its heavy duty, open bottom I-beam construction consists of wide flange structural I-beams and a a 1/2 inch deck plate... The thickest decking of any axle scale sold today! Superior structural support is provided by equally distributing vehicle weight over the entire scale surface, insuring less down-time and longer scale life.
Proven Durable Design - backed by 90+ years of industrial manufacturing experience
Individual Vehicle Axle Weights
Combined Axle Total Gross Weight
Maximize productivity and efficiency while adhering to regulatory compliance standards.
Insure truck axles do not exceed maximum state mandated limits that can result in expensive fines.
The CAS RW-X200 Heavy Duty Portable Axle Weigher is available in four (4) standard platform sizes along with custom sizes to meet new and existing retrofit and replacement installations.
The CAS RW-X200 Series Heavy Duty Portable Axle Weigher is a versatile, self contained, pit-type, or above ground steed deck axle scale that is built to last. Its heavy duty, open bottom I-beam construction consists of wide flange structural I-beams and a 1/2 inch deck
plate... The thickest decking of any axle scale sold today! Superior structural support is provided by equally distributing vehicle weight over the entire scale surface, insuring less down-time and longer scale life.
Scale Features
- 6 in Low profile design insures easy access on and off ramp & platform.
- Rigidly mounted, IP67 rated, double ended shear beam load cells with 150% full scale overload capacity provides accurate weight without the need for moving suspension parts that require maintenance or load cell feet that can break or bend.
- Easy access, side mounted stainless steel junction boxes protect wire terminations and all interconnect cables including military grade connectors

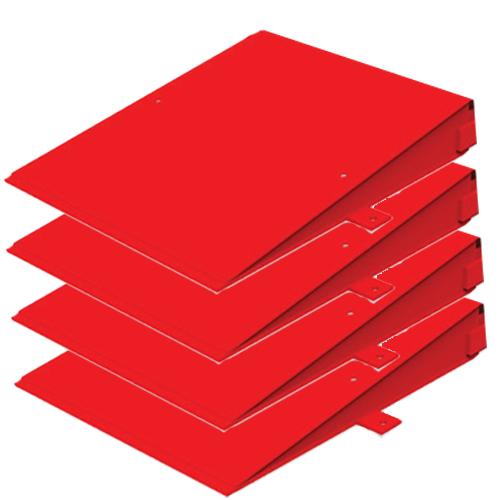

- Completely detachable ramps include a fully plated base to help stabilize and fortify minimal soil bearing support. Ramp lag down tags enable the portable CAS RW-X200 to be installed in varying applications and site conditions.
- To insure installation ease, platforms can be transported and set via fork lift. All platforms and ramps are equipped with lift eye bolt holes.
- Quality Finish: All platform steel is shot blast cleaned to SSPC-SP6 specifications prior to painting with a durable two-component polyamide epoxy paint system.
Options
- Indicators
- Remote Displays
- Stainless Steel Load Cells
- FM Approved Load Cells
- Pit Frames
- Ramps
- Spacer Modules
Specifications
|
RW-X200-84 |
RW-X200-120 |
RW-X200-144 |

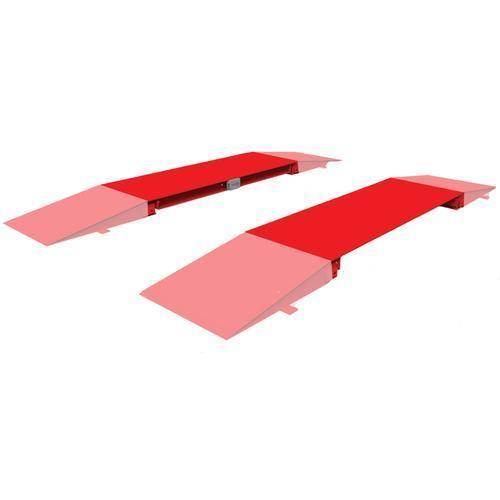

RW-X200-168 |
| Size |
84 x 30 x 6 Inch |
120 x 30 x 6 Inch |
144 x 30 x 6 Inch |
168 x 30 x 6 Inch |
| Capacity |
60,000 lb |
60,000 lb |
60,000 lb |
60,000 lb |
| Construction |
I-Beam |
| rated |
IP67 |
| overload |
150% full scale |
| Ramps |

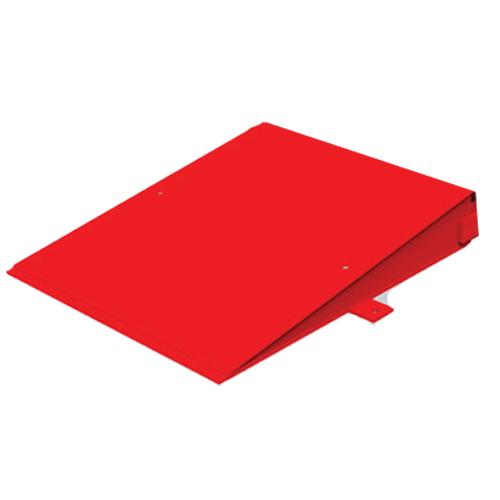

RW-X200-R36 36 x 30 x 6 inch - not included |
| Indicator Options |
not included: RW-2601P, R423 |
Choose from a variety of CAS scale indicators, controllers, remote displays, and printers to meet all your weighing and data accumulation needs!
Contact Us for RF data transfer needs.
Note: Load cell cables from platform to platform and to indicator is extra.
