Industrial Scales > Counting Scales > Dedicated Counting Scales | |||||||||||||||||||||
|
|||||||||||||||||||||
OverviewEconomical digital counting scales designed for fast, accurate operation. Ideally suited for annual inventories, parts rooms, rentals and other counting tasks, with an internal counting resolution of 1:600,000. Capacities from 6 to 60 lbs (3000 to 30,000
Capacity x Readability
Manufature:
Ohaus15 kg x 0.5 g Pan Size 11.6 x 8.9 in SKU: EC15 UPC: B0051W7PUA Weight: 12.00 lb
|

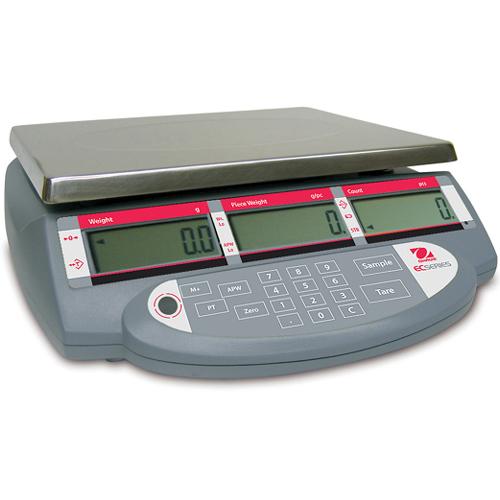

Ohaus EC Series Counting Scales are economical digital counting scales designed for fast, accurate operation. Ideally suited for annual inventories, parts rooms, rentals and other counting tasks, with an internal counting resolution of 1:600,000. Ohaus EC Counting Scales offer accuracy, durability and portability in one practical design.
Standard Features: The Ohaus EC Digital Counting Scale offers features for fast and accurate use: A Wide Range of Counting Applications and Industries:
Specifications
Item Number |
EC3 |
EC6 |
EC15 |
EC30 |
---|---|---|---|---|
Capacity x Readability |
3000 g x 0.1 g 6 lb x 0.0002 lb |
6000 g x 0.2 g 15 lb x 0.0005 lb |
15000 g x 0.5 g 30 lb x 0.001 lb |
30000 g x 1 g 60 lb x 0.002 lb |
Minimum Recommended Sample Weight |
1 g / 0.002 lb |
2 g / 0.005 lb |
5 g / 0.01 lb |
10g / 0.02 lb |
Minimum Recommended APW |
0.01 g / 0.00002 lb |
0.02 g / 0.00005 lb |
0.05 g / 0.0001 lb |
0.1 g / 0.0002 lb |
Maximum Internal Counting Resolution |
1:600,000 | |||
Maximum Displayed Resolution |
1:30,000 | |||
Weighing Units |
lb or g (menu selected) | |||
Application Modes |
Weighing, Counting, Accumulation | |||
Display |
3-Window, backlit LCD 0.75in / 19mm High, 6-digit, 7-segment | |||
Display Indicators |
Stability, Center of Zero , Tare, Low Sample Weight, Low APW, Accumulation, Battery Status, Weighing Unit | |||
Memories |
10 locations for APW | |||
Keyboard |
7 function (Tare, Sample, APW, Zero, Pre-set Tare, M+, Cancel), 11 numeric membrane keys | |||
Tare Range |
To Full Capacity by Subtraction (except EC15, up to 20 lbs/10kg only) | |||
Stabilization Time |
¡Ü 2 seconds | |||
Auto-Zero Tracking |
0 (off), 0.5, 1, 2, 3d | |||
Safe Overload Capacity |
120% of capacity | |||
Power |
AC Adapter (included) / Internal rechargeable lead acid battery (included) | |||
Battery Life |
80 hours continuous use with 12 hour recharge time | |||
Calibration |
External, with user-selectable calibration weight | |||
Operating Temperature and Humidity Range |
32¡ã to 104¡ã F / 0¡ã to 40¡ã C | |||
Pan Size (in / mm) |
11.6 x 8.9 / 294 x 226 | |||
Scale Dimensions (in / mm) |
12.8 W x 13 D x 4.5 min H / 325 W x 330.5 D x 114 min H | |||
Shipping Dimensions (in / mm) |
17.3 W x 14.2 D x 6.3 H / 440 W x 360 D x 160 H | |||
Net Weight (lb / kg) |
9.2 / 4.2 | |||
Shipping Weight (lb / kg) |
11.7 / 5.3 | |||
Item Number |
EC3 |
EC6 |
EC15 |
EC30 |
Physical and Operational Features:
Removable stainless steel weighing pan, clear plastic in-use protective cover, durable ABS plastic housing, shipping screw to avoid damage to sensitive components, backlit LCD displays, rubber user-adjustable leveling feet, front panel leveling bubble, internal rechargeable lead acid battery, external AC wall adapter, large dedicated Tare and Sample keys, dedicated memory, pre-set Tare, APW and Zero keys, numeric keypad, user-selectable Auto-Off, Pre-set Tare, Auto-optimization of APW, low APW alert, user-selectable environmental filtering, Auto-Zero Tracking, 10 APW memory locations, Accumulation function with recall of total weight, number of weighments and total parts count.
Industry Leading Quality and Support
All Ohaus EC Counting Scales are manufactured under an ISO 9001:2000 Registered Quality Management System. Our rugged construction and stringent quality control have been hallmarks of all Ohaus products for nearly a century.
EC15 Digital Counting Scale 15000 g x 0.5 g $544.44 You are viewing this product |
