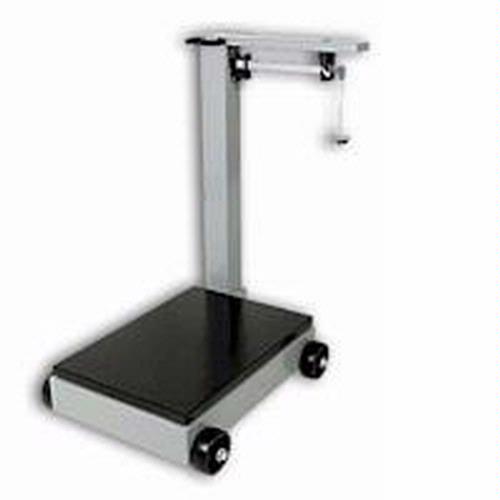

OverviewDetecto 954/854 mechanical scales with simplified lever systems offer maintenance-free, simple operation that is dependable, rugged, and durable. Large 5" (127mm) diameter heavy-duty rubolene wheels make the scales easy to roll wherever they're needed. |
Capacity x Readability: 1000 x 0.5 lb - Legal for Trade Constructed entirely of heavy-duty welded fabricated steel bases and electrostatically coated with long-life paint, the 854F and 954F Series provide portable, fast, accurate performances. These models have your choice of platforms sizes (19 x 28 / 483mm x 711mm or 28 x 28 / 711mm x 711m) and come in a variety of capacities listed below.
Detecto 954/854 series mechanical scales with simplified lever systems offer maintenance-free, simple operation that is dependable, rugged, and durable. Large 5 (127mm) diameter heavy-duty rubolene wheels make the scales easy to roll wherever they are needed. The die-cast beam with easy-to-read numbers can be viewed from the front or back of the scale.
854F / 954F Specifications
Platform Sizes:
854F - 19 x 28 / 483mm x 711mm
954F - 28 x 28 / 711mm x 711mm
Wheels:
Large 5 (127mm) diameter heavy-duty rubolene
Overall Dimensions:
854F - 45 H x 24 W x 35 D / 114cm H x 61cm W x 89cm D
954F - 45 H x 33 W x 35 D / 114cm H x 84cm W x 89cm D
Counterpoise weights supplied to the capacity of the scale (dual reading Model 854F supplied with both pound and kilogram weights).
854F/954F Features | |
---|---|
| |
| |
| |
| |
| |
|
854F / 954F Series Portable Platform Scale Models | ||||
---|---|---|---|---|
Model | Capacity | Front of Beam | Back of Beam | Platform Size |
854F100P | 1,000 lb | 100 lb x .5 lb | 100 lb x .5 lb | 19 x 28 / 483mm x 711mm |
854F50P | 500 lb | 50 lb x .25 lb | 50 lb x .25 lb | 19 x 28 / 483mm x 711mm |
854F50K | 500 kg | 50 kg x .25 kg | 50 kg x .25 kg | 19 x 28 / 483mm x 711mm |
854F50PK | 500 lb / 200 kg | 20 kg x 100 g | 50 lb x .25 lb | 19 x 28 / 483mm x 711mm |
854F100PK | 1,000 lb / 500 kg | 50 kg x .25 kg | 100 lb x .5 lb | 19 x 28 / 483mm x 711mm |
954F100P | 2,000 lb | 100 lb x .5 lb | 100 lb x .5 lb | 28 x 28 / 711mm x 711mm |
954F50K | 1,000 kg | 50 kg x .25 kg | 50 kg x .25 kg | 28 x 28 / 711mm x 711mm |
$760.41 |
