| Our NEW DT-205LR tachometers incorporate laser technology yet retain our hallmark rugged construction and reliable quality components; both offer incredible value and versatility as they perform non-contact and contact applications via the included contact adapter. more ... |
Features
Our NEW DT-205LR tachometers incorporate laser technology yet retain our hallmark rugged construction and reliable quality components; both offer incredible value and versatility as they perform non-contact and contact applications via the included contact adapter.
FEATURES
- Advanced laser beam detection
- Extremely accurate
- Length and rate functions
- Multi-mode speed selection
- Extensive speed range (up to 99,999 RPM)
- All-metal construction
- Large 5 digit display
- Expansive 10 test memory capacity
- Lengthy battery life (25 hours)
- CE mark
BENEFITS
- Enables safe RPM measurement from 14 feet
- Fully meets the strictest tolerances
- Increases value/versatility via added applications
- Provides versatility via 10 selections
- Maximizes usage in almost limitless applications
- Exceptional durability; withstands harsh use
- Permits easy reading
- Allows thorough equipment/process inspection
- Longer operating times are achieved
- Permits easy compliance with regulations
- Compliant with applicable EU directives

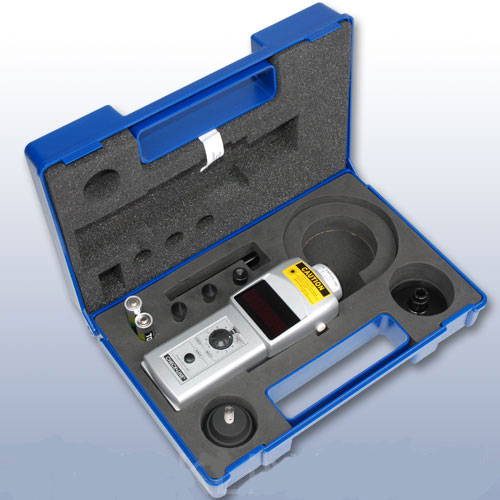

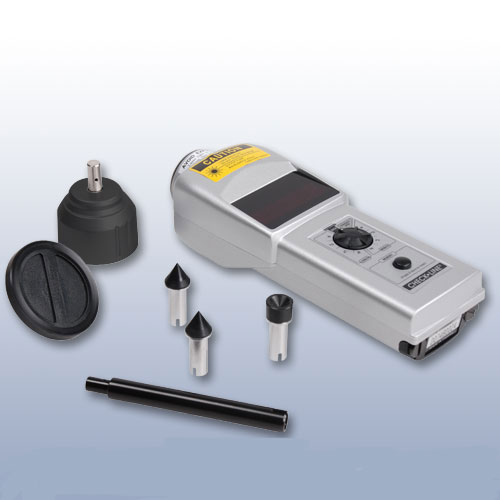

Whats Included with the SHIMPO DT-205LR
- Tachometer
- 2 Cone Adapters
- Funnel Adapter
- Reflective Tape
- 3.5" Extension Shaft
- Master Wheel (6” cir.)
- Contact adapter
- Carrying Case
- Batteries
| Measuring Range |
Non-Contact - 6 to 99,999 rpm
Contact - 0.8 to 25,000 rpm |
| Accuracy |
6 to 8,299 rpm: ±1 rpm
8,300 to 24,999 rpm: ±2 rpm
25,000 to 99,999 rpm: ±0.006% rpm |
| Display |
DT-205LR: (LCD MODEL) 5 digit 0.47" (12mm) high
DT-207LR: (LED MODEL) 5 digit 0.4" (10mm) high |
| Measurement Units |
Per Second: Inches, Centimeters (optional, inquire)
Per Minute: Revolutions, Inches, Feet, Yards, Meters
Per Hour: Miles, Kilometers (optional, inquire)
Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters |
| Measuring Distance |
14 feet (4.2 m) maximum |
| Detection |
Laser Diode, Class II |
| Memory |
13 readings are stored in memory and retained for 5 minutes
(last, max., min., and 10 measurements) |
| Over-Range Indicator |
Flashing numerals |
| Update Time |
1 second (typical) |
| Batteries |
2 - 1.5 V AA |
| Battery Life |
DT-205LR: Approx 40 hrs
DT-207LR: Approx 25 hrs |
| Low Voltage Indicator |
DT-205LR: Flashing "LO BAT" display
DT-207LR: "B" display |
| Operating Temp |
32 to 113° F (0 to 45° C) |
| Construction |
Die-cast aluminum housing |
| Dimensions |
6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7) |
