Test Equipment > Grips and Attachments > Tensile - Pull | ||||||
|
||||||

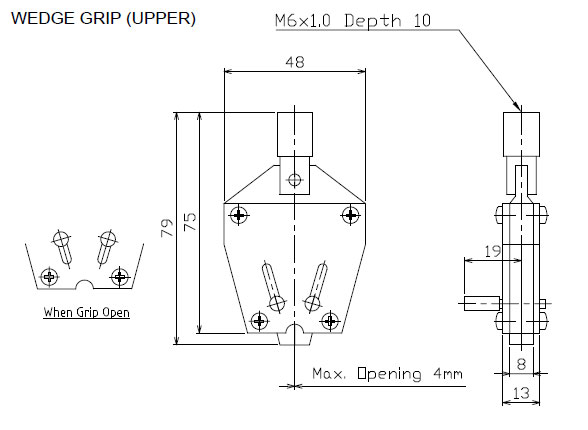

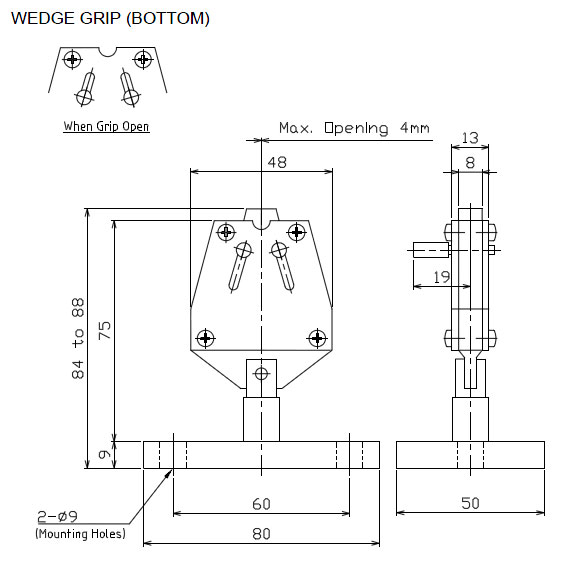

OverviewSHIMPO’s Wedge Grip attachments are ideal for testing wires, strip material, and plastic tape or films. The Wedge Grip comes in two capacities for lighter and heavier loads; spring-loaded jaws automatically close on the specimen and tighten as tension is applied
|
SHIMPO’s Wedge Grip attachments are ideal for testing wires, strip material, and plastic tape or films. The Wedge Grip comes in two capacities for lighter and heavier loads; spring-loaded jaws automatically close on the specimen and tighten as tension is applied.
Model | FG-M6WDG50U | FG-M10WDG500U |
---|---|---|
Capacity | 100 lb (50 Kg) | 500 lb (250 Kg) |
$360.00 |
