| DETECTO’s versatile DL series
price computing scales
with integral label printers
are designed for highly customizable
retail use in delis,
supermarkets, produce sections,
convenience stores, and grocery
store meat sections. more ... |
Features
ALL-IN-ONE PRICE COMPUTING AND LABEL PRINTING SCALE
DETECTO’s versatile DL series
price computing scales
with integral label printers
are designed for highly customizable
retail use in delis,
supermarkets, produce sections,
convenience stores, and grocery
store meat sections. With 5,990
PLUs and 2-MB memory, the DL
series is economical, durable,
user-friendly and incorporates all
of the essential features needed
for legal-for-trade weighing and
label printing.

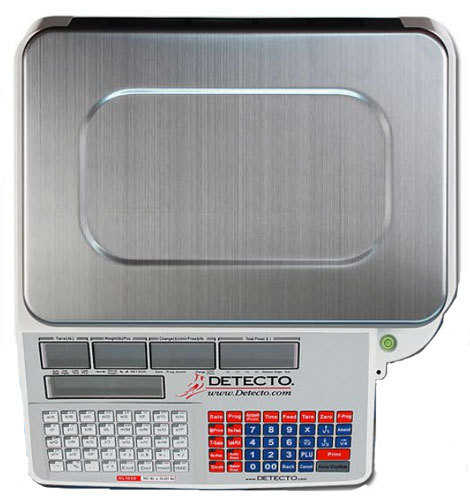

VIVID DISPLAY
Bright green, easy-to-read LED
display readouts ensure visual
accuracy for both the operator
and the customer. The 5-window
display includes 1 dot matrix
message display.

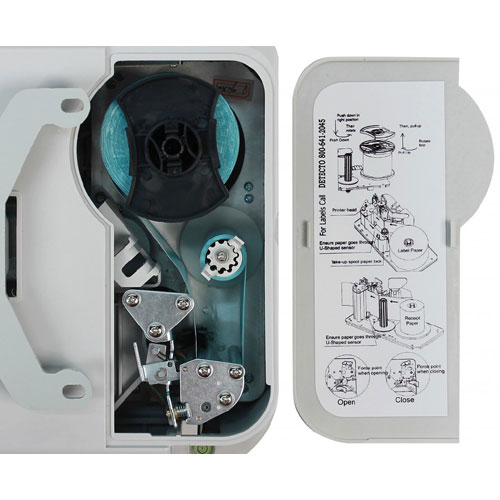

CUSTOMIZE WHAT YOU PRINT
DETECTO’s DL series
prints labels in a
wide variety of styles,
sizes, and printed
information: bar codes,
QR codes, safe handling
images, ingredients,
weights, date formats
with month/day or
time, nutritional facts,
discounts, logos,
and more.
50 label types available
via included software
with the DL serie
INCLUDES PC SOFTWARE
DETECTO’s DL retail scale is as
intuitive to set up as it is to use,
simplifying both management
and employees tasks. The scale
comes with versatile PC setup
software and networking
capabilities allowing you to make
updates to multiple scales for your
facility. Customized reporting
features provide you with all the
information you require to make
your accurate business decisions
for your store.
Flexible and easy-to-use PC software with
drag-and-drop graphics set-up:
- Over 50 label types are available to set
up via included software
- Simplified exporting and importing
PLUs to and from Excel
- Full control over PLU data
- Easy firmware USB upgrades using USB
drive (flash memory) with no need to
break the NTEP inspection seal
- Full back up of all specifications
(duplicates a scale’s setup in minutes)
- Each PLU can easily be created, viewed,
and modified within the DLX50 utility. PLUs
created at the scale can be imported to the
utility and viewed/modified as well
- PLU and setup information can be
imported and exported via RS232, USB,
or Ethernet at the click of a button
- Custom bitmap graphics can be loaded onto
the DL Series scales for use in label printing.
- Labels have fully customizable layouts
and font sizes by use of this user-friendly
graphic interface.
- This graphic display allows PLUs to be
quickly assigned to quick keys. This page
can then be printed and used as the
quick key overlay for the DL Series scale

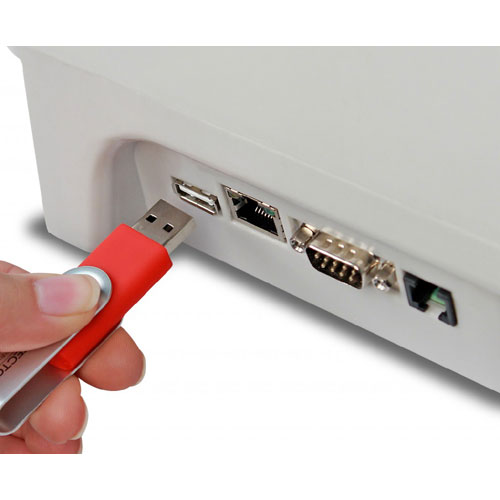

EXTENSIVE CONNECTIVITY AVAILABLE
The DL Series comes with four communication
ports to accommodate the interface
requirements of various integration
communication setups.
WHATS INCLUDED
- Scale
- Operation manual
- DL series set-up utility CD
for PC software
- Four (4) overlays for PLU
shortcuts
- AC power cord
|
Model Number |
DL-1030 |
DL-1030P |
DL-1060 |
DL-1060P |
|
Capacity x Readability |
30 lb x 0.01 lb |
30 lb x 0.01 lb
With Tower Pole Display |
60 lb x 0.02 lb |
60 lb x 0.02 lb
With Tower Pole Display |
|
Display |
Front – 4 seven-segment LED screens and 1 dot matrix
text screen (with upper and lower case characters);
Back: 4 seven-segment LED screens |
Front – 4 seven-segment LED screens and 1 dot matrix
text screen (with upper and lower case characters);
Back: 4 seven-segment LED screens and 1 dot matrix
text screen (with upper and lower case characters) |
|
Display Digits |
4 digit Tare, 6 digit Unit Price, 5 digit Weight, 6 digit Total Price |
|
Max PLU |
5,990 PLUs |
|
Total Keys |
89 |
103 |
|
Speed Keys |
40 (doubles to 80 when pressing SHIFT +
the quick key for a second PLU from the same key) |
63 (doubles to 126 when pressing SHIFT +
the quick key for a second PLU from the same key) |
|
Measurement Type |
Load Cell |
|
Printer |
Thermal |
|
Label Size |
Width: 40 mm – 60 mm; Length: 128 mm |
|
Interface |
USB, Ethernet, RS232 serial, and cash drawer port |
|
Power Source |
120VAC, 50-60 Hz (AC power cord included) |
|
Operating Temperature |
32° F – 104° F / 0° C – 40° C |
|
Operating Humidity |
15% - 85% relative humidity non-condensing |
|
Construction |
Stainless steel platform and ABS plastic scale enclosure |
|
Platform Size |
12.8 in W X 8.9 in D / 32.5 cm W X 22.6 cm D |
|
Overall Dimensions |
13.8 in W x 15.5 in D x 6.8 in H /
35.1 cm W X 39.4 cm D X 17.3 cm H |
13.8 in W x 17.4 in D x 18.1 in H /
35.1 cm W X 44.2 cm D X 46 cm H |
|
Certification |
NTEP legal for trade certified |
|
Product Net Weight |
13.4 lb / 6.1 kg |
15.1 lb / 6.8 kg |
|
Shipping Weight |
15.4 lb / 7 kg |
17 lb / 7.7 kg |
