OverviewThe UK series mechanical force gauges are dedicated compression or tension only instruments for use in confined spaces, or for permanent installation into a piece of equipment or machinery Quick Facts
Weight: 10.00 lb |
||||||||||||||

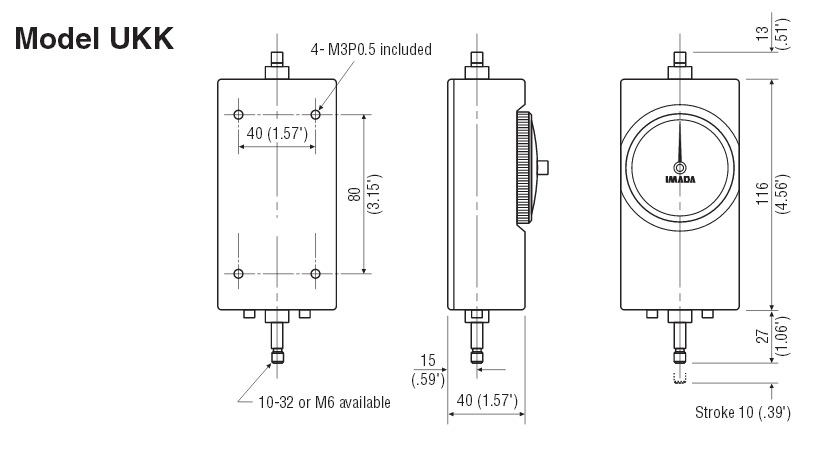

The Imada UK series mechanical force gauges are dedicated compression or tension instruments for use in confined spaces, or for permanent installation into a piece of equipment or machinery. Capacity x resolution: 5 x 0.05 lb The UK series mechanical force gauges are dedicated compression or tension only instruments for use in confined spaces, or for permanent installation into a piece of equipment or machinery. The specially designed dial will retain peak values while simultaneously displaying real time measurements. The threaded shaft will accept any of the standard FB/PS replacement measuring tips.
| Pounds | Kilograms | ||||||
|---|---|---|---|---|---|---|---|
| Compression | Tension | Compression | Tension | ||||
| UKK-5 | 5 x 0.05 lbf | UKT-5 | 5 x 0.05 lbf | UKK-3kg | 3 kgf x 25 gf | UKT-3kg | 3 kgf x 25 gf |
| UKK-10 | 10 x 0.10 lbf | UKT-10 | 10 x 0.10 lbf | UKK-5kg | 5 kgf x 50 gf | UKT-5kg | 5 kgf x 50 gf |
| UKK-20 | 20 x 0.20 lbf | UKT-20 | 20 x 0.20 lbf | UKK-10kg | 10 kgf x 100 gf | UKT-10kg | 10 kgf x 100 gf |
| UKK-30 | 30 x 0.25 lbf | UKT-30 | 30 x 0.25 lbf | UKK-20kg | 20 kgf x 200 gf | UKT-10kg | 20 kgf x 200 gf |
| UKK-50 | 50 x 0.5 lbf | UKT-50 | 50 x 0.5 lbf | UKK-30kg | 30 kgf x 250 gf | UKT-30kg | 30 kgf x 250 gf |
