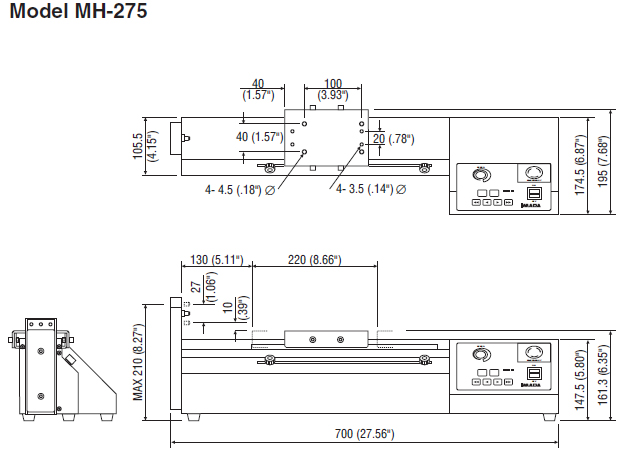

MH-275 without distance meter
MH-275S with distance meter
Maximum load 275 lbf

MH-275 motorized test stands offer advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

• One stand for both compression (push) and tension (pull) tests
• Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
• Jog, Single Cycle, Continuous Cycle (72 hour max.), Force Control Force Control operation with Imada Z Series force gauges
• Wide speed range: 0.3 – 7 in/min (optional speed ranges available)
• Stroke 9.5"
• Optional timer and digital distance meter
• Conditional Overload Prevention

Connect the MH-275 test stand with an Imada Series force gauge and enable force controlled testing and Conditional Overload Prevention.

High/Low Set Point Force Control - Force control is activated when the applied force is at or between the high and low set point(s) of the Z Series force gauge and is deactivated by the digital timer. Initial carriage speed is controlled by the variable or fixed speed settings.

One Way Force Control - Initial carriage speed is controlled by the variable or fixed speed settings. When the applied force reaches the low set point of the Z Series force gauge, the test stand’s carriage speed is adjusted to 20% of maximum and decreases to zero as the applied force reaches the high set point. Ideal for non-destructive testing.

Speed control, quick return and emergency stop are standard features. The MH-275 accepts any of the standard range Imada force gauges. Optional timer and digital distance meter available.

AP-002 Adapter Plate is available to mount most other force gauges to IMADA test stands.

Speed Configurations
Standard Speed	0.3~7"/min
Optional High Speed	0.6~15.7"/min
Optional Low Speed	0.2~4.2"/min
