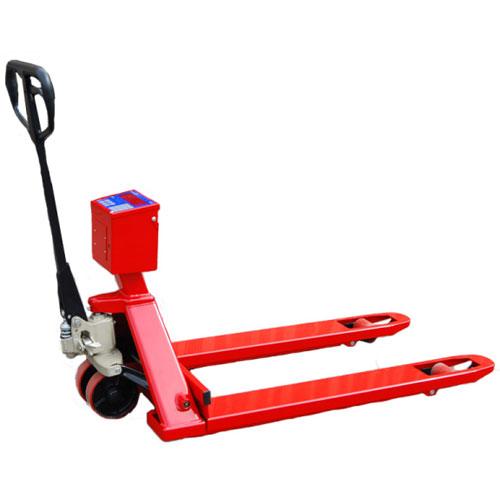

Intercomp 123000 PW800 Pallet Truck Scale Fork Size 27x48x2.9, 5000 x 1 lb

Intercomp Company, Inc. is the world's largest manufacturer of portable weighing solutions
The PW800 is the preferred choice because it integrates its load cells within the existing forks. The PW800 uses load cells which are certified by the U.S. National Institute of Standards and Technologies to provide +/- 0.1% accuracy. The industry’s highest standard capacity at 5,000 x 1 lb and lowest profile forks at 2.9 inches guarantees you can accurately and safely lift any conventional pallet. more ...
Industrial Scales > Pallet Scale > Pallet Jack Scales
Intercomp 123000 PW800 Pallet Truck Scale Fork Size 27x48x2.9, 5000 x 1 lb

View Full Detail Page


Call for more info
Download PDF
Intercomp 123000 PW800 Pallet Truck Scale Fork Size 27x48x2.9, 5000 x 1 lb

Price: $2,965.50


In Stock - Ships within 24 hours

Optional Accessories
Intercomp Part 140657 PDA Wireless Node - ZigBee for CW250, PW800 & PT300 Intercomp Part 140657 PDA Wireless Node - ZigBee for CW250, PW800 & PT300 , $445.50
Intercomp Part 000463 Transformer, Spare, 120 Volt Intercomp Part 000463 Transformer, Spare, 120 Volt , $83.00
Intercomp Part 330111-PW Battery Pack, qty. 1x3 D-Size - NiCad Intercomp Part 330111-PW Battery Pack, qty. 1x3 D-Size - NiCad , $243.00
Intercomp Part 330111 Battery Pack, qty. 1x3 D-Size - NiCad Intercomp Part 330111 Battery Pack, qty. 1x3 D-Size - NiCad , $81.00
Intercomp Part 123008 Mount, Install and Calibrate Customer Supplied Indicator Intercomp Part 123008 Mount, Install and Calibrate Customer Supplied Indicator , $625.50
Intercomp Part 123006 FM Approved Load Cells, Indicator & Battery Pack Intercomp Part 123006 FM Approved Load Cells, Indicator & Battery Pack , $3,146.00
Intercomp Part 123007 Steel Wheels - Two front rollers and rear wheel Intercomp Part 123007 Steel Wheels - Two front rollers and rear wheel , $625.50
Intercomp Part 123005 Brass Wheels - Two front rollers and rear wheel Intercomp Part 123005 Brass Wheels - Two front rollers and rear wheel , $1,796.00
Intercomp Part 100920 220 Volt charger (Qty 9 D-size NiCad batteries, circuit and harness included) Intercomp Part 100920 220 Volt charger (Qty 9 D-size NiCad batteries, circuit and harness included) , $336.24
Intercomp Part 100919 120 Volt charger (Qty 9 D-size NiCad batteries, circuit and harness included) Intercomp Part 100919 120 Volt charger (Qty 9 D-size NiCad batteries, circuit and harness included) , $318.24
Intercomp Battery operated tape printer for PW800 MUST BE ORDERED AT TIME OF SCALE PURCHASE Intercomp Battery operated tape printer for PW800 MUST BE ORDERED AT TIME OF SCALE PURCHASE , $715.50
Intercomp RS232C Serial data output - Required to work with printer for PW800 MUST BE ORDERED AT TIME OF SCALE PURCHASE Intercomp RS232C Serial data output - Required to work with printer for PW800 MUST BE ORDERED AT TIME OF SCALE PURCHASE , $175.50
Intercomp RS232C Serial data output - Required to work with printer for PW800 MUST BE ORDERED AT TIME OF SCALE PURCHASE Intercomp RS232C Serial data output - Required to work with printer for PW800 MUST BE ORDERED AT TIME OF SCALE PURCHASE , $175.50
Intercomp L.C.D. Display for PW800 Intercomp L.C.D. Display for PW800 , $288.00
Intercomp Part 100857 Charger, External, 120/220 V, for qty. 3X3 D-Size NiCad/NiMH Intercomp Part 100857 Charger, External, 120/220 V, for qty. 3X3 D-Size NiCad/NiMH , $400.50

View More Pictures
View Features

Intercomp
SKU: 123000

Features

This is the PW800 Model without the Indicator.

Virtually any production environment relies upon pallet trucks as an economical means of transporting goods in and around tight locations. Now let Intercomp provide you with another cost effective weigh on the go solution – the PW800 Pallet Truck Scale. As the world’s largest manufacturer of pallet truck scales, we offer the widest range of sizes and accessories for weighing and counting almost all types and sizes of pallets. Intrinsically safe units are available for explosive environments.

The PW800 is the preferred choice because it integrates its load cells within the existing forks. Other designs incorporate false forks thereby increasing the fork height, width, pallet truck weight and reducing accuracy. The PW800 uses load cells which are certified by the U.S. National Institute of Standards and Technologies to provide +/- 0.1% accuracy. The industry’s highest standard capacity at 5,000 x 1 lb and lowest profile forks at 2.9 inches guarantees you can accurately and safely lift any conventional pallet.

The unit maximizes run time by providing up to fifty hours of continuous use via D size commercially available rechargeable or alkaline batteries for easy and low cost replacement. Weights are clearly seen on a 0.8 inch high LED display while the membrane keypad provides functions for gross/net/tare as well as parts counting. All electronics are shock mounted and contained in a rugged durable enclosure. Standard fork sizes are 27 x 48 and 21 x 48 inches/ 685 x 1219 and 533 x 1219 mm.

  • Fast, low-cost parts counting & totalization for taking inventory
  • Accuracy of +- 0.1% which is better than most fork lift scales
  • Low-cost operation (9) D-cell batteries with up to 40 hour battery life
  • Quick verification of incoming/outgoing freight
  • Instant check of truck loading by weight
  • Multi-purpose mobile weighing
  • Large, easy-to-read 0.8 inch/ 20 mm LED display
  • Electric walkie retrofits

Specifications:

  • Robust and Accurate: 5,000 lb / 2,500 kg capacity and 1 lb / 0.5 kg increments.
  • Low-Cost Battery Options: Use (9) D-cell alkaline batteries (not included) for 40 hrs of weighing, Rechargeable Ni-Cad batteries (not included) or purchase optional internal rechargeable battery pack w/ charger (see below).
  • Advanced LED Dislay: 0.8 in display w/ Tare, Peak, Count and Accumulator features.
  • Auto Shut-Off: Battery saving feature shuts off after 5 minutes of non-use (adjustable up to 30 min.).
  • Reliable Construction: Features NTEP approved load cells and indicator. Note: Overall scale is NOT certified legal-for-trade.
  • Other Features: Optional RS232 serial output interface for printer/PC.
  • Wide Temperature Range : Operates from -4 to 140 degrees F
  • Warranty: 1 year factory limited warranty from Intercomp.

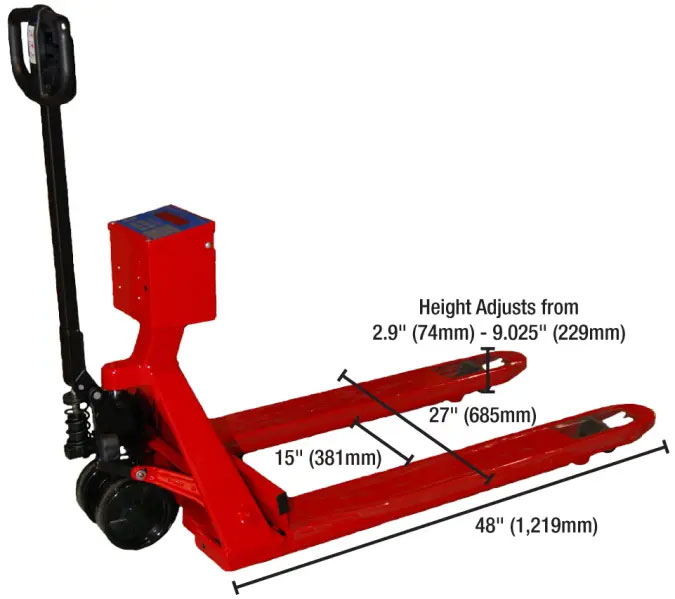

  • Two Fork Sizes: Choose standard 27 in. width or narrow 21 in. width.

PW800 Pallet Truck Scales
Model Description Capacity/Graduation Weight
123000 Fork Size 27x48x2.9" 5000 x 1 lb 300 lb
113000 Fork Size 21x48x2.9" 5000 x 1 lb 300 lb
122999 Fork Size 27x48x2.9" without indicator 5000 x 1 lb 300 lb
122998 Fork Size 21x48x2.9" without indicator 5000 x 1 lb 300 lb
