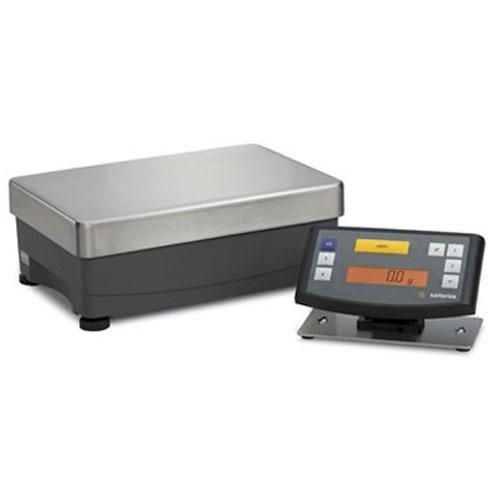

Sartorius PMA Power Explosion Proof Paint Mixing Scales |
Authorized Dealer |
If you do not want to make any compromises when mixing large amounts of paint, the new PMA.Power is the ideal solution. Its monolithic weigh cell featuring a resolution of 0.1 g and a weighing capacity extending up to 35 kg enables you to pour components quickly and accurately into relatively large paint cans.
|
Sartorius Scales >> Explosion Proof |
If you do not want to make any compromises when mixing large amounts of paint, the new PMA.Power is the ideal solution. Its monolithic weigh cell featuring a resolution of 0.1 g and a weighing capacity extending up to 35 kg enables you to pour components quickly and accurately into relatively large paint cans.
Thanks to its high resolution, you will also find it easy to pour in small amounts with total accuracy on the PMA.Power scale. This lets you save money by not having to buy a second scale.
- Large 14-segment display
- Scrolling text function
- Especially for mixing under tough ambient conditions
- Protected against overload
- Calculation by factor function (to mix fractional amounts)
- Recalculation function
- Standard serial interface port
Model |
PMP01P-XKR013 |
Price |
$7,503.20
|
Capacity x Readability |
35,000 x 0.1 g |
Explosion-proof |
Explosion-proof Class I, Div. 1 |
Power |
Safe Area Power Supply |
Temperature range |
0 – +40 °C |
Data interface |
RS232 |
Ex approval/zone |
Ex zone 1 |
Display |
Backlit 14-segment LCD |
IECEx |
Ex ia IIC T4 Gb |
Readability |
0.1 g |
Dust / water protection according to IEC 529 |
IP43 |
FM (USA) |
IS CL I, DIV 1, ABCD T4 | CL I, Zone 1, AEx ia IIC T4 |
FM (CAN) |
IS CL I, DIV 1, ABCD T4 | CL I, Zone 1, Ex ia IIC T4/td>
|
Interface port |
9-pin |
AC power source, power requirements/th>
| 100 - 240 V |
Calculation by factor function (to mix fractional amounts) |
0.25 - 25.0 |
AC power source, power requirements |
100 — 240 V~, -10 % / +10 % |
Power supply |
US/Japan |
Dimensions (WxDxH) |
350 × 240 × 132.5 mm |
Power consumption |
8 VA, max. 16 VA |
Max. overload capacity |
35,000 g |
Pan size |
350 x 240 mm |
Net weight, approx. |
11 kg |
Calibration weight |
10 kg, Class F2 or better |
|
