Combics provides support in all areas of your process chain, from manual formulations up to PC controlled production checks. The modular system allows tailor-made configuration of the individual components for each area. We also produce individual complete solutions according to your specific applications.
Combics IS-X models
IS-X models

Specifications Chart 6.8 to 660 lb

Call Sales 800-832-0055
Combics Stainless Steel Floor Models
Combics Stainless Steel Explosion Proof

Specifications Chart 15 to 200 lb

Specifications Chart 300 to 6000 lb

Combics provides support in all areas of your process chain, from manual formulations up to PC controlled production checks. The modular system allows tailor-made configuration of the individual components for each area. We also produce individual complete solutions according to your specific applications.

Based on the specific requirements of various industries and the basic legal conditions, Sartorius has developed intelligent solutions for all weighing applications, from incoming goods through to production on a large technical scale.

The new Combics 2 Ex Indicator therefore complies with all current international requirements for use in explosive areas. The following certificates are available: IECEx | ATEX Zone 1 | 21 | 2 | 22 and FM Class I, II, III Div. 1, 2.

The Combics series supports the production of high-quality, appealing and safe products.

    The unrivalled precision of Combics helps
  • control flexible production
  • reduce costs
  • improve product quality
  • raw materials to be used optimally
  • increase output

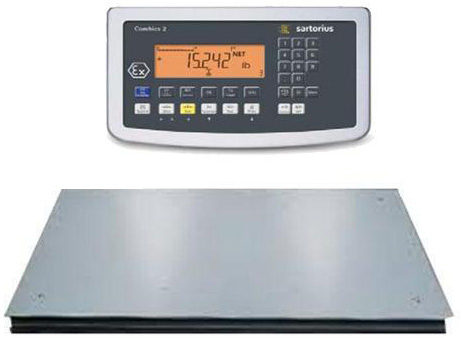

Minebea Combics 2
Explosion Proof Scales

FREE UPS Ground Shipping
(within the 48 continental US States)

Minebea YDC01SW Dust Cover (2 Units) for Combics Ex-Indicator
Minebea YDC01SW Dust Cover (2 Units) for Combics Ex-Indicator, add $86.40
Mounting Options
Minebea YDH03CISUS 43in Floor Mounted Column
Minebea YDH03CISUS 43in Floor Mounted Column, add $386.10
Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
Minebea YBP03CIS 4-leg Base For YDH03CISUS Column, add $262.80
Minebea YPP01CWS Printer stand for YDH03CISUS column
Minebea YPP01CWS Printer stand for YDH03CISUS column, add $274.50
Minebea YAS07CI Panel (Cabinet) Mount Kit
Minebea YAS07CI Panel (Cabinet) Mount Kit , add $360.90
Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series, add $104.40
Printer
Sartorius YDP20-0CE Strip Printer, with statistics, date, and time functions
Sartorius YDP20-0CE Strip Printer, with statistics, date, and time functions , add $1,206.90




6.8 to 660 lb IS-X models
Model CIXS2
ISXBBS-3-H
CIXS2
ISXBBS-6-H
CIXS2
IS16EDE-HX
CIXS2
IS34EDE-HX
CIXS2
IS64EDE-SX
CIXS2
S64EDE-HX
CIXS2
IS150IGG-HX
CIXS2
IS300IGG-HX
Price with Indicator and Hazardous Area Power * Minebea Combics 2 Stainle
$11,336.30
Minebea Combics 2 Stainle
$12,375.30
Minebea Combics 2 Explosi
$9,276.80
Minebea Combics 2 Explosi
$9,546.80
Minebea Combics 2 Explosi
$10,047.05
Minebea Combics 2 Explosi
$11,868.80
Minebea Combics 2 Explosi
$11,301.80
Minebea Combics 2 Explosi
$11,666.30
Price with Indicator and Safe Area Power (65 ft cable) Minebea Combics 2 Stainle
$10,253.10
Minebea Combics 2 Stainle
$11,292.10
Minebea Combics 2 Explosi
$8,193.60
Minebea Combics 2 Explosi
$8,463.60
Minebea Combics 2 Explosi
$8,963.85
Minebea Combics 2 Explosi
$10,785.60
Minebea Combics 2 Explosi
$10,218.60
Minebea Combics 2 Explosi
$10,583.10
Price for Platform Only Minebea ISXBBS-3-H Combic
$6,555.00
Minebea ISXBBS-6-H Combic
$7,594.00
Minebea IS16EDE-HX Combic
$4,495.50
Minebea IS34EDE-HX Combic
$4,765.50
Minebea IS64EDE-SX Combic
$5,265.75
Minebea IIS64EDE-HX Combi
$7,087.50
Minebea IS150IGG-HX Combi
$6,520.50
Minebea IS300IGG-HX Combi
$6,885.00
Capacity x Readability 6.8 x 0.00002 lb 13.5 x 0.00002 lb 35 x 0.0002 lb 75 x 0.0002 lb 141 x 0.002 lb 141 x 0.0002 lb 330 x 0.002 lb 660 x 0.005 lb
3.1 kg x 0.01 g 6.1 kg x 0.01 g 16 kg x 0.1 g 34 kg x 0.1 g 64 kg x 1 g 34 kg x 0.1 g 150 kg x 1 g 300 kg x 2 g
Pan Size 7.1" x 7.1" 7.1" x 7.1" 15.8" x 11.8" 15.8" x 11.8" 15.8" x 11.8" 15.8" x 11.8" 32" x 24" 32" x 24"
Base Design Stainless Steel Stainless Steel Painted Painted Painted Painted Painted Painted
Weighing Pan Stainless Steel Weighing Pan
Indicator CAIXS2 with 485 interface and Cable to IS-X

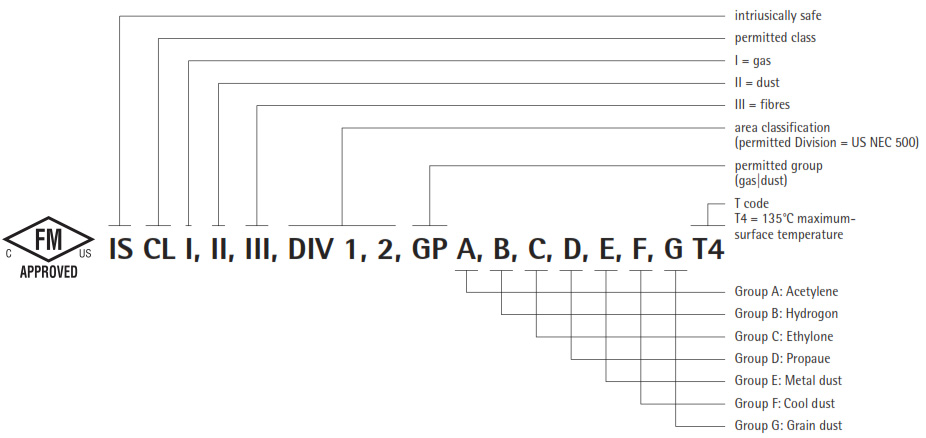

FM Approved Class 1,2,3,Division 1,Groups A,B,C,D,E,F.G,T4 More info
Base Interface RS485
Internal Calibration Optional and must be ordered with the unit and is not field installable
Power Requires single YPS02-XUR for hazardous area connection or YPS02-ZKR for safe area connection
* Hazardous area Power for USA only - for Canada Please Call (800)832-0055 or 718-336-5900

15 to 200 lb models
MODEL CIXS2 CAPXS1U-10CC-I CIXS2 CAPXS1U-20CC-I CIXS2 CAPXS1U-50CC-I CIXS2 CAPXS1U-50DD-I CIXS2 CAPXS1U-50EE-I CIXS2 CAPXS1U-100DD-I CIXS2 CAPXS1U-100EE-I CIXS2 CAPXS4U-100GG-I CIXS2 CAPXS4U-100HH-I CIXS2 CAPXS1U-200EE-I
Price with Indicator and Hazardous Area Power * Minebea Combics 2 Hazardo
$6,013.55
Minebea Combics 2 Hazardo
$5,965.85
Minebea Combics 2 Hazardo
$6,046.85
Minebea Combics 2 Hazardo
$6,138.65
Minebea Combics 2 Hazardo
$6,533.75
Minebea Combics 2 Hazardo
$6,171.05
Minebea Combics 2 Hazardo
$6,541.85
Minebea Combics 2 Hazardo
$10,564.85
Minebea Combics 2 Hazardo
$11,177.75
Minebea Combics 2 Hazardo
$6,586.85
Price with Indicator and Safe Area Power (65 ft cable) Minebea Combics 2 Safe Ar
$5,361.85
Minebea Combics 2 Safe Ar
$5,314.15
Minebea Combics 2 Safe Ar
$5,395.15
Minebea Combics 2 Safe Ar
$5,486.95
Minebea Combics 2 Safe Ar
$5,882.05
Minebea Combics 2 Safe Ar
$5,519.35
Minebea Combics 2 Safe Ar
$5,890.15
Minebea Combics 2 Safe Ar
$9,913.15
Minebea Combics 2 Safe Ar
$10,526.05
Minebea Combics 2 Safe Ar
$5,935.15
Price for Platform Only Minebea CAPXS1U-10CC-l Ex
$1,264.50
Minebea CAPXS1U-20CC-I Ex
$1,216.80
Minebea CAPXS1U-50CC-I Ex
$1,297.80
Minebea CAPXS1U-50DD-I Ex
$1,389.60
Minebea CAPXS1U-50EE-I Ex
$1,784.70
Minebea CAPXS1U-100DD-I E
$1,422.00
Minebea CAPXS1U-100EE-I E
$1,792.80
Minebea CAPXS4U-100GG-I E
$5,815.80
Minebea CAPXS4U-100HH-I E
$6,428.70
Minebea CAPXS1U-200EE-I E
$1,837.80
Capacity / Readability (Lbs.) 15 x 0.0005 lb 30 x 0.001 lb 60 x 0.002 lb 60 x 0.002 lb 60 x 0.002 lb 150 x 0.005 lb 150 x 0.005 lb 150 x 0.005 lb 150 x 0.005 lb 200 x 0.01 lb
Capacity / Readability (Kg.) 6 x 0.0002 kg 15 x 0.0005 kg 30 x 0.001 kg 30 x 0.001 kg 30 x 0.001 kg 60 x 0.002 kg 60 x 0.002 kg 60 x 0.002 kg 60 x 0.002 kg 100 x 0.005 kg
Dimension 10" x 10" 10” x 10” 10” x 10” 12” x 12” 18” x 18” 12" x 12" 18” x 18” 24” x 24” 30” x 30” 18” x 18”
Indicator Sartorius CAIXS2 Combics 2 Explosion- Proof Indicator
Stainless Steel Platform
IP Protection IP67
Platform Resolution 30,000d
Connecting Cable 10 ft 10 ft 10 ft 10 ft 10 ft 10 ft 10 ft 10 ft 10 ft 10 ft
FM Approved Class 1,2,3,Division 1,Groups A,B,C,D,E,F.G,T4 More info
Shipping Weight 16 lb 16 lb 16 lb 24 lb 62 lb 24 lb 62 lb 121 lb 187 lb 62 ft
* Hazardous area Power for USA only - for Canada Please Call (800)832-0055 or 718-336-5900



300 to 6000 lb models
MODEL CIXS2 CAPXS4U-250GG-I CIXS2 CAPXS4U-250HH-I CIXS2 CAPXS4U-500GG-I CIXS2 CAPXS4U-500HH-I CIXS2 CAPXS4U-1000HH-I CIXS2 CAPXS4U-1000KK-I CIXS2 CAPXS4U-1000NN-I CIXS2 CAPXS4U-2500KK-I CIXS2 CAPXS4U-2500NN-I CIXS2 CAPXS4U-5000KK-I CIXS2 CAPXS4U-5000NN-I
Price with Indicator and Hazardous area Power * Minebea Combics 2 Hazardo
$10,653.05
Minebea Combics 2 Hazardo
$11,177.75
Minebea Combics 2 Hazardo
$10,653.05
Minebea Combics 2 Hazardo
$11,177.75
Minebea Combics 2 Hazardo
$11,177.75
Minebea Combics 2 Hazardo
$12,660.95
Minebea Combics 2 Hazardo
$14,886.65
Minebea Combics 2 Hazardo
$12,660.95
Minebea Combics 2 Hazardo
$14,639.15
Minebea Combics 2 Hazardo
$12,660.95
Minebea Combics 2 Hazardo
$14,639.15
Price with Indicator and Safe Area Power (65 ft cable) Minebea Combics 2 Safe Ar
$10,001.35
Minebea Combics 2 Safe Ar
$10,526.05
Minebea Combics 2 Safe Ar
$10,001.35
Minebea Combics 2 Safe Ar
$10,526.05
Minebea Combics 2 Safe Ar
$10,526.05
Minebea Combics 2 Safe Ar
$12,009.25
Minebea Combics 2 Safe Ar
$14,234.95
Minebea Combics 2 Safe Ar
$12,009.25
Minebea Combics 2 Safe Ar
$13,987.45
Minebea Combics 2 Safe Ar
$12,009.25
Minebea Combics 2 Safe Ar
$13,987.45
Price for Platform Only Minebea CAPXS4U-250GG-I E
$5,904.00
Minebea CAPXS4U-250HH-I
$6,428.70
Minebea CAPXS4U-500GG-I E
$5,904.00
Minebea CAPXS4U-500HH-I E
$6,428.70
Minebea CAPXS4U-1000HH-I
$6,428.70
Minebea CAPXS4U-1000KK-I
$7,911.90
Minebea CAPXS4U-1000NN-I
$10,137.60
Minebea CAPXS4U-2500KK-I
$7,911.90
Minebea CAPXS4U-2500NN-I
$9,890.10
Minebea CAPXS4U-5000KK-I
$7,911.90
Minebea CAPXS4U-5000NN-I
$9,890.10
Capacity / Readability (Lbs.) 300 x 0.01 lb 300 x 0.01 lb 600 x 0.02 lb 600 x 0.02 lb 1500 x 0.05 lb 1500 x 0.05 lb 1500 x 0.05 lb 3000 x 0.1 lb 3000 x 0.1 lb 6000 x 0.2 lb 6000 x 0.2 lb
Capacity / Readability (Kg.) 150 x 0.005 kg 150 x 0.005 kg 300 x 0.01 kg 300 x 0.01 kg 600 x 0.02 kg 600 x 0.02 kg 600 x 0.02 kg 1500 x 0.05 kg 1500 x 0.05 kg 3000 x 0.1 kg 3000 x 0.1 kg
Dimension 24" x 24" 30” x 30” 24” x 24” 30” x 30” 30” x 30” 36" x 36" 48” x 48” 36” x 36” 48” x 48” 36” x 36” 48” x 48”
Indicator Sartorius CAIXS2 Combics 2 Explosion- Proof Indicator
Stainless Steel Platform
IP Protection IP67
Platform Resolution 30,000d
Connecting Cable 10 ft 10 ft 10 ft 10 ft 10 ft 20 ft 20 ft 20 ft 20 ft 20 ft 20 ft
FM Approved Class 1,2,3,Division 1,Groups A,B,C,D,E,F.G,T4 More info
Shipping Weight 121 lb 187 lb 121 lb 187 lb 187 lb 250 lb 390 lb 250 lb 390 lb 250 ft 390 ft
* Hazardous area Power for USA only - for Canada Please Call (800)832-0055 or 718-336-5900

A design made for longevity and flexibility stands for reliability. The hygienic design of our solutions complies with today’s extremely important hygiene regulations without compromise. The devices can be cleaned very easily and thus allow Combics to be used even under tough conditions and with high safety standards.

The materials and surfaces used significantly contribute to minimizing contamination risks. All Combics scales meet EHEDG specifications

  • For use in explosive areas (certificates: IECEx | ATEX Zone 1 | 2 | 21 | 22 and FM Class I, II, III Div. 1)
  • Display LCD, 20mm, 14-segments, 7 digit Weight Value with status information, back lit
  • Housing in stainless steel,– Scale connection for analogue Ex platforms, as e.g. Combics Ex, IU EX, IF EX or Ex load cells Optional also digital IS Scales (xBPI)
  • Internal alibi memory
  • Serial Interface RS232
  • Div. Power Supplies available, also battery pack
    Combics 2 Ex offers a wide range of applications:
  • SQ Min (minimum sample weight)
  • Comprehensive functions for printing and formatting labels
  • Counting
  • Checkweighing
  • Totalizing
  • Formulation
  • Classification

The easy to operate concept, in combination with the clearly labeled keys, helps prevent errors and makes it simpler for new users to learn how to use the scales.

Moreover large data volumes can be stored on the device itself, thanks to an internal product memory.

Combics 2 Ex is always the perfect choice when working in explosive production environments.

General technical data
Material Stainless steel 1.4301
Data interfaces RS232 Can be switched to RS485 or RS422
Supply voltage Via external power supply Connection via 14-pin round socket (20 cm cable)

Within hazardous area:
ATEX: YPSC01-X
FM (US): YPS02-XUR
CSA: YPS02-XKR

Outside hazardous area:
ATEX: YPSC01-Z
FM | CSA: YPS02-ZKR

Battery operation
Via external battery YRB02-X
ATEX | FM | CSA

Scale Connection
Optional: digital scale interface RS485
or RS232 to connect XBPI Scales like
IS-Ex platforms or Signum Ex Scales
Combics 2 supports 1 Weighing Point (Scale)
Standard: A | D-converter

The technical data specified above only serve to describe the product and are not intended to be legally binding characteristics.
Resolution (not verified) smallest usable signal: 0.2 µV/d
Preload Up to 100 % of weighing area
Load Cell Supply 8.4 V
Load Impedance 83 ohms to 2,000 ohms
Measuring Signal 0 mV to 29.4 mV
Measuring Signal for Dead Load 0.45 mV to 6.3 mV
Internal alibi memory 130,000 data records
Hazardous area certification
ATEX | IECEx:
II 2G Ex ia IIC T4 Gb
II 2D Ex ia IIIC T80°C Db

FM | CSA:
USA:
IS CL I,II,III DIV 1 GP A,B,C,D,E,F,G T4
CL I, Zone 1 AEx ia IIC T4
Cl II, Zone 21 AEx ia IIIC T80°C

Canada:
Ex ia CL I,II,III, DIV 1 GP A,B,C,D,E,F,G T4
CL I, Zone 1, Ex ia IIC T4
Humidity 85% rel. (non-condensing) up to 31°C; 50% rel. 40°C
Use at an altitude above sea level Up to 2,000 m; inside
IP protection IP69K
Ambient temperature -10°C to +40°C
Transient emissions In compliance with EN 61326-1, Class B (IEC 61326-1)
Electrical safety In compliance with EN 61010-1 (IEC 61010-1)
Interference resistance In compliance with EN 61326-1 Industrial areas (IEC 61326-1)
Application Combics 2 Ex
Keyboard 28 keys
Display 14 sectors 20 mm weighing value displayplus application symbols
Weighing YES
Data transfer to printer | PC YES
ISO test YES
Counting YES
Percentage weighing YES
Averaging YES
Checkweighing YES
Totalizing YES
Combination of 3 applications YES
Weighing and counting to target value (from memory) YES
SQ Min (minimum sample weight) YES
Identifier (4 + 40 characters) YES
Product data memory YES
Date | Time YES
Bulk counter connection YES
Internal alibi memory YES










Your account Search Contact Us Store Directory Home page Your account Contact Us Search our site Site map and product categories
×
Phone Myaccount cart home Home
