AND Weighing AD-4212B Series Production Weighing Systems AND Weighing

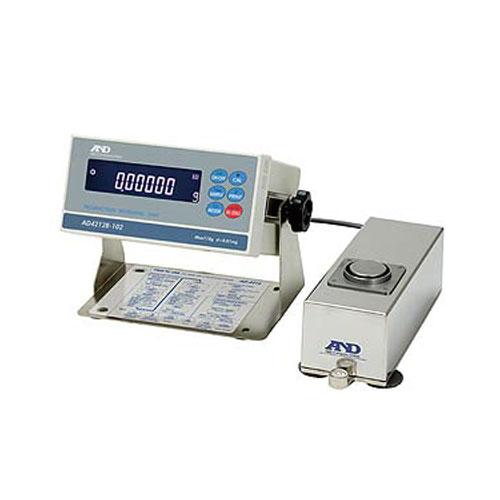

AND Weighing AD-4212B Series Production Weighing Systems
AND Weighing AD-4212B Series Production Weighing Systems

Specifications Chart

Our SHS* (Super Hybrid Sensor) now enters into the realm of semi-micro (0.01mg) balances.
What is your application? Filling capsules with medicines? Monitoring the volume of battery liquid? Or perhaps controlling the amount of resistor ink for semiconductors? Whatever it may be, if you require a high-speed, precise weighing system and are looking for a way to improve productivity and reduce costs, the AD-4212B series is definitely the best solution.

Compact

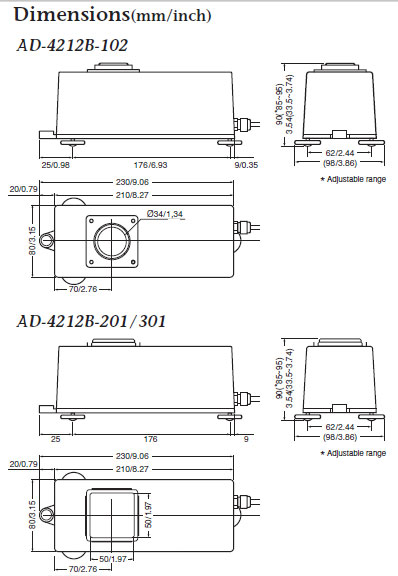

Slim separate weighing sensor unit (80mm width) for compact alignment

Precise
Semi-micro, 0.01mg weighing in a production line (AD-4212B-102)

Fast
Just 4.0 seconds for 0.01mg weighing sensitivity

Durable
Chemically resistant, stainless steel (SUS304) + IP54 weighing sensor unit

Extensive Communication Functions

Standard I/O:
RS-232C interface 5-level comparator contact output with buzzer

Optional I/O:
LAN-Ethernet interface (AD4212A-08) with WinCT-Plus Software BCD output / External contact input (AD4212A-01)

The RE-ZERO and PRINT keys can be controlled externally.

A free copy of Windows Communication Tools Software (WinCT) is provided.

Shock Absorber Function*

The internal shock absorber protects the mass sensor from the adverse effects of vertical or transverse overloading. *Patent approved

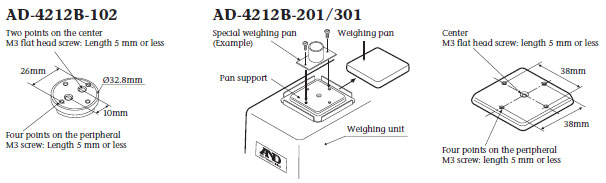

Design a Special Weighing Pan

The standard weighing pan and pan support can be removed to install a weighing pan of your own design for a specific purpose.

AND Weighing AD-4212B Series

Model


AND AD-1683 Static Eliminator, add $1,040.25

AND Weighing AD-8127 Compact Multi-Function Printer, add $695.00




Product Features

  • High Resolution with Fast Response
  • Compact Weighing Sensor can be placed anywhere in the production line
  • Dust & Splash-Proof protection of keyboard and display complies with IP-54
  • Standard RS-232C interface and WinCT Software for easy data collection
  • Owner`s Manuals
Model AD-4212B-102 AD-4212B-201 AD-4212B-301
Price $7,690.25
buy now
$6,046.75
buy now
$6,588.25
buy now
Weighing capacity 110 g 210 g 310 g
Minimum weighing value 0.01 mg 0.1 mg
Stabilization time (Typical) Approx. 4.0 sec Approx. 2.5 sec
Repeatability (Standard deviation) 0-30 g: 0.02 mg / 30-100 g: 0.04 mg 0.1 mg 0.2 mg
Linearity ±0.1 mg ±0.2 mg ±0.3 mg
Sensitivity drift (10 °C to 30 °C) ±2 ppm/ °C
Weighing pan 34 mm (diameter) 50 mm × 50 mm
Display refresh rate 10 times/second (5 times/second can be selected)
Connection cable Approx. 2m (between weighing unit and display unit)
Power supply AC adaptor
Power consumption Approx. 11VA (supplied to the AD adaptor)
