MSI-7300 Dyna-Link 2 Dynamometer MSI
Authorized Dealer
Dyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby® shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 RF Remote Display. Longrange viewing is enhanced by a large five-digit, 1.22 inch (31 mm) LCD with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.

MSI-7300 Dynamometers
shackles not included
Bluetooth and WiFI Models
will NOT work with any MSI Remote Displays

Specifications Chart

Dyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby® shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 RF Remote Display. Longrange viewing is enhanced by a large five-digit, 1.22 inch (31 mm) LCD with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.

Dyna-Link 2 is constructed of high-grade, aircraft-quality aluminum with an anodized finish and gasket sealing to ensure NEMA 4/IP65 rated environmental protection.

Peak digital processing with low power consumption provides up to 300 hours of operation from standard common batteries during typical use. The optional MSI-8000 RF Remote Display provides full-function remote control of Dyna-Link 2 features up to distances of 100 feet (30 m). An integrated serial port offers interface capabilities with data collection devices.

Industrys most advanced digital tension dynamometer, the new and improved MSI-7300, provides even more features and benefits than earlier dynamometer models. The new Dyna-Link 2 offers a lightweight, portable design for better handling, and superior viewing with its large 1.2 inch display. Choose from capacities ranging from 0.5 to 300 tons.

Standard Features
  • Five-digit 1.22 in. (31 mm) LCD display
  • NEMA4/IP65 enclosure for use in all environments
  • 200% safe loading, 500% ultimate loading integrity
  • Crosby compatible shackle interface
  • Multi-feature programming and I/O connectivity
  • Two each "C" alkaline batteries for capacities up to 10,000 lb (5,000 kg)
  • Two each "D" batteries for capacities 25,000 lb (12,500 kg) and above
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (7:1 Ultimate Safety Factor)
Options and Accessories
  • RF modem link for wireless connectivity with optional MSI-8000 RF Remote Display (Bluetooth and WiFI it will not work)
  • Enhanced display resolution (5000 d)
  • Audible setpoint alarm
  • Crosby top & bottom shackles
  • Portable transport case
  • Serial output cable
  • Heavy capacity configurations (60 to 275 tons)
Bluetooth and WiFI Models will NOT work with any MSI Remote Displays
Please contact us for informtion about connectimg your Bluetooth or WiFI enabled devices to the MSI-7300 sales@scalesgalore.com or 718-336-5900
MSI-7300 Dyna-Link 2 Dynamometer


MSI 503414-0002 RS-232 Serial Cable for MSI-7300, add $112.50

MSI 151357 Shackle Anchor 3.25 Ton Bolt Type for 500-5000 lb cap unit, add $40.00

MSI 151355 Shackle Anchor 6.5 Ton Bolt Type for 10000 lb cap unit, add $82.50

MSI 141992 Shackle Anchor 17 Ton Bolt Type for 30000 lb cap unit, add $325.00

MSI 151356 Shackle Anchor 25 Ton Bolt Type for 50000 lb cap unit, add $512.50

MSI 146336 Shackle Anchor 55 Ton Bolt Type for upto 100000 lb cap unit, add $1,247.50

MSI 139483 Carry Case With Foam. For Use With 1k-10k MSI-7300 Dyna Link 2 Digital Tension Dynamometers , add $125.00

MSI 145076 Transport Case For Use With 25k And 50k MSI-7300 Dyna Link 2 Digital Tension Dynamometers , add $350.00

MSI 145073 Shipping Crate For Use With 100k MSI-7300 Dyna Link 2 Digital Tension Dynamometers , add $350.00
For Wireless Ready Models Only
(Standard ,Bluetooth and WiFI will not work)

MSI 139381 MSI-8000 RF Remote Display for MSI-4260 and MSI-7300, add $985.50

MSI 153591 MSI-8000HD RF Remote Display for MSI-4260 and MSI-7300, add $1,098.00

MSI 162889 red LED 4 inch 6 digit displayScoreboard 7001 RF (TranSend), add $1,975.50

MSI 162897 red LED 6 inch 6 digit displayScoreboard 7001 RF (TranSend), add $2,385.00

MSI 162900 Green LED 4 inch 6 digit displayScoreboard 7001 RF (TranSend), add $1,975.50

MSI 162898 Green LED 6 inch 6 digit displayScoreboard 7001 RF (TranSend), add $2,385.00

Specifications Chart

Standard models 502967-0001 502967-0002 502967-0003 502967-0004 502967-0005 502967-0006 502967-0007 - - - - -
MSI 502967-0001 MSI-7300
$1,255.50
buy now
MSI 502967-0002 MSI-7300
$1,255.50
buy now
MSI 502967-0003 MSI-7300
$1,255.50
buy now
MSI 502967-0004 MSI-7300
$1,345.50
buy now
MSI 502967-0005 MSI-7300
$1,795.50
buy now
MSI 502967-0006 MSI-7300
$2,335.50
buy now
MSI 502967-0007 MSI-7300
$3,055.50
buy now
- - - - -
models with wireless connectivity 503381-0001 503381-0002 503381-0003 503381-0004 503381-0005 503381-0006 503381-0007 159168
MSI-8000
Included
159169
MSI-8000
Included
159170
MSI-8000
Included
159171
MSI-8000
Included
159172
MSI-8000
Included
MSI 503381-0001 MSI-7300
$1,413.00
buy now
MSI 503381-0002 MSI-7300
$1,413.00
buy now
MSI 503381-0003 MSI-7300
$1,413.00
buy now
MSI 503381-0004 MSI-7300
$1,503.00
buy now
MSI 503381-0005 MSI-7300
$1,953.00
buy now
MSI 503381-0006 MSI-7300
$2,493.00
buy now
MSI 503381-0007 MSI-7300
$3,213.00
buy now
MSI 159168 MSI-7300 Dyna-
$4,135.50
buy now
MSI 159169 MSI-7300 Dyna-
$6,295.50
buy now
MSI 159170 MSI-7300 Dyna-
$8,415.00
buy now
MSI 159171 MSI-7300 Dyna-
$9,535.50
buy now
MSI 159172 MSI-7300 Dyna-
$17,995.50
buy now
models with Built-In Bluetooth® RF 176806 176807 176808 176809 176810 176811 176812 176822 176823 176824 176825 176826
Bluetooth and WiFI Models will NOT work with any MSI Remote Displays
MSI 176806 MSI-7300 Dyna-
$1,435.50
buy now
MSI 176807 MSI-7300 Dyna-
$1,435.50
buy now
MSI 176808 MSI-7300 Dyna-
$1,435.50
buy now
MSI 176809 MSI-7300 Dyna-
$1,534.50
buy now
MSI 176810 MSI-7300 Dyna-
$1,989.00
buy now
MSI 176811 MSI-7300 Dyna-
$2,092.50
buy now
MSI 176812 MSI-7300 Dyna-
$3,276.00
buy now
MSI 176822 MSI-7300 Dyna-
$4,216.50
buy now
MSI 176823 MSI-7300 Dyna-
$6,421.50
buy now
MSI 176824 MSI-7300 Dyna-
$8,581.50
buy now
MSI176825 MSI-7300 Dyna-L
$9,724.50
buy now
MSI 176826 MSI-7300 Dyna-
$1,795.50
buy now
models with Built-In WiFi RF 176813 176814 176815 176816 176817 176818 176819 176827 176828 176829 176830 176831
Bluetooth and WiFI Models will NOT work with any MSI Remote Displays
MSI 176813 MSI-7300 Dyna-
$1,435.50
buy now
MSI 176814 MSI-7300 Dyna-
$1,435.50
buy now
MSI 176815 MSI-7300 Dyna-
$1,435.50
buy now
MSI 176816 MSI-7300 Dyna-
$1,534.50
buy now
MSI 176817 MSI-7300 Dyna-
$1,989.00
buy now
MSI 176818 MSI-7300 Dyna-
$2,092.50
buy now
MSI 176819 MSI-7300 Dyna-
$3,276.00
buy now
MSI 176827 MSI-7300 Dyna-
$4,216.50
buy now
MSI 176828 MSI-7300 Dyna-
$6,421.50
buy now
MSI 176829 MSI-7300 Dyna-
$8,581.50
buy now
MSI176830 MSI-7300 Dyna-L
$9,724.50
buy now
MSI 176831 MSI-7300 Dyna-
$17,995.50
buy now
Capacity x Readability 1000 x 0.5 lb 2500 x 1.0 lb 5000 x 2.0 lb 10,000 x 5.0 lb 25,000 x 10.0 lb 50,000 x 20 lb 100,000 x 50 lb 120,000 x 50 lb 180,000 x 100 lb 260,000 x 100 lb 380,000 x 200 lb 550,000 x 200 lb
500 x 0.2 kg 1250 x 0.5 kg 2500 x 1.0 kg 5000 x 2.0 kg 12,500 x 5.0 kg 25,000 x 10 kg 50,000 x 20 kg 60,000 x 20 kg 90,000 x 50 kg 130,000 x 50 kg 190,000 x 100 kg 275,000 x 100 kg
Accuracy 0.1% of rated capacity
Enclosure NEMA 4, IP65, anodized corrosion-resistant finish
Material 2024 aircraft grade aluminum
Design Overload 200% Safe / 700% Ultimate* (except where noted) 200% Safe / 500% Ultimate 200% Safe / 440% Ultimate
Functions On/Off, Zero, Hi-Speed Peak Hold, Setpoints, Total, Tare, Auto-Off, Motion Filter
Display Five-digit, 1.22 in (31 mm) LCD
Displayable Units Pounds, Kilograms, Kilonewtons, Tons, Metric Tons
Pounds, Kilograms, Kilonewtons, Tons, Metric Tons Function 1, Function 2, Setpoint 1, Setpoint 2
LCD Annunciators LCD Annunciators
Two each “C” alkaline batteries for capacities up to 10,000 lb
Two each “D” alkaline batteries for capacities 25,000–100,000 lb
Operating Time From 150 to 300 hours in typical use depending on unit capacity and battery configuration. Less with optional RF modem link installed
Operating Temperature -4°F to 130°F (-20°C to 54°C)
Calibration Digital
Filtering OFF, LO, HI selectable
Data Output Serial RS-232

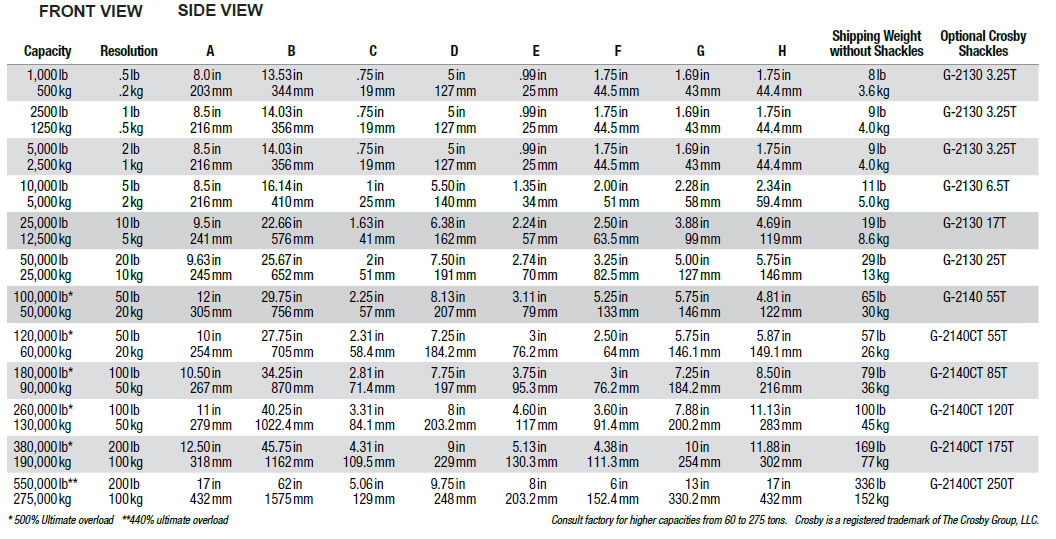

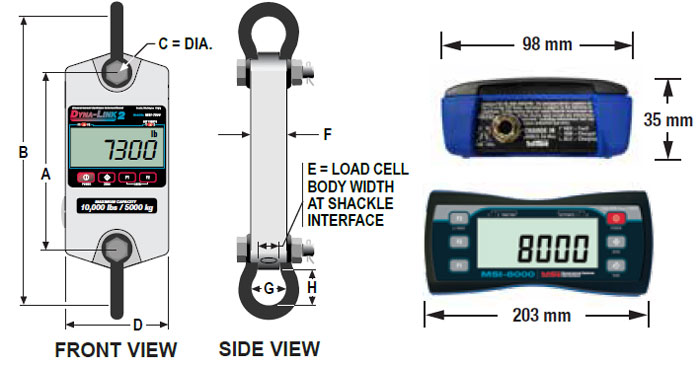

dims
dims

Models with wireless connectivity 152794 152795 152796 152797 152798
MSI 152794 MSI-7300 Dyna-
$4,135.50
buy now
MSI 152795 MSI-7300 Dyna-
$6,295.50
buy now
MSI 152796 MSI-7300 Dyna-
$8,415.00
buy now
MSI 152797 MSI-7300 Dyna-
$9,535.50
buy now
MSI 152798 MSI-7300 Dyna-
$17,995.50
buy now
Capacity x Readability 120,000 x 50 lb 180,000 x 100 lb 260,000 x 100 lb 380,000 x 200 lb 550,000 x 200 lb
60,000 x 20 kg 90,000 x 50 kg 130,000 x 50 kg 190,000 x 100 kg 275,000 x 100 kg
Accuracy 0.1% of rated capacity
Enclosure NEMA 4, IP65, anodized corrosion-resistant finish
Material 2024 aircraft grade aluminum
Design Overload 200% Safe / 500% Ultimate* (except where noted)
Functions On/Off, Zero, Hi-Speed Peak Hold, Setpoints, Total, Tare, Auto-Off, Motion Filter
Display Five-digit, 1.22 in (31 mm) LCD
Displayable Units Pounds, Kilograms, Kilonewtons, Tons, Metric Tons
Pounds, Kilograms, Kilonewtons, Tons, Metric Tons Function 1, Function 2, Setpoint 1, Setpoint 2
LCD Annunciators LCD Annunciators
Two each “C” alkaline batteries for capacities up to 10,000 lb
Two each “D” alkaline batteries for capacities 25,000–550,000 lb
Operating Time From 150 to 300 hours in typical use depending on unit capacity and battery configuration. Less with optional RF modem link installed
Operating Temperature -4°F to 130°F (-20°C to 54°C)
Calibration Digital
Filtering OFF, LO, HI selectable
Data Output Serial RS-232
