OverviewThe FI-521 is a bi-directional load cell instrument accepting both positive and negative load cell signals, internally performing the analog to digital conversion at 80 times per second. The FI-521 Indicator features an IP65 stainless steel enclosure for reliable performance in wet or dusty environments. I
|
||||||

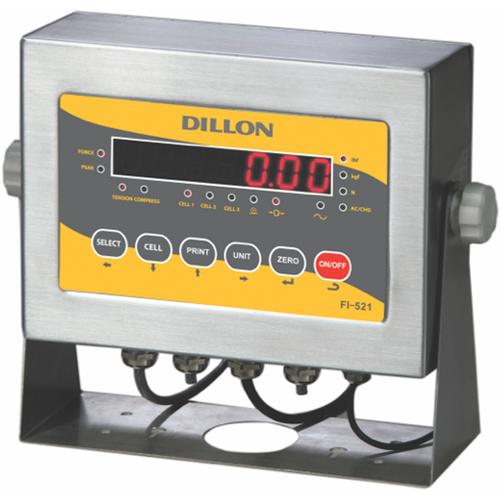

The FI-521 is a bi-directional load cell instrument accepting both positive and negative load cell signals, internally performing the analog to digital conversion at 80 times per second. The FI-521 Indicator features an IP65 stainless steel enclosure for reliable performance in wet or dusty environments. Included swivel mounting bracket allows for wall or bench mounting. Watertight connections include the AC power cable, 7-pin load cell quick disconnect cable connector and three additional cable ports. The instrument’s 6 key front panel enables all setup, configuration and calibration procedures. FI-521’s calibration procedures include a multi-point calibration feature for correcting the performance of non-linear load cells. The indicator has memory to store calibration information for up to three load cells.
The FI-521 can store peak and first peak values at 80 Hz. Operators can track stored data using date/time information and a 6-digit ID number. The stored data can then be printed or sent to a PC or other device using programmable print and data output formats. The FI-521’s four logic level inputs and the bi-directional serial port can receive control commands from external devices. The instrument can control external devices via any of the two standard cutoff outputs. Also, has on board an analog output that is fully calibrated for 0 to 2.5 VDC.
| FI-521 | |
|---|---|
| Power Supply | Input 100 - 240 VAC, 50 - 60Hz internal mounted power supply with output of 12VDC at 2 amps |
| Display | 7 digits, 7-segment, 0.7” (17 mm) ultra-bright LEDs with 14 annunciators. Max display range -999,999 to 999,999. Display update rate 10Hz. |
| Keypad | 6 push buttons; select, cell, print, unit, zero, on/off |
| Working Temperature | -10o C to 40o C (14o F to 10o F) |
| Storage Temperature | -20o C to 70o C (-4o F to 158o F) |
| Humidity | 10 to 90% RH without condensation |
| Protection | IP65 |
| Load Cell Drive Capacities |
Excitation Voltage: 5VDC Capacity: Drives up to eight 350-ohm load cells Signal Connection: 4 or 6 lead load cells Load Cell Input Range: -15mV to +15mV Max Load Cell Output: 3mV/V |
| Communication |
Serial Port 1: Full-duplex RS-232 Serial Port 2: Full-duplex RS-232 or half-duplex RS485 Baud Rate: Selectable 1200-2400-4800-9600-19200/38400-57600 bps Data Output Format: 8N1, 7O1, 7E1 Serial Output: Select up to 14 additional data parameters RS-485: 0-5VDC Analog Output: 0 to 2.5VDC (. 2.5mA) Remote Input: Select,cell, print, unit, zero, off Setpoint 1 & 2: 5 to 24VDC (.5A max) external, 5 to 8VDC (. .1A) internal |
| Analog Circuit Characters |
24-bit A/D converter A/D Conversion Speed: Peak Force 80Hz; Live Force 10Hz A/D Conversion: 1mV input will output 100,000 raw counts. Hardware: low pass fi lter and two programmable digital low pass filters Max Display Range: -999,999 to 999,999 Division Number Range: 100,000 divisions |
| Real Clock | Built-in nonvolatile real time & date |
| Other Main Functions |
Programmable Zero Range Programmable automatic zero point tracking Programmable motion detection window Programmable auto-power off time Adjustable LED brightness Units of Measure: kgf, lbf, Newton Confi gurable serial output content Two set point output with two data comparison points |
| Product Code | AWT05-506170 |
| call for Options | PCs, printers, remote displays |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
