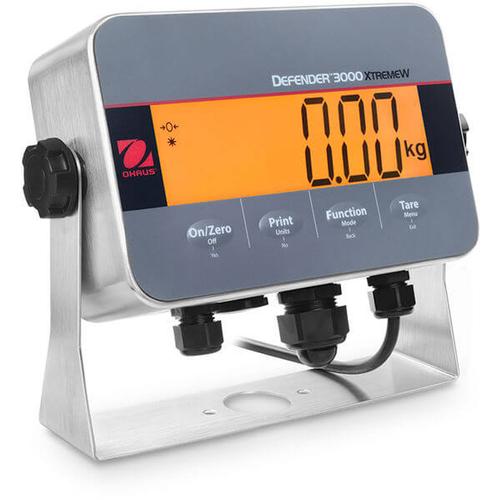

OverviewThe i-DT33XW from OHAUS combines the functionality of the i-DT33P with a rugged stainless steel IP66-rated housing for washdown protection in wet or dusty environments. Ideal for food processing, manufacturing, and harsh industrial conditions, the i-DT33XW offers the same weighing, counting, and checkweighing features in a more durable, sealed enclosure.
|
||||||
The i-DT33XW from OHAUS combines the functionality of the i-DT33P with a rugged stainless steel IP66-rated housing for washdown protection in wet or dusty environments. Ideal for food processing, manufacturing, and harsh industrial conditions, the i-DT33XW offers the same weighing, counting, and checkweighing features in a more durable, sealed enclosure.OHAUS INDICATOR – i-DT33XW
| TD52XW | i-DT33P | i-DT33XW | |
|---|---|---|---|
| Housing | 304 Stainless Steel | ABS Plastic | 304 Stainless Steel |
| Ingress Protection | IP68 / NEMA 4X | Not specified | IP66 |
| Display | Dot Matrix LCD, 256 × 80 pixels | 7-segment Multicolor Backlit LCD | 7-segment Multicolor Backlit LCD |
| Max Displayed Resolution | 75,000d (Certified 10,000d) | 30,000d (Certified 6,000d) | 30,000d (Certified 6,000d) |
| Application Modes | Weighing, Counting, Percent Weighing, Checkweighing, Dynamic Weighing, Display Hold | Weighing, Counting, Checkweighing, Totalization | Weighing, Counting, Checkweighing, Totalization |
| Power Options | AC Adapter (included), Optional Rechargeable Battery | AC Adapter, Optional C-cell Batteries or Rechargeable Battery | AC Adapter, Optional Rechargeable Battery |
| Battery Life | Up to 20 hours (rechargeable) | Up to 100 hours | Up to 100 hours |
| Interfaces | Standard RS232, Optional Ethernet, USB Host/Device, RS485, Analog Output, Discrete I/O | Standard RS232, Optional USB/Ethernet | Standard RS232, Optional USB/Ethernet |
| Working Environment | 14°F to 104°F (–10°C to 40°C) | 14°F to 104°F (–10°C to 40°C) | 14°F to 104°F (–10°C to 40°C) |

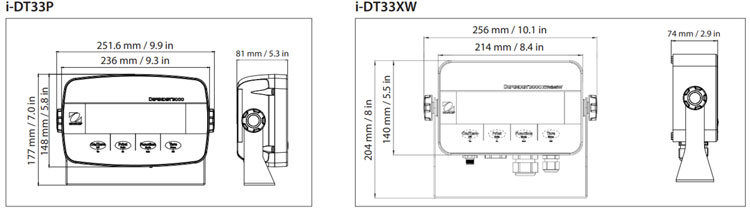

| Dimensions (L × W × H) | 11.1 × 3.4 × 9.1 in (283 × 86 × 232 mm) | 9.9 × 5.3 × 7.0 in (251.6 × 177 × 81 mm) | 10.1 × 2.9 × 8.0 in (256 × 74 × 204 mm) |
| Net Weight | 4.4 lb (2 kg) | 3.1 lb (1.4 kg) | 6.6 lb (3 kg) |
