| The i-DT33P from OHAUS is a durable, user-friendly ABS plastic indicator designed for basic industrial weighing tasks. It offers essential features such as weighing, counting, checkweighing, and totalization, and is approved by NTEP and Measurement Canada for legal-for-trade applications. Its compact design, long battery life, and straightforward interface make it ideal for general-purpose use in dry environments. more ... |
| Industrial Scales > Indicators > Indicators | ||||||
|
||||||
OverviewThe i-DT33P from OHAUS is a durable, user-friendly ABS plastic indicator designed for basic industrial weighing tasks. It offers essential features such as weighing, counting, checkweighing, and totalization, and is approved by NTEP and Measurement Canada for legal-for-trade applications. Its compact design, long battery life, and straightforward interface make it ideal for general-purpose use in dry environments.
|
||||||
The i-DT33P from OHAUS is a durable, user-friendly ABS plastic indicator designed for basic industrial weighing tasks. It offers essential features such as weighing, counting, checkweighing, and totalization, and is approved by NTEP and Measurement Canada for legal-for-trade applications. Its compact design, long battery life, and straightforward interface make it ideal for general-purpose use in dry environments.OHAUS INDICATOR – i-DT33P
| TD52XW | i-DT33P | i-DT33XW | |
|---|---|---|---|
| Housing | 304 Stainless Steel | ABS Plastic | 304 Stainless Steel |
| Ingress Protection | IP68 / NEMA 4X | Not specified | IP66 |
| Display | Dot Matrix LCD, 256 × 80 pixels | 7-segment Multicolor Backlit LCD | 7-segment Multicolor Backlit LCD |
| Max Displayed Resolution | 75,000d (Certified 10,000d) | 30,000d (Certified 6,000d) | 30,000d (Certified 6,000d) |
| Application Modes | Weighing, Counting, Percent Weighing, Checkweighing, Dynamic Weighing, Display Hold | Weighing, Counting, Checkweighing, Totalization | Weighing, Counting, Checkweighing, Totalization |
| Power Options | AC Adapter (included), Optional Rechargeable Battery | AC Adapter, Optional C-cell Batteries or Rechargeable Battery | AC Adapter, Optional Rechargeable Battery |
| Battery Life | Up to 20 hours (rechargeable) | Up to 100 hours | Up to 100 hours |
| Interfaces | Standard RS232, Optional Ethernet, USB Host/Device, RS485, Analog Output, Discrete I/O | Standard RS232, Optional USB/Ethernet | Standard RS232, Optional USB/Ethernet |
| Working Environment | 14°F to 104°F (–10°C to 40°C) | 14°F to 104°F (–10°C to 40°C) | 14°F to 104°F (–10°C to 40°C) |

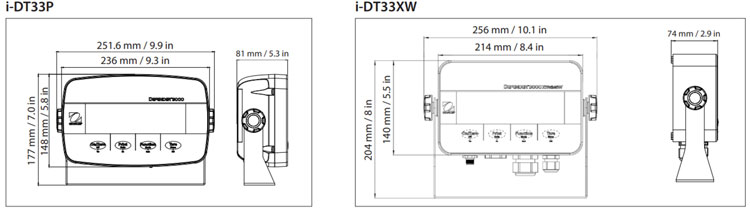

| Dimensions (L × W × H) | 11.1 × 3.4 × 9.1 in (283 × 86 × 232 mm) | 9.9 × 5.3 × 7.0 in (251.6 × 177 × 81 mm) | 10.1 × 2.9 × 8.0 in (256 × 74 × 204 mm) |
| Net Weight | 4.4 lb (2 kg) | 3.1 lb (1.4 kg) | 6.6 lb (3 kg) |
