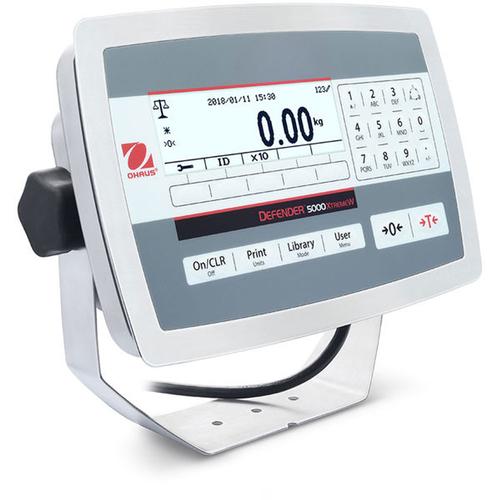

Ohaus TD52XW-AM Multifunctional Indicator, Front Installation

Features

OHAUS INDUSTRIAL INDICATOR – TD52XW

The TD52XW from OHAUS is a powerful and versatile stainless steel indicator designed for demanding industrial applications. With IP68/NEMA 4X protection, a high-resolution display, multiple connectivity options, and intuitive navigation, the TD52XW delivers reliable performance in both bench and floor scale setups. Ideal for environments where washdown durability and advanced functionality are essential.

Rugged construction: 304 stainless steel housing with IP68/NEMA 4X protection, ideal for harsh or wet environments.
Advanced functionality: Supports weighing, counting, percent weighing, checkweighing, dynamic weighing, and display hold modes.
High-resolution display: Dot matrix LCD with 256 × 80 pixels for clear readings and graphic prompts.
Flexible power and connectivity: Operates on AC or optional rechargeable battery. Includes RS232 and expandable interface options such as Ethernet, USB, RS485, analog output, and discrete I/O.

Specifications

	TD52XW	i-DT33P	i-DT33XW
Housing	304 Stainless Steel	ABS Plastic	304 Stainless Steel
Ingress Protection	IP68 / NEMA 4X	Not specified	IP66
Display	Dot Matrix LCD, 256 × 80 pixels	7-segment Multicolor Backlit LCD	7-segment Multicolor Backlit LCD
Max Displayed Resolution	75,000d (Certified 10,000d)	30,000d (Certified 6,000d)	30,000d (Certified 6,000d)
Application Modes	Weighing, Counting, Percent Weighing, Checkweighing, Dynamic Weighing, Display Hold	Weighing, Counting, Checkweighing, Totalization	Weighing, Counting, Checkweighing, Totalization
Power Options	AC Adapter (included), Optional Rechargeable Battery	AC Adapter, Optional C-cell Batteries or Rechargeable Battery	AC Adapter, Optional Rechargeable Battery
Battery Life	Up to 20 hours (rechargeable)	Up to 100 hours	Up to 100 hours
Interfaces	Standard RS232, Optional Ethernet, USB Host/Device, RS485, Analog Output, Discrete I/O	Standard RS232, Optional USB/Ethernet	Standard RS232, Optional USB/Ethernet
Working Environment	14°F to 104°F (–10°C to 40°C)	14°F to 104°F (–10°C to 40°C)	14°F to 104°F (–10°C to 40°C)

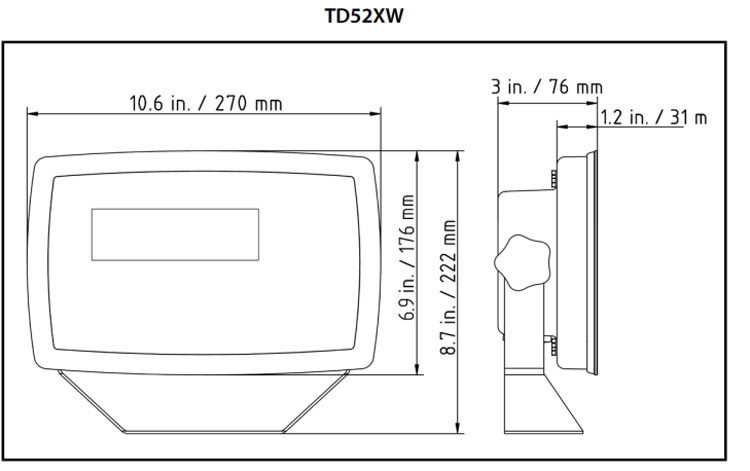

Dimensions (L × W × H)	11.1 × 3.4 × 9.1 in (283 × 86 × 232 mm)	9.9 × 5.3 × 7.0 in (251.6 × 177 × 81 mm)	10.1 × 2.9 × 8.0 in (256 × 74 × 204 mm)
Net Weight	4.4 lb (2 kg)	3.1 lb (1.4 kg)	6.6 lb (3 kg)

Accessories

TD52 Rechargeable Battery Kit – 30572730
TD52 USB Device Interface Kit – 30572734
TD52 Ethernet Interface Kit – 30572732
TD52 RS485/USB Host Interface Kit – 30572733
TD52 Analog Output Kit – 30572731
TD52 Discrete I/O Kit – 30572735
