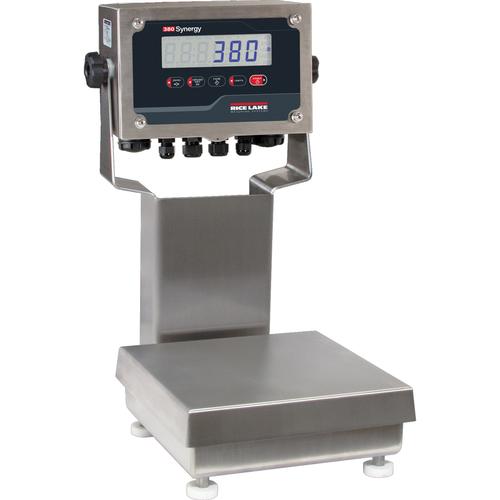

Rice Lake CW-90B-380 208528 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 5 x 0.001 lb
Rice Lake - Calibration Weights - Medical Scales
The CW-90B Ready-n-Weigh bench scale system is a complete bench scale, column and indicator package. Pair the CW-90B IP66 rated platform with the 380 Synergy indicator. This package is also offered with 4 Alkaline C-cell Batteries (not included), making it perfect for applications that require a portable bench scale more ...
Industrial Scales > Bench Scales > Bench Scales with Column
Rice Lake CW-90B-380 208528 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 5 x 0.001 lb
Capacity x Readability
Non Legal Mode:5 lb x 0.001 lb
Legal For Trade: 5 lb x 0.001 lb
Pan Size
10 x 10 in


Price: $1,205.10


Available to Ship






Legal for Trade


Overview

The CW-90B Ready-n-Weigh bench scale system is a complete bench scale, column and indicator package. Pair the CW-90B IP66 rated platform with the 380 Synergy indicator. This package is also offered with 4 Alkaline C-cell Batteries (not included), making it perfect for applications that require a portable bench scale

Capacity x Readability
Non Legal Mode:5 lb x 0.001 lb
Legal For Trade: 5 lb x 0.001 lb
Pan Size
10 x 10 in
Manufature: Rice Lake
SKU: 208528
Weight: 25.00 lb

  Features

The CW-90B Ready-n-Weigh bench scale system is a complete bench scale, column and indicator package. Pair the CW-90B IP66 rated platform with the 380 Synergy indicator. This package is also offered with 4 Alkaline C-cell Batteries (not included), making it perfect for applications that require a portable bench scale.

The CW-90B Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds. Each scale package arrives factory calibrated for quick setup.

This package can also pair the 380 Synergy Series digital weight indicator with the CW-90B. Rice Lake’s 380 has a 1-inch 6-digit LCD backlit display and a NEMA Type 4X/IP66 stainless steel washdown enclosure, making it ideal for demanding workplaces. Advanced circuitry withstands electrical noise, power disturbances and transient spikes common to industrial applications.

  Specifications

Model with 380 Indicator 208528 208529 208530 208531 208532 201463
Capacity
Readability
5 x 0.001 lb 10 x 0.002 lb 25 x 0.005 lb 25 x 0.005 lb 50 x 0.01 lb 100 x 0.02 lb
2500 x 0.5 g 5000 x 1 g 10,000 x 2 g 10,000 x 2 g 25,000 x 5 g 50 x 0.01 kg

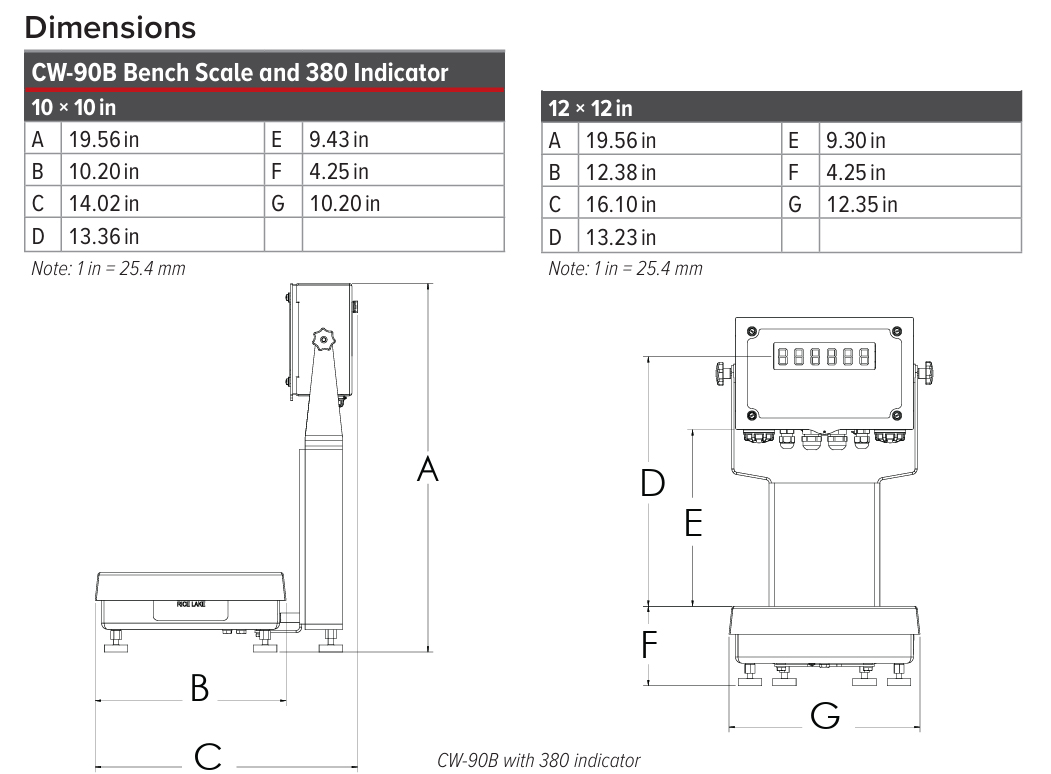

Pan Size 10 x 10 in 12 x 12 in
Rating Base: IP67, ABS Indicator: IP67, 304 Stainless steel
Scale Construction 304 stainless steel
Maximum Overload 180% to 200% depending on capacity
Overload Protection Five-point, independently adjusted
Scale Frame AISI304L, straight line finish, Ra= 45 +/- 10
Scale Cover AISI304L, straight line finish, Ra= 45 +/- 10
Cable Length 34 in
Compensated Temperature Range 14 °F to 104 °F (-10 °C to 40 °C)
Legal for Trade Base:NTEP 21-051, Class III 5,000 d
Indicator: NTEP 21-051
Measurement Canada AM-6184
Interface RS-232, USB 2.0
Display Six 1 in (25 mm) tall, LCD digits
Annunciators g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
Keys/Buttons Five- tactile buttons
