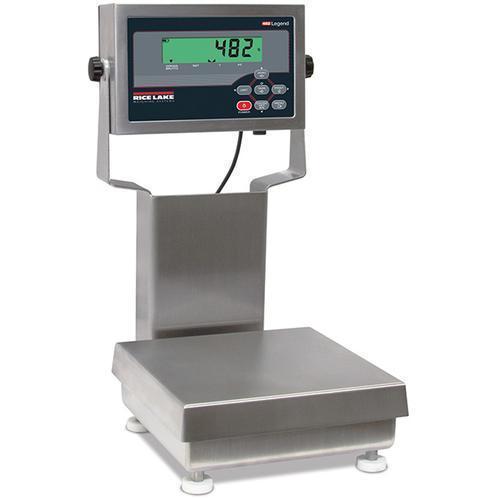

Rice Lake CW-90B-482 201463 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 5 x 0.001 lb

Features

The CW-90B Ready-n-Weigh bench scale system is a complete bench scale, column and indicator package. Pair the CW-90B IP67 rated platform with the 482 Legend indicator or choose the 482 Legend Plus for a full numeric keypad. This package is also offered with an internal battery, making it perfect for applications that require a portable bench scale.

The CW-90B Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds. Each scale package arrives factory calibrated for quick setup.

This package can also pair the 482 Legend Series digital weight indicator with the CW-90B. Rice Lake’s 482 has a 0.8-inch 6-digit LCD backlit display and a NEMA Type 4X/IP66 stainless steel washdown enclosure, making it ideal for demanding workplaces. Advanced circuitry withstands electrical noise, power disturbances and transient spikes common to industrial applications.

STANDARD FEATURES 12 x 12 x 4.25in 12 x 12 x 4.25in
Package includes scale with IP67 aluminum environmentally sealed load cell with an indicator and 12-inch column
Factory calibrated, with indicator setup and configured for 5,000 divisions
Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
LCD, 0.8in six-digit, seven-segment backlit display
Battery backed time and date
Two independent serial ports, RS-232 and 20mA for connecting to a variety of peripherals

Specifications

With 482 Indicator
Model with 482 Indicator	201463	201464	201465	201466	201467	201468
Model with 482 Plus Indicator	201469	201475	201476	201477	201478	201479
Capacity Readability	5 x 0.001 lb	10 x 0.002 lb	25 x 0.005 lb	25 x 0.005 lb	50 x 0.01 lb	100 x 0.02 lb
Capacity Readability	2500 x 0.5 g	5000 x 1 g	10,000 x 2 g	10,000 x 2 g	25,000 x 5 g	50 x 0.01 kg

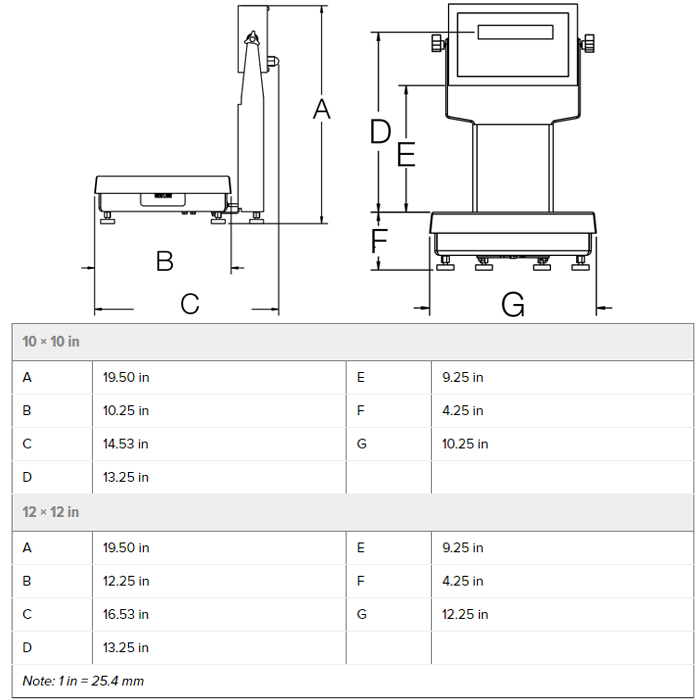

Pan Size	10 x 10 in			12 x 12 in
Rating	Base:IP67, ABS Indicator:IP67 aluminum, environmentally sealed
Scale Construction	304 stainless steel
Maximum Overload	180% to 200% depending on capacity
Overload Protection	Five-point, independently adjusted
Scale Frame	AISI304L, straight line finish, Ra= 45 +/- 10
Scale Cover	AISI304L, straight line finish, Ra= 45 +/- 10
Cable Length	34 in
Compensated Temperature Range	14 °F to 104 °F (-10 °C to 40 °C)
Legal for Trade	Base:NTEP 12-123, Class III 5,000 d Indicator: NTEP 12-123
Legal for Trade	Measurement Canada AM-5892C
Interface	Com 1: RS-232 full duplex Com 2: RS-232 full duplex or 20 mA simplex, continuous Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Display	LCD backlit display, transmissive/transflective 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators	Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons	Flat membrane panel, embossed keys, tactile feel
Rating/Material	Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

Other Models

Other Rice Lake CW-90B 482 Legal for Trade Bench Scales

Image	Name			Price
	Rice Lake CW-90B-482 201463 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 5 x 0.001 lb SKU: 201463 Capacity x Readability : 5 lb x 0.001 lb Legal For Trade: 5 lb x 0.001 lb Pan Size: 10 x 10 in More Info			$1,610.70
	Rice Lake CW-90B-482Plus 201469 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 5 x 0.001 lb SKU: 201469 Capacity x Readability : 5 lb x 0.001 lb Legal For Trade: 5 lb x 0.001 lb Pan Size: 10 x 10 in More Info			$1,610.70
	Rice Lake CW-90B-482 201464 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 10 x 0.002 lb SKU: 201464 Capacity x Readability : 10 lb x 0.002 lb Legal For Trade: 10 lb x 0.002 lb Pan Size: 10 x 10 in More Info			$1,610.70
	Rice Lake CW-90B-482Plus 201475 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 10 x 0.002 lb SKU: 201475 Capacity x Readability : 10 lb x 0.002 lb Legal For Trade: 10 lb x 0.002 lb Pan Size: 10 x 10 in More Info			$1,610.70
	Rice Lake CW-90B-482 201465 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 25 x 0.005 lb SKU: 201465 Capacity x Readability : 25 lb x 0.005 lb Legal For Trade: 25 lb x 0.005 lb Pan Size: 10 x 10 in More Info			$1,610.70
	Rice Lake CW-90B-482Plus 201476 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 25 x 0.005 lb SKU: 201476 Capacity x Readability : 25 lb x 0.005 lb Legal For Trade: 25 lb x 0.005 lb Pan Size: 10 x 10 in More Info			$1,610.70
	Rice Lake CW-90B-482 201466 Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 25 x 0.005 lb SKU: 201466 Capacity x Readability : 25 lb x 0.005 lb Legal For Trade: 25 lb x 0.005 lb Pan Size: 12 x 12 in More Info			$1,684.80
	Rice Lake CW-90B-482Plus 201477 Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 25 x 0.005 lb SKU: 201477 Capacity x Readability : 25 lb x 0.005 lb Legal For Trade: 25 lb x 0.005 lb Pan Size: 12 x 12 in More Info			$1,684.80
	Rice Lake CW-90B-482 201467 Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 50 x 0.01 lb SKU: 201467 Capacity x Readability : 50 lb x 0.01 lb Legal For Trade: 50 lb x 0.01 lb Pan Size: 12 x 12 in More Info			$1,684.80
	Rice Lake CW-90B-482Plus 201478 Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 50 x 0.01 lb SKU: 201478 Capacity x Readability : 50 lb x 0.01 lb Legal For Trade: 50 lb x 0.01 lb Pan Size: 12 x 12 in More Info			$1,684.80
	Rice Lake CW-90B-482 201468 Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 100 x 0.02 lb SKU: 201468 Capacity x Readability : 100 lb x 0.02 lb Legal For Trade: 100 lb x 0.02 lb Pan Size: 12 x 12 in More Info			$1,684.80
	Rice Lake CW-90B-482Plus 201479 Legal for Trade 12 x 12 inch Bench Scale with 12 in Column 100 x 0.02 lb SKU: 201479 Capacity x Readability : 100 lb x 0.02 lb Legal For Trade: 100 lb x 0.02 lb Pan Size: 12 x 12 in More Info			$1,684.80
