Rice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds. more ... |
Industrial Scales > Bench Scales > Bench Scales with Column | |||||||
|
|||||||
OverviewRice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds.
Capacity x Readability
Manufature:
Rice LakeNon Legal Mode:5 lb x 0.001 lb Legal For Trade: 5 lb x 0.001 lb Pan Size 10 x 10 in SKU: 201157 Weight: 25.00 lb |

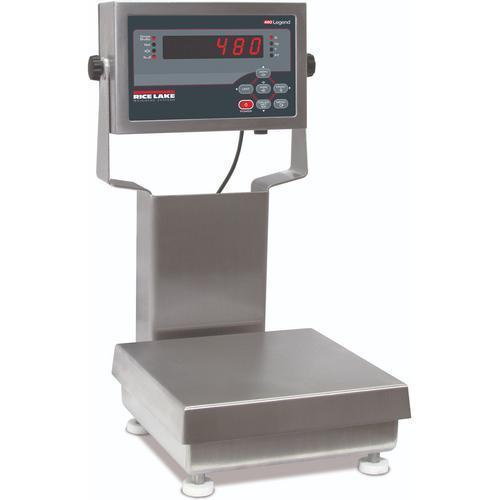

Rice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds. This package pairs the 480 Legend Series digital weight indicator with the CW-90B. Rice Lake’s 480 has a 0.8-inch 6-digit LED display, NEMA Type 4X/IP66 stainless steel washdown enclosure and programmable ticket formats for gross, net, accumulator and setpoints. This package can also pair the 482 Legend Series digital weight indicator with the CW-90B. Rice Lake’s 482 has a 0.8-inch 6-digit LCD backlit display and a NEMA Type 4X/IP66 stainless steel washdown enclosure, making it ideal for demanding workplaces. Advanced circuitry withstands electrical noise, power disturbances and transient spikes common to industrial applications.
With 480 Indicator | |||||||
---|---|---|---|---|---|---|---|
Model with 480 Indicator | 201157 | 201158 | 201159 | 201160 | 201161 | 201162 | |
Model with 480 Plus Indicator | 201163 | 201164 | 201165 | 201166 | 201167 | 201168 | |
Capacity Readability |
5 x 0.001 lb | 10 x 0.002 lb | 25 x 0.005 lb | 25 x 0.005 lb | 50 x 0.01 lb | 100 x 0.02 lb | |
2500 x 0.5 g | 5000 x 1 g | 10,000 x 2 g | 10,000 x 2 g | 25,000 x 5 g | 50 x 0.01 kg | ||
Pan Size | 10 x 10 in | 12 x 12 in | |||||
Rating | IP67, ABS | ||||||
Scale Construction | 304 stainless steel | ||||||
Maximum Overload | 180% to 200% depending on capacity | ||||||
Overload Protection | Five-point, independently adjusted | ||||||
Scale Frame | AISI304L, straight line finish, Ra= 45 +/- 10 | ||||||
Scale Cover | AISI304L, straight line finish, Ra= 45 +/- 10 | ||||||
Cable Length | 34 in | ||||||
Compensated Temperature Range | 14 °F to 104 °F (-10 °C to 40 °C) | ||||||
Legal for Trade | NTEP 12-123 | ||||||
Measurement Canada AM-5892C | |||||||
Interface | RS-232 | ||||||
Display | LED display 0.8 in (20 mm), six-digit, seven-segment | ||||||
Status Annunciators | Gross, net, center of zero, standstill, lb, kg, tare, preset tare | ||||||
Keys/Buttons | Flat membrane panel, embossed keys, tactile feel | ||||||
Rating/Material | Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel |
