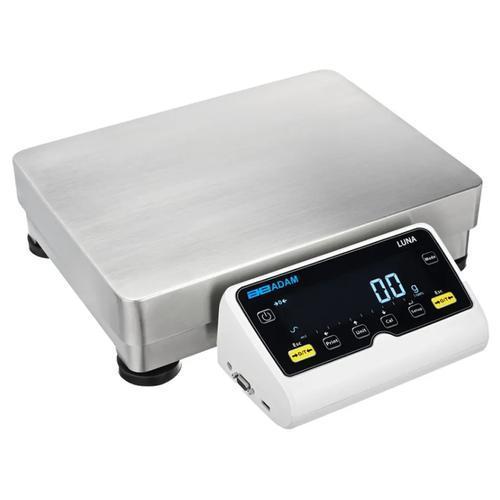

Adam Equipment LBL 34001e Luna High Capacity Precision Balance 34 kg x 0.1g

Features

Combining high-precision weighing with the capacity of a large-pan bench scale, Luna LBL delivers a fine readability of 0.1g with capacities of up to 75lb / 34kg. Its stainless steel pan measures a generous 15.7” x 11.8” / 400mm x 300mm to accommodate large samples. LBL performs data transfer to printers or PCs via ethernet, USB and RS-232 interfaces to simplify compliance with GLP and GMP standards. To allow optimal visibility of weighing results, LBL is available in two versions: one with a pillar-mounted indicator and one with a detachable indicator, which may be wall-mounted or used while attached to the machine. The LCD indicator features bright, easily-read 0.9” / 24mm digits.

Features

Heavy duty weighing base and large, crystal-clear weight display
Rugged stainless steel construction for ultimate durability
Sealed keypad protects against dirt and spills
Send weight data to printers and PCs via RS-232 or USB outputs Applications
Weighing
Parts counting
Percentage weighing
Dynamic / animal weighing
Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
Connect to a network with the RJ45 ethernet interface
Optional hook enables below-balance weighing
Capacity tracker built into display for easily monitoring possible overloads
Wall-mount bracket for placing indicator on vertical surface
Lockdown device to secure balance
Selectable digital filtering helps minimize effects of vibration and disturbances
Zero-tracking feature ensures display returns to zero reading
Multilingual display permits use in various regions
Optional rechargeable battery for operation almost anywhere
Auto power-off to save energy
AC adapter included
External calibration allows for verification and adjustment with weights
Solid ABS housing is durable for industrial use

Applications

Weighing
Parts counting
Percentage weighing
Dynamic / animal weighing
Density determination
Checkweighing
Check counting
Net total weighing

Specifications

Model with External calibration	LBL 14001e 1010016849	LBL 14001P 1010016850	LBL 24001e 1010016761	LBL 24001P 1010016852	LBL 34001e 1010016765	LBL 34001P 1010016853
Capacity x Readability	30 lb x 0.0002 lb	30 lb x 0.0002 lb	50 lb x 0.0002 lb	50 lb x 0.0002 lb	75 lb x 0.0002 lb	75 lb x 0.0002 lb
Capacity x Readability	14 kg x 0.1g	14 kg x 0.1g	24 kg x 0.1g	24 kg x 0.1g	34 kg x 0.1g	34 kg x 0.1g
Repeatability (S.D.)	0.0005 lb 0.2g	0.0005 lb 0.2g	0.0005 lb 0.2g	0.0005 lb 0.2g	0.0005 lb 0.2g	0.0005 lb 0.2g
Pan Size	15.7 x 11.8 inch / 400 x 300 mm
Weighing Units	g, kg, lb, oz, lb:oz, ct, GN, N, T, custom unit
Resolution	1:140000
Interface	RS-232, USB, Ethernet RJ45
Calibration	External
Display	Backlit LCD with 0.9” / 24mm-high digits
Power Supply	18VDC 830mA adapter
Operating Temperature	15^o to 35^oC / 59^o to 95^oF
Housing	ABS Plastic indicator with mild steel base and stainless steel pan
Overall Dimensions	18.1 x 15.7 x 4 inch 470 x 400 x 100 mm	14.7 x 15.7 x 23.2 inch 335 x 401 x 590 mm	18.1 x 15.7 x 4 inch 470 x 400 x 100 mm	14.7 x 15.7 x 23.2 inch 335 x 401 x 590 mm	18.1 x 15.7 x 4 inch 470 x 400 x 100 mm	14.7 x 15.7 x 23.2 inch 335 x 401 x 590 mm
