| The ZP224 durable 24" x 24" Bench Scale provides a fast accurate weight reading that fits into any operation as a stand-alone scale, interfaced to a shipping manifest software or receiving station. more ... |
| Shipping and Receiving > Shipping Scales > Freight up to 151 to 500 lb | ||||||
|
||||||

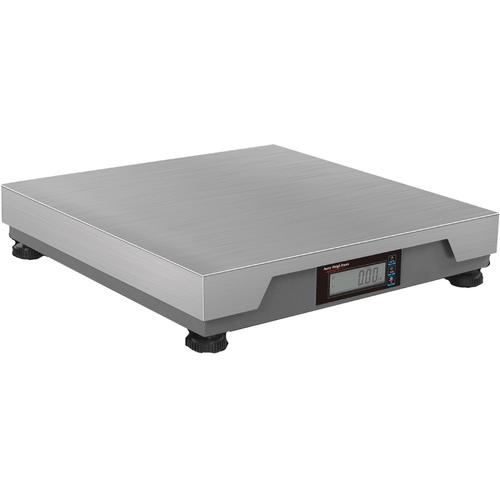

OverviewThe ZP224 durable 24" x 24" Bench Scale provides a fast accurate weight reading that fits into any operation as a stand-alone scale, interfaced to a shipping manifest software or receiving station.
|
||||||
The ZP224 durable 24" x 24" Bench Scale provides a fast accurate weight reading that fits into any operation as a stand-alone scale, interfaced to a shipping manifest software or receiving station.
Supplied with a built-in, flush-fitting, six digit 1" (25mm) high backlit LCD display that is mounted in the front face of the base. An optional second remote display can be plugged in to provide the customer a facing weight reading. A range of emulation protocols are available within the scale to allow you to quickly select the correct compatible communication protocol to interface with a wide range of third party post, mail and shipping software programs or host devices. This will be communicated through either a serial RS-232, USB (HID) or USB (VCP) port found on the rear of the base
| Model | ZP218 AWT05-100378 |
ZP218 AWT05-100379 |
ZP224 AWT05-100724 |
ZP224 AWT05-100558 |
|---|---|---|---|---|
| Capacity x Resolution | 150 x 0.05 lb 75 x 0.02 kg |
150 x 0.05 lb 75 x 0.02 kg |
250 x 0.05 lb 100 x 0.02 kg |
250 x 0.05 lb 100 x 0.02 kg |
| Pan Size | 18 x 18 inch |
18 x 18 inch |
24 x 24 inch |
24 x 24 inch |

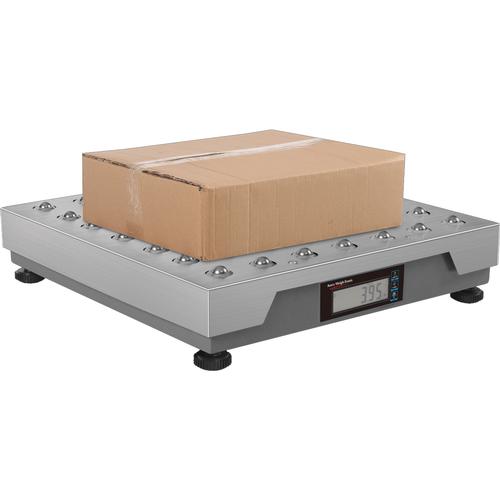

| Pan type | Stainless Steel | Stainless Steel Ball Top (25 balls) |
Stainless Steel | Stainless Steel Ball Top (48 balls) |
| Legal for Trade | NTEP approved for use in Class III operations, CC 22-053 Canada Weights and Measures approval: pending | |||
| Power | Input: 100-240V, 50/60Hz, 0.4A Max Output: 12.0VDC, 1.0A max, 0.25mm barrel plus, center pin positive Type: Wall mount adapter with NA style two prong blade type |
|||
| Connectivity | 1 x RS-232 (9 way female D Type connector ), 1 x USB HID (Mini USB) or 1x USB VCP (USB-Type B) 1 x 2nd Remote display connection (RJ 45) All are positioned on the rear of the base | |||
| Display Type | Flush fitting six digit, 1 inch (25mm) high backlit LCD display | |||
| Operational Keys | POWER/ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference UNITS: Allows you to select between lbs and kgs TARE: Perform a tare function for gross and net weight |
|||
| Units of Measure | lb, kg | |||
| Configurable Selections | Capacity, resolution, filters, baud rates, protocols, back light setting, and stand-by mode | |||
| Base Construction | Painted all-metal frames and heavy duty overload protection using an aluminum analog load cell | |||
| Base Capacity | Capacity (lb) 200 lb x 0.05 lb (100 x 0.02 kg) factory default With field calibration, configurable to: 100 x 0.02 lb (50 x 0.01kg)150 x 0.05 lb (75 x 0.02kg) |
|||
| Operating Environment | Temperature: 42° F to 104° F (5° C to 40° C) Relative Humidity: 10 to 95% (non-condensing) |
|||
| Calibration | 2 point calibration process (zero and span capacity) Linear Calibration Field calibration can be carried out by using less than full capacity weights Gravity compensation to allow the local gravity to be entered for where the scale is to be used |
|||
| Filtering | Standard, Fast, or Slow | |||
| Supported Protocols | - | 4 Supported Protocols: NCI (default), SMA, Auto Weight Send 1, and Auto Weight Send 2 (9600 or 19200 baud rate). Includes as standard USB HID Keyboard Wedge output. USB VCP (Virtual COM Port) for use with downloadable USB VCP driver | ||
| $1,764.00 |
|
||||||||||||||||
