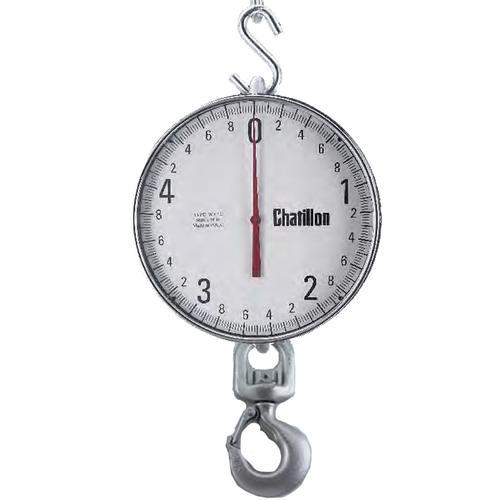

Chatillon WT12-01000-SH Crane Scale, with Swivel Hook 1000 lb x 5 lb

Basic lb Models	WT12-00500	WT12-01000	WT12-02000	WT12-05000	WT12-10000	WT12-20000
With Eye Hook	WT12-00500-EH	WT12-01000-EH	WT12-02000-EH	WT12-05000-EH	WT12-10000-EH	WT12-20000-EH
With Swivel Hook	TD5-00500-SH	TD5-01000-SH	TD5-02000-SH	TD5-05000-SH	TD5-10000-SH	TD5-20000-SH
With Swivel Shackle	TD5-00500-SS	TD5-01000-SS	TD5-02000-SS	TD5-05000-SS	TD5-10000-SS	TD5-20000-SS
Capacity x Readability	500 lb x 2 lb	1000 lb x 5 lb	2000 lb x 10 lb	5000 lb x 20 lb	10,000 lb x 50 lb	20,000 lb x 100 lb
Dial size	12 inch Ø	12 inch Ø	12 inch Ø	12 inch Ø	12 inch Ø	12 inch Ø
MRP	Yes	Yes	Yes	Yes	Yes	Yes
Grad	250	200	200	250	200	200
Accuracy	+0.5% of Full Scale
Maximum Overload	120% of Rated Capacity
Tare Capacity	20% of Rated Capacity
Dial Resolution	200:1
Dial Revolutions	Full Scale in 1 Rev
Operating Temp	-50°F to 140°F (-45°C to 60°C)
Relative Humidity	0 to 85%
Instrument Weight	18 lbs (8 kg)
Shipping Weight	22 lbs (10 kg)
Warranty	1 year

Basic lb Models

WT12-00500

WT12-01000

WT12-02000

WT12-05000

WT12-10000

WT12-20000

With Eye Hook

WT12-00500-EH

WT12-01000-EH

WT12-02000-EH

WT12-05000-EH

WT12-10000-EH

WT12-20000-EH

With Swivel Hook

TD5-00500-SH

TD5-01000-SH

TD5-02000-SH

TD5-05000-SH

TD5-10000-SH

TD5-20000-SH

With Swivel Shackle

TD5-00500-SS

TD5-01000-SS

TD5-02000-SS

TD5-05000-SS

TD5-10000-SS

TD5-20000-SS

Capacity x Readability

500 lb x 2 lb

1000 lb x 5 lb

2000 lb x 10 lb

5000 lb x 20 lb

10,000 lb x 50 lb

20,000 lb x 100 lb

Dial size

12 inch Ø

MRP

Yes

Grad

250

200

250

200

Accuracy

+0.5% of Full Scale

Maximum Overload

120% of Rated Capacity

Tare Capacity

20% of Rated Capacity

Dial Resolution

200:1

Dial Revolutions

Full Scale in 1 Rev

Operating Temp

-50°F to 140°F (-45°C to 60°C)

Relative Humidity

0 to 85%

Instrument Weight

18 lbs (8 kg)

Shipping Weight

22 lbs (10 kg)

Warranty

1 year

Image	Name	Price
	Chatillon WT12-00500KG Dynamometer, 500 kg x 2 kg SKU: WT12-500KG Capacity x Readability : 500 kg x 2 kg More Info	$1,195.00
	Chatillon WT12-1000KG Dynamometer, 1000 kg x 5 kg SKU: WT12-1000KG Capacity x Readability : 1000 kg x 5 kg More Info	$1,195.00
	Chatillon WT12-2000KG Dynamometer, 2000 kg x 10 kg SKU: WT12-2000KG Capacity x Readability : 2000 kg x 10 kg More Info	$1,195.00
	Chatillon WT12-5000KG Dynamometer, 5000 kg x 20 kg SKU: WT12-5000KG Capacity x Readability : 5000 kg x 20 kg More Info	$1,325.00
	Chatillon WT12-10000KG Dynamometer, 10000 kg x 50 kg SKU: WT12-10000KG Capacity x Readability : 10000 kg x 50 kg More Info	$1,325.00
	Chatillon WT12-00500 Dynamometer, 500 lb x 2 lb SKU: WT12-500 Capacity x Readability : 500 lb x 2 lb More Info	$1,195.00
	Chatillon WT12-1000 Dynamometer, 1000 lb x 5 lb SKU: WT12-1000 Capacity x Readability : 1000 lb x 5 lb More Info	$1,195.00
	Chatillon WT12-2000 Dynamometer, 2000 lb x 10 lb SKU: WT12-2000 Capacity x Readability : 2000 lb x 10 lb More Info	$1,195.00
	Chatillon WT12-5000 Dynamometer, 5000 lb x 20 lb SKU: WT12-5000 Capacity x Readability : 5000 lb x 20 lb More Info	$1,195.00
	Chatillon WT12-10000 Dynamometer, 10000 lb x 50 lb SKU: WT12-10000 Capacity x Readability : 10000 lb x 50 lb More Info	$1,325.00
	Chatillon WT12-20000 Dynamometer, 20000 lb x 100 lb SKU: WT12-20000 Capacity x Readability : 20000 lb x 100 lb More Info	$1,325.00


Name

Price

Chatillon WT12-00500KG Dynamometer, 500 kg x 2 kg
SKU: WT12-500KG
Capacity x Readability : 500 kg x 2 kg

More Info

$1,195.00

Chatillon WT12-1000KG Dynamometer, 1000 kg x 5 kg
SKU: WT12-1000KG
Capacity x Readability : 1000 kg x 5 kg

More Info

$1,195.00

Chatillon WT12-2000KG Dynamometer, 2000 kg x 10 kg
SKU: WT12-2000KG
Capacity x Readability : 2000 kg x 10 kg

More Info

$1,195.00

Chatillon WT12-5000KG Dynamometer, 5000 kg x 20 kg
SKU: WT12-5000KG
Capacity x Readability : 5000 kg x 20 kg

More Info

$1,325.00

Chatillon WT12-10000KG Dynamometer, 10000 kg x 50 kg
SKU: WT12-10000KG
Capacity x Readability : 10000 kg x 50 kg

More Info

$1,325.00

Chatillon WT12-00500 Dynamometer, 500 lb x 2 lb
SKU: WT12-500
Capacity x Readability : 500 lb x 2 lb

More Info

$1,195.00

Chatillon WT12-1000 Dynamometer, 1000 lb x 5 lb
SKU: WT12-1000
Capacity x Readability : 1000 lb x 5 lb

More Info

$1,195.00

Chatillon WT12-2000 Dynamometer, 2000 lb x 10 lb
SKU: WT12-2000
Capacity x Readability : 2000 lb x 10 lb

More Info

$1,195.00

Chatillon WT12-5000 Dynamometer, 5000 lb x 20 lb
SKU: WT12-5000
Capacity x Readability : 5000 lb x 20 lb

More Info

$1,195.00

Chatillon WT12-10000 Dynamometer, 10000 lb x 50 lb
SKU: WT12-10000
Capacity x Readability : 10000 lb x 50 lb

More Info

$1,325.00

Chatillon WT12-20000 Dynamometer, 20000 lb x 100 lb
SKU: WT12-20000
Capacity x Readability : 20000 lb x 100 lb

More Info

$1,325.00

Optional Accessories

more info

Chatillon 13403 Swivel Shackle, 10000-20000 lb
more info
Price: $78.00
In Stock

Swivel Shackle, 10000-20000 lb capacity, for Chatillon dynamometers

Part Number	Lb Capacity	Dimensions Inches							Weight
Part Number	Lb Capacity	P	Q	R	S	T	V	W	Weight
Eye Hook 13400	500 - 5000	4^15/1d	1^1/2	7^7/8	5^3/4	1^9/16	-	2^15/16	3 lb 12 oz
Eye Hook 13401	10000 - 20000	7^9/16	2^1/4	12^7/16	9^1/16	2^7/16	-	4^11/16	13 lb
Swivel Hook 13404	500 - 5000	4^15/16	1^1/2	9^9/16	7^7/16	1^3/4	2	3^1/2	4 lb 14 oz
Swivel Hook 13405	10000-20000	7^9/16	2^1/4	14^1/2	11^1/8	2^3/8	2^3/4	5	15 lb 13 oz
Swivel Shackle 13402	500-5000	3	2^3/8	7^13/16	6^9/16	1^9/16	1^3/4	-	2 lb 8 oz
Swivel Shackle 13403	10000-20000	4	3^1/16	10^1/8	9^3/8	2^1/16	2^1/4	-	6 lb 2 0z

more info

Chatillon 13400 Eye Hook, 500-5000 lb
more info
Price: $75.60
In Stock

Safety Eye Hook, 500-5000 lb capacity, for Chatillon dynamometers

Part Number	Lb Capacity	Dimensions Inches							Weight
Part Number	Lb Capacity	P	Q	R	S	T	V	W	Weight
Eye Hook 13400	500 - 5000	4^15/1d	1^1/2	7^7/8	5^3/4	1^9/16	-	2^15/16	3 lb 12 oz
Eye Hook 13401	10000 - 20000	7^9/16	2^1/4	12^7/16	9^1/16	2^7/16	-	4^11/16	13 lb
Swivel Hook 13404	500 - 5000	4^15/16	1^1/2	9^9/16	7^7/16	1^3/4	2	3^1/2	4 lb 14 oz
Swivel Hook 13405	10000-20000	7^9/16	2^1/4	14^1/2	11^1/8	2^3/8	2^3/4	5	15 lb 13 oz
Swivel Shackle 13402	500-5000	3	2^3/8	7^13/16	6^9/16	1^9/16	1^3/4	-	2 lb 8 oz
Swivel Shackle 13403	10000-20000	4	3^1/16	10^1/8	9^3/8	2^1/16	2^1/4	-	6 lb 2 0z

more info

Chatillon 13404 Swivel Hook, 500-5000 lb
more info
Price: $155.70
In Stock

Safety Swivel Hook, 500-5000 lb capacity, for Chatillon dynamometers

Part Number	Lb Capacity	Dimensions Inches							Weight
Part Number	Lb Capacity	P	Q	R	S	T	V	W	Weight
Eye Hook 13400	500 - 5000	4^15/1d	1^1/2	7^7/8	5^3/4	1^9/16	-	2^15/16	3 lb 12 oz
Eye Hook 13401	10000 - 20000	7^9/16	2^1/4	12^7/16	9^1/16	2^7/16	-	4^11/16	13 lb
Swivel Hook 13404	500 - 5000	4^15/16	1^1/2	9^9/16	7^7/16	1^3/4	2	3^1/2	4 lb 14 oz
Swivel Hook 13405	10000-20000	7^9/16	2^1/4	14^1/2	11^1/8	2^3/8	2^3/4	5	15 lb 13 oz
Swivel Shackle 13402	500-5000	3	2^3/8	7^13/16	6^9/16	1^9/16	1^3/4	-	2 lb 8 oz
Swivel Shackle 13403	10000-20000	4	3^1/16	10^1/8	9^3/8	2^1/16	2^1/4	-	6 lb 2 0z

more info

Chatillon 13402 Swivel Shackle, 500-5000 lb
more info
Price: $56.00
In Stock

Swivel Shackle, 500-5000 lb capacity, for Chatillon Dynamometers

Part Number	Lb Capacity	Dimensions Inches							Weight
Part Number	Lb Capacity	P	Q	R	S	T	V	W	Weight
Eye Hook 13400	500 - 5000	4^15/1d	1^1/2	7^7/8	5^3/4	1^9/16	-	2^15/16	3 lb 12 oz
Eye Hook 13401	10000 - 20000	7^9/16	2^1/4	12^7/16	9^1/16	2^7/16	-	4^11/16	13 lb
Swivel Hook 13404	500 - 5000	4^15/16	1^1/2	9^9/16	7^7/16	1^3/4	2	3^1/2	4 lb 14 oz
Swivel Hook 13405	10000-20000	7^9/16	2^1/4	14^1/2	11^1/8	2^3/8	2^3/4	5	15 lb 13 oz
Swivel Shackle 13402	500-5000	3	2^3/8	7^13/16	6^9/16	1^9/16	1^3/4	-	2 lb 8 oz
Swivel Shackle 13403	10000-20000	4	3^1/16	10^1/8	9^3/8	2^1/16	2^1/4	-	6 lb 2 0z

more info

Chatillon 13401 Eye Hook, 10000-20000 lb
more info
Price: $256.50
In Stock

Safety Eye Hook, 10000-20000 lb capacity, for Chatillon dynamometers

Part Number	Lb Capacity	Dimensions Inches							Weight
Part Number	Lb Capacity	P	Q	R	S	T	V	W	Weight
Eye Hook 13400	500 - 5000	4^15/1d	1^1/2	7^7/8	5^3/4	1^9/16	-	2^15/16	3 lb 12 oz
Eye Hook 13401	10000 - 20000	7^9/16	2^1/4	12^7/16	9^1/16	2^7/16	-	4^11/16	13 lb
Swivel Hook 13404	500 - 5000	4^15/16	1^1/2	9^9/16	7^7/16	1^3/4	2	3^1/2	4 lb 14 oz
Swivel Hook 13405	10000-20000	7^9/16	2^1/4	14^1/2	11^1/8	2^3/8	2^3/4	5	15 lb 13 oz
Swivel Shackle 13402	500-5000	3	2^3/8	7^13/16	6^9/16	1^9/16	1^3/4	-	2 lb 8 oz
Swivel Shackle 13403	10000-20000	4	3^1/16	10^1/8	9^3/8	2^1/16	2^1/4	-	6 lb 2 0z

more info

Chatillon 13405 Swivel Hook, 10000-20000 lb
more info
Price: $543.60
In Stock

Safety Swivel Hook, 10000-20000 lb capacity, for Chatillon dynamometers

Part Number	Lb Capacity	Dimensions Inches							Weight
Part Number	Lb Capacity	P	Q	R	S	T	V	W	Weight
Eye Hook 13400	500 - 5000	4^15/1d	1^1/2	7^7/8	5^3/4	1^9/16	-	2^15/16	3 lb 12 oz
Eye Hook 13401	10000 - 20000	7^9/16	2^1/4	12^7/16	9^1/16	2^7/16	-	4^11/16	13 lb
Swivel Hook 13404	500 - 5000	4^15/16	1^1/2	9^9/16	7^7/16	1^3/4	2	3^1/2	4 lb 14 oz
Swivel Hook 13405	10000-20000	7^9/16	2^1/4	14^1/2	11^1/8	2^3/8	2^3/4	5	15 lb 13 oz
Swivel Shackle 13402	500-5000	3	2^3/8	7^13/16	6^9/16	1^9/16	1^3/4	-	2 lb 8 oz
Swivel Shackle 13403	10000-20000	4	3^1/16	10^1/8	9^3/8	2^1/16	2^1/4	-	6 lb 2 0z

more info

Chatillon SPK-WT12-CASE Carrying Case for TD-5 and WT12 Dynamometers
more info
Price: $229.00
In Stock

Chatillon SPK-WT12-CASE Carrying Case for TD-5 and WT12 Dynamometers

Overview

This Item Contains the following items

Features

Specifications

Other Models

Optional Accessories


The CHATILLON® WT12 Series mechanical dynamometer may be used as a weighing tensiometer or crane scale. This precision weighing instrument features a large 12-inch (305 mm) dial face with shatter-resistant dial cover in a strong aluminum housing. Available with pound or kilogram dial face, the WT12 Series more ...
