OverviewWith a food-safe design that is NSF-certified and supports a HACCP system, the Valor 1000 Series is a reliable choice for general food weighing. Easy-to-operate Valor 1000 scales feature two-button operation, a large backlit LCD display and up to 1,500-hour battery life.
Capacity x Readability
Manufature:
Ohaus6 lb x 0.001 lb Pan Size 9.65 x 7.48 in SKU: V12P3 UPC: 045625052454 Weight: 6.00 lb
|
Reliable Food-Safe Scale for Dry Environments
With a food-safe design that is NSF-certified and supports a HACCP system, the Valor 1000 Series is a reliable choice for general food weighing. Easy-to-operate Valor 1000 scales feature two-button operation, a large backlit LCD display and up to 1,500-hour battery life.
Other Standard Features and Equipment
Integrated level bubble and adjustable feet, selectable Auto-Off, selectable weighing units and integrated carrying handles for easy transportation
Model | V12P3 | V12P6 | V12P15 | V12P30 | V12P2T | V12P5T | V12P10T | V12P20T |
---|---|---|---|---|---|---|---|---|
Capacity x Readability | 6 lb x 0.001 lb 3 kg x 0.0005 kg 3,000 g x 0.5 g 96 oz x 0.02 oz 6 lb x 0.02 oz |
15 lb x 0.002 lb 6 kg x 0.001 kg 6,000 g x 1 g 240 oz x 0.05 oz 15 lb x 0.05 oz |
30 lb x 0.005 lb 15 kg x 0.002 kg 15,000 g x 2 g 480 oz x 0.1 oz 30 lb x 0.1 oz |
60 lb x 0.01 lb 30 kg x 0.005 kg 30,000 g x 5 g 960 oz x 0.2 oz 60 lb x 0.2 oz |
5 lb x 0.0005 lb 2 kg x 0.0002 kg 2,000 g x 0.2 g 80 oz x 0.01 oz |
10 lb x 0.001 lb 5 kg x 0.0005 kg 5,000 g x 0.5 g 160 oz x 0.02 oz |
20 lb x 0.002 lb 10 kg x 0.001 kg 10,000 g x 1 g 320 oz x 0.05 oz |
50 lb x 0.005 lb 20 kg x 0.002 kg 20,000 g x 2 g 800 oz x 0.1 oz |
Maximum Display Resolution (gram) | 1:6,000 | 1:7,500 | 1:6,000 | 1:10,000 | 1:10,000 | 1:10,000 | 1:10,000 | |
Maximum Display Resolution (pound) | 1:6,000 | 1:7,500 | 1:6,000 | 1:10,000 | 1:10,000 | 1:10,000 | 1:10,000 | |
Legal for Trade | - | - | - | - | 5 lb x 0.002 lb 2 kg x 0.001 kg 2,000 g x 1 g 80 oz x 0.05 oz |
10 lb x 0.005 lb 5 kg x 0.002 kg 5,000 g x 2 g 160 oz x 0.1 oz |
20 lb x 0.01 lb 10 kg x 0.005 kg 10,000 g x 5 g 320 oz x 0.2 oz |
50 lb x 0.02 lb 20 kg x 0.01 kg 20,000 g x 10 g 800 oz x 0.5 oz |
Approved | - | - | - | - | NIST Handbook 44 (NTEP CC 11-012) Canada Weights and Measures Regulations ( AM-6164 ) |
|||
Approved Resolution (gram) | - | - | - | - | 1:2,000 | 1:2,500 | 1:2,000 | 1:2,000 |
Approved Resolution (pound)) | - | - | - | - | 1:2,500 | 1:2,000 | 1:2,000 | 1:2,500 |
Weighing Units | g, kg, lb, oz, lb:oz | g, kg, lb, oz | ||||||
Application Mode | Weighing | |||||||
Tare Range | To capacity by subtraction | |||||||
Stabilization Time | < 2 seconds | |||||||
Power Requirements | Four Type D Alkaline batteries (not included) or AC adapter (included) | |||||||
Calibration | Digital with external weight | |||||||
Typical Battery Life | 1500 hours (with backlight turned off) | 750 hours with backlight turned off | ||||||
Construction | ABS plastic housing, stainless steel pan, in-use cover | |||||||
Safe Overload | 150% of capacity | |||||||
Typical Battery Life | - | Optional RS232 | ||||||
Specified Temperature Range | 32 to 104 °F / 0 to 40 °C | |||||||
Display Type | Single display - LCD with white backlight | Dual display - LCD with white backlight | ||||||
Display Size | 1.0 in / 25.4 mm | |||||||
Pan Size | 9.65 x 7.48 in / 245 x 190 mm | |||||||

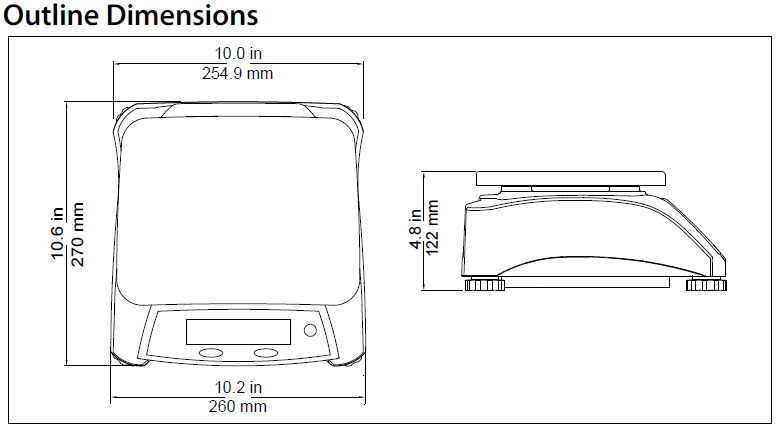

Scale Dimensions (W x D x H) | 10.2 x 10.6 x 4.8 in / 260 x 270 x 122 mm | |||||||
Shipping Dimensions (W x D x H) | 12.6 x 12.6 x 6.9 in / 319 x 319 x 175 mm | |||||||
Net Weight | 5.5 lb / 2.5 kg | |||||||
Shipping Weight | 6.8 lb / 3.1 kg |
|
