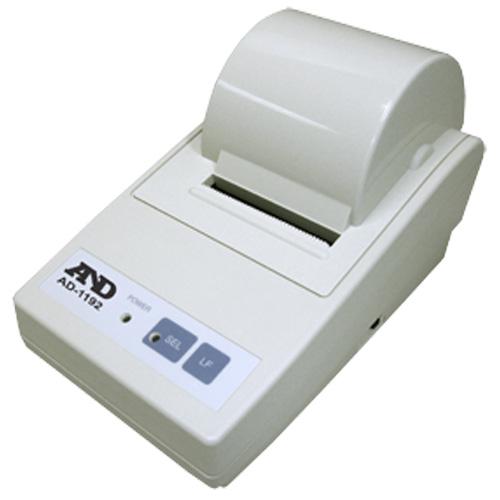

OverviewThe AD-1192 is a compact, palm-sized dot-impact printer that provides
users with essential functions.
|
The AD-1192 is a compact, palm-sized dot-impact printer that provides users with essential functions.
Multiple Applications - Use the AD-1192 with A&D balances & scales or in data-logging applications.
Convenient - The AD-1192 is ultra compact, lightweight, low cost and operates with low power consumption. It features a paper near-end detection function.
Connectivity - RS-232C serial interface
Features / Applications
Model | AD-1192 |
---|---|
Printing Method | Dot Matrix |
Print Direction | Uni-directional |
Character Cofing (W x H) | (4+0.5) x 8 |
Number of Columns | 40 columns: 180 dots/line |
Print Speed | Approx. 1.8 lines/sec |
Character Size (W x H) | 1.08 x 2.4 mm |
Character Spacing | 1.19 mm |
Line Pitch | 3.52 mm |
Paper Feed Speed | Approx. 3.6 lines/sec |
Paper | Single sheet, copier paper (original and copy), Total thickness: 0.13 mm or less Paper roll: 57.5 ± 0.5 (W) x 60 or 80 (Dia) mm Core ID: Ø12 ± 1 mm Core OD: Ø18 ± 1 mm |
input Buffer | 2K bytes |
Ink Ribbon | Black, Service life: approx. 250,000 characters |
Power Supply | DC 7V ± 1V (Printing) Use exclusive adapter (DC 7V 1.6A) |
Power Consumption | Printing: Approx. 7VA Stand-by: Approx. 0.5VA |
Weight | Approx. 470g |
Dimensions (W x D x H) | 106 x 180 x 88 mm / 4.2 x 7.5 x 3.5 in. |
Environment - Operation | Temperature 0-40°C Humidity 35-85% RH (without condensation) |
Environment - Storage | Temperature 20-60°C Humidity 10-90% RH (without condensation) |
Reliability | MCBF 1 million lines |
|
