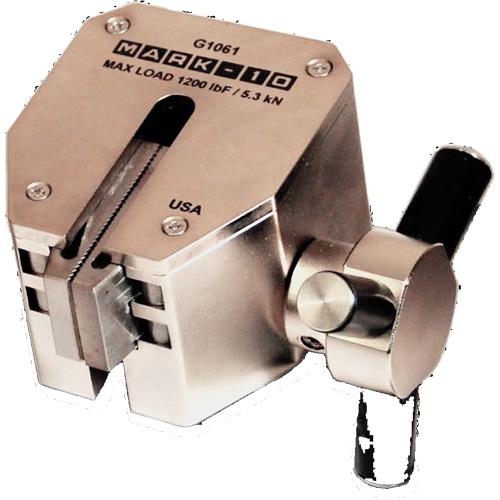

OverviewThis heavy duty self-tightening grip with a capacity of 1200 lb (5.3 kN) is ideal for a range of tensile testing requirements. The serrated steel jaws are easily opened with an ergonomic spring loaded knob and rack and pinion type mechanism. The jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics.
|
These heavy duty self-tightening grips with a capacity range of 200 lbf to 2,000 lbF (1 kN to 10 kN) are ideal for tensile testing of a wide range of materials. The serrated 55 RC hardened steel jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics.
The spring loaded jaws open with a highly ergonomic rack and pinion lever mechanism. The smooth and easy operation of the lever greatly reduces operator hand fatigue.
Model | Cap. lb [kN] | A | B | C | D | E | F | G | Included Adapters |
---|---|---|---|---|---|---|---|---|---|
G1061-1 | 200 [0.9] | 1.95 [49.5] | 2.45 [62.2] | 0.375 [9.5] | 0.95 [24.1] | 5/16-18 UNC | 0 - 0.25 [0 - 6.4] | 0.62 [15.7] | G1030, #10-32 M/M stud, 5/16-18 M/M stud, with jam nuts |
G1061-1 | 200 [0.9] | 1.95 [49.5] | 2.45 [62.2] | 0.375 [9.5] | 0.95 [24.1] | 5/16-18 UNC | 0 - 0.25 [0 - 6.4] | 0.62 [15.7] | G1030, #10-32 M/M stud, 5/16-18 M/M stud, with jam nuts |
G1061 | 1,200 [5.3] | 1.95 [49.5] | 2.45 [62.2] | 0.75 [19.1] | 1.50 [38.1] | 5/16-18 UNC | 0 - 0.25 [0 - 6.4] | 1.00 [25.4] | |
G1061-2 | 2,000 [9] | 1.95 [49.5] | 2.45 [62.2] | 1.00 [25.4] | 1.75 [44.5] | 1/2-20 UNC | 0 - 0.25 [0 - 6.4] | 1.13 [28.7] | G1066, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts |
