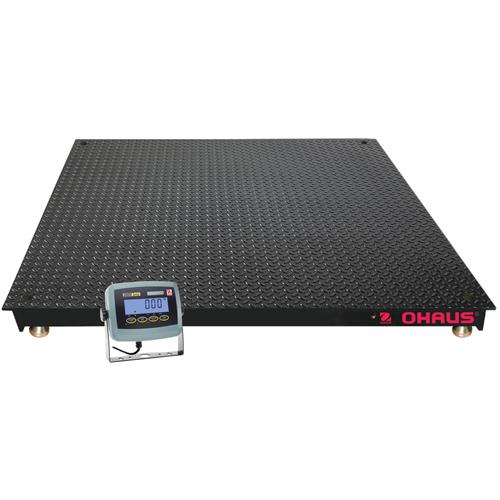

Ohaus VN31P5000L Legal For Trade 4 x 4 Floor Scale, 2500 kg x 0.5 kg

Ohaus Scales  and  Triple Beams
The OHAUS VN Series of floor scales are the value solution to your dry weighing needs in industrial and commercial applications more ...
Scales > Industrial Scales > Floor Scales
Ohaus VN31P5000L Legal For Trade 4 x 4 Floor Scale, 2500 kg x 0.5 kg

Specifications Chart View Full Detail Page

Call for more info
Download PDF
Ohaus VN31P5000L Legal For Trade 4 x 4 Floor Scale, 2500 kg x 0.5 kg
Price: $1,098.94

buy now
In Stock - Ships within 24 hours

Optional Accessories

View Features

SKU: VN31P5000L


The OHAUS VX Series is a portable low-profile floor scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses.

The OHAUS VN Series of floor platforms and scales are the value solution to your dry weighing needs in industrial and commercial applications. Its high-quality construction is designed to minimize distortion under heavy loads, and ensures years of dependable use. NTEP certification ensures consistent weighing performance. Available with ramps and mounting feet, the OHAUS VN Series floor platforms and scales offer a unique combination of value, quality and dependability your company can rely on.

Standard Features Include:
  • 5,000 lb capacity with 1 lb readability in 2 popular platform sizes: 4’ x 4’ and 5’ x 5’
  • 5mm / 0.196” thick painted carbon steel top plate with raised cross-hatch surface for added slip resistance
  • Four NTEP certified shear beam load cells protected to IP67
  • Side access NEMA 4X / IP65 dust and water protected stainless steel junction box with 16.5’ long indicator cable
  • Four self-swiveling ball-in-cup feet, with top-access leveling adjustment for easy installation
  • Internal structural bracing ensures platform rigidity during everyday use
  • Carbon steel eyebolts (included) attach to side of platform for easy lifting and positioning
  • OHAUS T31P indicator included with scale featuring:
    • Backlit LCD display with high-visibility 1-inch high digits
    • lb and kg weighing units in NTEP mode – g, oz and lb:oz also available when not in NTEP mode
    • Power using included 80-hour internal rechargeable lead acid battery or included AC adapter
    • Counting mode for warehousing and inventory applications
    • Wall mount bracket included
VN Series Floor Scales Include The Durable T31P Indicator
T31P Features:
  • Large 1” high digit backlit LCD display quickly displays results in a choice of lb or kg. The power-on unit is selectable, and either the lb or kg unit can be turned off for easier use.
  • Includes Counting Mode with a minimum Average Piece Weight of 1d, selectable sample sizes, automatic retention of last sample size used and Average Piece Weight. For installations where Counting Mode is not required, the parts counting software can be selected off.
  • Built-in bidirectional RS232C interface for printing or connection to PC. Printing intervals can be set to manual (using Print key), continuous, on stable weight, or an interval between 1 second and 60 minutes.
  • Geographical gravity correction software allows quick adjustment of calibration to local conditions without need for recalibration of the VN Floor Scale. All VN Floor Scales are factory calibrated and must be set to match local gravity situation.
  • Durable mechanical switch keypad with dedicated Print, Tare and Function keys for quick and easy operation
  • Powered using either the included AC adapter or the included 100-hour internal rechargeable battery pack.
  • Reversible back which allows installation with the floor platform and power connections exiting from the top or the bottom of the indicator housing.
  • The T31P includes four wall mounting holes for screw mounting to bench or wall – it can also be wall or table mounted using the included wall mount bracket for full tilt adjustment of the indicator.
  • Software lockouts of menu operations for setup, readout, mode, unit and print menu options. In NTEP certified operation, certain menu options are automatically locked-out.
1 Year Manufacture Warranty
Other Ohaus VN Series Economical Floor Scales

Legal For Trade 4 x 4 Floor Scale
2500 kg x 0.5 kg


You are viewing this product

Legal For Trade 5 x 5 Floor Scale
2500 kg x 0.5 kg



Model Number

VN31P5000L VN31P5000X
NTEP Certified Capacity x Readability 5000 lb x 1 lb
2500 kg x 0.5 kg
NTEP Resolution 1:5,000
Indicator T31P
Construction 5mm / 0.196 in painted carbon steel platform with ABS housed indicator
Load Cell 4 x 2,500 lb nickel-plated alloy steel shear beam IP67 protected
Feet 4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top levelling
Junction Box NEMA 4X / IP65, 304 stainless steel, with 16.5 ft / 3 m long indicator cable
Maximum Central Load 160% of maximum capacity
Safe Endload Capacity 100% of maximum capacity
Protection IP67 for shear beam load cells, NEMA4X/IP65 for junction box
Weighing Units lb or kg
Modes Weighing, Counting*
Display 1 in / 25 mm high, 6-digit, 7-segment bright white backlit LCD
Keyboard 4-button mechanical switches
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3d
Zeroing Range 0%, 2% or 100% of capacity
Span Calibration 5 lb or kg to 100% of capacity
Interface RS232C, bidirectional
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Power 9VDC, 0.5A AC adapter or internal rechargeable sealed lead acid battery (100-hour typical operation with full charge) – both included
Platform Dimensions (W x D x H) 4ft x 4ft x 3.5 in 5ft x 5ft x 3.5 in
Indicator Dimensions (W x D x H) 8.2 x 2.8 x 6.5 in / 210 x 71 x 168 mm
Scale Shipping Dimensions (W x D x H) 64.6 x 53 x 13.4 in
1640 x 1350 x 340 mm
75.4 x 64 x 13.4 in
1915 x 1626 x 340 mm
Net Weight 282 lb / 128 kg 419 lb / 190 kg
Shipping Weight 333 lb / 151 kg 533 lb / 242 kg

Optional Accessories

Ohaus STP-103 Palm-Sized Thermal Printer
more info
Ohaus STP-103 Palm-Sized Thermal Printer
more info
Price: $663.30
In Stock
btn buy
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
Ohaus 80252565 Floor Ramp 4 ft Wide for VN31P5000L Floor Scale
more info
Ohaus 80252565 Floor Ramp 4 ft Wide for VN31P5000L Floor Scale
more info
Price: $698.40
In Stock
btn buy
Ohaus 80252565 Floor Ramp 4 ft Wide for VN31P5000L Floor Scale
Ohaus SF40A Portable Dot-Matrix Impact Printer
more info
Ohaus SF40A Portable Dot-Matrix Impact Printer
more info
Price: $867.60
In Stock
btn buy

OHAUS Value in a Full-Featured, Portable Printer
The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.

Standard Features Include

  • Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
  • Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
  • Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.

Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
