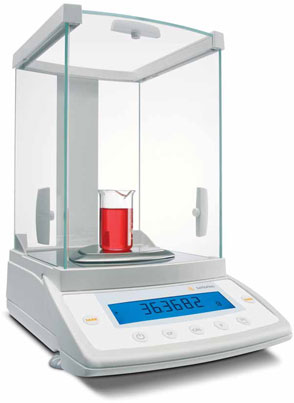

Model CPA2P
(Design 1)
Capacity: 0.5 / 1 / 2 g polyrange
Readability: 0.001 / 0.002 / 0.005 mg
Weighing Modes: carats, grains, milligrams, ounces, pennyweight, grams, troy ounces
Additional Features: parts counting, RS-232C, Internal calibration

Polyrange allows high resolution (0.5g) with heavier tare containers.  The Polyrange offers greater readability for smaller sample weights.  Here's how it works - In the high resolution mode and your weighing samples between 0 to 0.5 grams the CPA2P display will increment in 0.001mg intervals.  When the capacity on the platform is in the range of 0.5 to 1g the display resolution will increment in 0.002mg intervals.  Finally if your weighing samples 1 to 2 g the display resolution will increment in 0.005 mg intervals.  So as the weighing capacity increase the display resolution decreases.  No matter how the balance is used the total cumulative weighing capacity on the weighing platform can never exceed 2 grams.

Standard built-in motorized calibration weight insures the greatest precision at a touch of the button.  Unique all glass draft shield with smooth-action doors makes using the CPA2P fast and easy to use.  The special stainless steel filter pan and rotatable cover virtually eliminates static electricity and enables faster loading of filters. Tactile keypad, standard RS-232 interface for connection to a Sartorius Printer, PC or automated system.  Large (0.65 inch) easy-to-read backlit display with extra large digits lessens the chance of recording an incorrect weight.  Built-in application programs include counting, percent weighing, net-total formulation, animal weighing and mass unit conversion by toggling between 2 units. Professional laboratory weighing with new standards in design & performance is here.

Model CPA2P-F
(Design 2)
Capacity: 0.5 / 1 / 2 g polyrange
Readability: 0.001 / 0.002 / 0.005 mg
Weighing Modes: carats, grains, milligrams, ounces, pennyweight, grams
Additional Features: parts counting, RS-232C, Internal calibration

Standard built-in motorized calibration weight insures the greatest precision at a touch of the button. The CPA2P-F is specially engineered and designed for weighing laboratory filters up to 120mm for air quality and emission testing applications.  The special stainless steel filter pan and rotatable cover virtually eliminates static electricity and enables faster loading of filters.  Tactile keypad, standard RS-232 interface for connection to a Sartorius Printer, PC or automated system.  Large (0.65 inch) easy-to-read backlit display with extra large digits lessens the chance of recording an incorrect weight.  Built-in application programs include counting, percent weighing, net-total formulation, animal weighing and mass unit conversion by toggling between 2 units.  Professional laboratory weighing with new standards in design & performance is here.

Sartorius innovative CPA Series body style incorporating the highly advanced mechatronic monolithic weigh cell technology yields fast, repeatable, stable and accurate results.

Polyrange allows high resolution (0.5g) with heavier tare filters.  The Polyrange offers greater readability for smaller sample weights.  Here's how it works - In the high resolution mode and your weighing samples between 0 to 0.5 grams the CPA2P-F display will increment in 0.001mg intervals.  When the capacity on the platform is in the range of 0.5 to 1g the display resolution will increment in 0.002mg intervals.  Finally if your weighing samples 1 to 2 g the display resolution will increment in 0.005 mg intervals.  So as the weighing capacity increase the display resolution decreases.  No matter how the balance is used the total cumulative weighing capacity on the weighing platform can never exceed 2 grams.

Model CPA26P
(Design 3)
Capacity: 0.5 / 1 / 2 g polyrange
Readability: 0.001 / 0.002 / 0.005 mg
Weighing Modes: carats, grains, milligrams, ounces, pennyweight, grams
Additional Features: parts counting, RS-232C, Internal calibration

SWith an adjustable fine range from 5 g with 2 µg readability and a maximum capacity of 21 g, this microbalance is ideal for weighing USP-defined minimum allowable sample quantities from 5 to 10 mg. The large round weighing pan (diameter: 50 mm) facilitates placement of samples.

Model CPA1003S, CPA1003P
(Design 6)
Modes: Carats, grains, milligrams, pounds, ounces, pennyweight, grams, troy ounces, kilograms
Additional Features: parts counting, RS-232C
CPA1003S - 1010 g capacity x 0.001 g readability
CPA1003P - 500 / 1010 g capacity x 0.001 / 0.01 g readability

Model CPA423S, CPA323S, CPA653, CPA223A
(Design 7)
Modes: Carats, grains, milligrams, pounds, ounces, pennyweight, grams, troy ounces, kilograms
Additional Features: parts counting, RS-232C
CPA423S - 420 g capacity x 0.001 g readability
CPA323S - 320 g capacity x 0.001 g readability
CPA223 - 220 g capacity x 0.001 g readability
CPA623S - 620 g capacity x 0.001 g readability

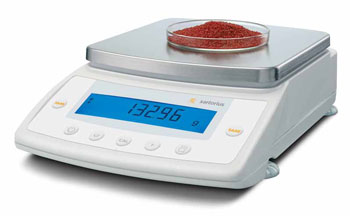

Models CPA4202S, CPA3202S, CPA2202S, CPA8201, CPA6202S, CPA6202P, CPA10001, CPA5201
(Design 8)
Modes: Carats, grains, milligrams, pounds, ounces, pennyweight, grams, troy ounces, kilograms
Additional Features: parts counting, RS-232C
CPA6202S - 6200 g capacity x 0.01 g readability
CPA6202P - 1500 / 3000 / 6200 g capacity x 0.01 / 0.02 / 0.05 g readability
CPA4202S - 4200 g capacity x 0.01 g readability
CPA3202S - 3200 g capacity x 0.01 g readability
CPA2202S - 2200 g capacity x 0.01 g readability
CPA8201 - 8200 g capacity x 0.1 g readability
CPA5201 - 5200 g capacity x 0.1 g readability
CPA10001 - 10000 g capacity x 0.1 g readability

Models CPA5202S-DS, CPA2202S-DS
(Design 9)
Modes: Carats, grains, milligrams, pounds, ounces, pennyweight, grams, troy ounces, kilograms
Additional Features: parts counting, RS-232C, large round weighing pan with 130" inner circle diameter
CPA5202S-DS - 5200 g capacity x 0.01 readability
CPA2202S-DS - 10000 g capacity x 0.01 readability

The Sartorius YDP03-OCE data printer has a built-in real-time clock and statistics programs -- designed for Sartorius balances equipped with an RS-232 interface.  Text and data are printed with up to 24 characters per line and the unit is equipped with a real-time clock.  A high contrast LCD shows the date or time as well as the current transaction number and integrated rechargeable batteries with battery level indicator.  The printer runs on the balance's power -- no separate power supply is necessary.  Easy to change paper roll and ink ribbon cassette.

The Sartorius YDP03-OCE data printer meets the quality standards of the chemical and pharmaceutical industries in compliance with the requirements of GLP (Good Laboratory Practice) and GMP(Good manufacturing Practice).

In addition to recording individual weighing data the data printer can generate a statistical evaluation of weighing data.  All values transferred from an on-line weighing instrument are stored.  The following can be computed/printed out.

• Number of weighing operations
• Mean value
• Standard deviation
• Variation coefficient
• Minimum value/weight
• Maximum vale/weight
• Difference between the maximum and minimum value/weight

The Sartorius YDP03-OCE data printer is powered by the Sartorius Balance via the printer cable that is supplied with the YDP03-OCE data printer.  Turning ON the Sartorius balance when the printer is connected will automatically turn ON the printer.  The rechargeable batteries with be charging when printer is not in use, but the balance is turned ON.  The Sartorius YDP03-OCE uses a standard paper roll 57.5 mm ±0.5mm with a maximum diameter of 65mm.

• Dimensions: 6.2 W x 9.1 H x 3.1 D inches (158 x 230 x 80 mm)
• Print Speed: 2.5 lines/second
• Characters per line: 24
• Operating Temperature: 0 to 40°C / 32 to 104 °F
• Power: Runs on the balance's power, no separate power supply necessary
• Equipped with printer interface cable for connecting the printer to the Sartorius balance, Black ink ribbon cassette installed in unit and 4 NiCd rechargeable batteries and 1 roll of paper.
