Mark-10 TFSM500 Test Stand Mark-10 TFSM500H Test Stand

Mark-10 TFSM500 / TFSM500H Motorized Test Stands Price: $2799 currently in stock Shipping Weight: 40 lbs. (estimate shipping cost) Other Force Testing Products Other Torque Testing Products Other Mark-10 Products Quantity:   TFSM500 TFSM500H Digital Travel Display (TFS001), Add $712 Limit Switch Kit (TFSM002), Add $380 Overload Protection Module (11-1042), Add $185 Set Point Cable - Gauge to test stand (09-1090), Add $137 Communication Cable - travel display to Mitutoyo (09-1066), Add $71 Horizontal/Wall Mounting Kit for TSF and TST stands (TSF002), Add $190       Compare all the Mark-10 Test Stands Click here

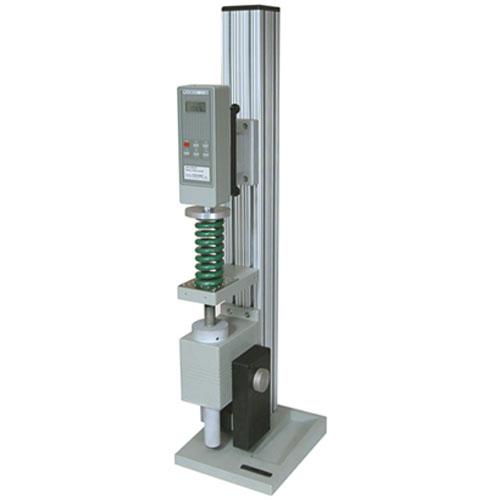

The Mark-10 TSFM500 is designed for compression and tension testing of springs, packaging, metals, fabrics, and other items requiring up to 500 lb of force. Generous clearance and throat depth accommodate a broad range of sample shapes and sizes. The stand features a remote control unit for added safety during testing. The TSFM500’s durable and rigid column minimizes bend, making it particularly well suited for precision spring testing.

The operator can select from a speed range of 0.2 – 5.5 in/min. Customized speed ranges are available (contact Mark-10 for more information). Other features include a manual fine adjustment knob and a stepper motor that prevents speed variation with load, making testing more precise and repeatable. Use any Mark-10 force gauge and force gripping fixtures to create a complete testing solution.

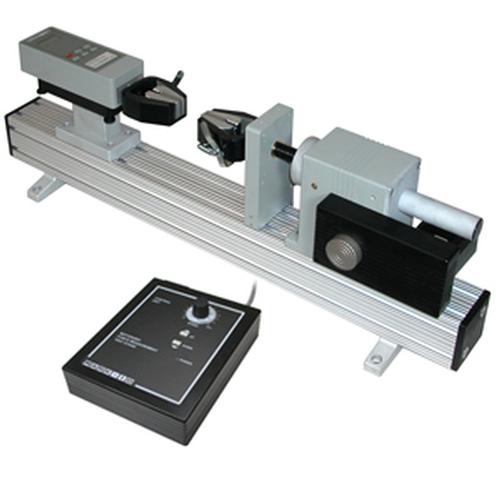

Available in vertical and horizontal orientations.

Features / Specifications:

• Maximum force: 500 lb [2200 N]
• Maximum travel: 4" [102 mm]
• Speed range: 0.2 - 5.5 in/min [5 - 140 mm/min]
• Speed accuracy: ±5% of setting, ±0% variation with load
• Loading table with 25 #10-32 UNF holes for fixture mounting
• Remote control console with a 3' [1 M] cable
• Universal power supply: 80-250 VAC
• Manual travel knob Mounting holes for bench mounting
• Base may be removed for alternative mounting
• Compatible with all Mark-10 force gauges, accessories and grips
• The Mark 10 TSFM500 / TSFM500H is supplied with four hooks (small, medium, large, and extra large), 1/2-20F adapter plate, 2" and 3" compression plates, two couplers (#10-32 coupler and 5/16-18), and wrench set.

• Weight (w/o optional equipment): TSFM500: 36 lb [16.3 kg], TSFM500H: 30 lb [13.6 kg]

Optional Equipment

• A wide range of force gauges and gripping fixtures
• Digital travel display - 6" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.001" [0.03 mm] accuracy, SPC output for automated data collection
• Limit switch kit - Set of upper and lower adjustable solid state limit switches. Repeatable to within 0.001" [0.03 mm].
• Horizontal / wall mounting kit - Set of mounting legs that attach to the test stand column in place of the base
• Overload protection module - Protects the force gauge against accidental overloads during motorized tests. Adjustable from 20 - 110% of gauge's capacity. Compatible with all Mark-10 force gauges with outputs.
• Set point cable - Stops test stand travel at programmable high and low set points for tension and compression forces, programmed on a compatible force gauge.
• Custom modifications - Special modifications are available, including custom-designed fixtures, increased column length, and more. Call 800-336-5900 for more information.
• Custom speed ranges - Contact us at 800-336-5900 for complete details.

Limit switch kit Set of upper and lower adjustable solid state limit switches. Repeatable to within 0.001" [0.03 mm].

Digital travel display 6" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.001" [0.03 mm] accuracy, SPC output for automated data collection

Dimensions:

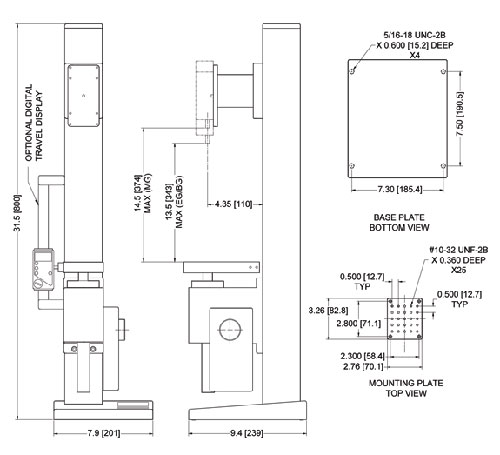

TSFM500:

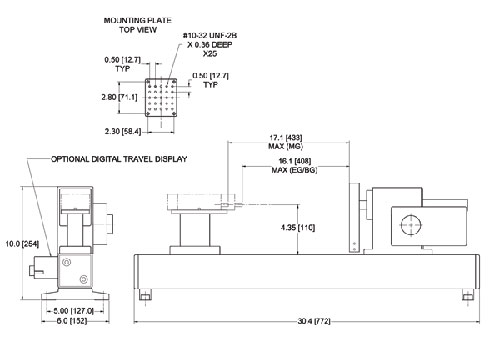

TSFM500H:
