Mark-10 CT Closure Tester / Cap Torque Tester


Mark 10 CTA Closure Tester / Cap Torque Tester

FREE UPS Ground Shipping with any Mark-10 purchase!

Series CTA Cap Torque Testers present a simple, accurate, and economical solution for manual cap torque testing. These cap torque testers are ideal for lab or production use for closure manufacturers, bottlers, food and beverage companies, and others. The cap torque tester captures peak readings for application and removal torques. Data output via RS-232 and Mitutoyo enable reporting and analysis of test data via PC or other data collector. Standard adjustable posts effectively grip a broad range of container shapes and sizes. Optional flat jaws and adjustable jaws are available for unique samples. Innovative mechanical overload protection provides peace of mind. The CTA cap torque tester features an aluminum housing, rugged construction and close attention to engineering you'd expect from Mark-10.

Features

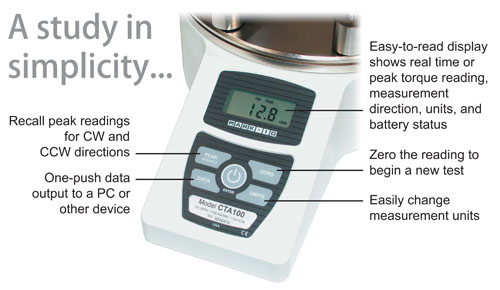

  • Measures in real time or peak torque modes
  • Captures peak readings for application and removal torques
  • Data output via RS-232 and Mitutoyo
  • Selectable units of measurement
  • Movable threaded sample gripping posts
  • Accepts samples up to 7.5" (189.4 mm) dia.
  • 3 torque capacities available
  • Operates on a 9V battery or AC adapter
  • Accuracy: ±0.5% of full scale ±1 digit
  • Safe overload: 150% of capacity
  • Weight: 6.5 lbs (2.9 kg)
  • Warranty: 3 years
  • CE mark

Mark 10 CTA Closure Tester / Cap Torque Tester
All Models: $1230.25

currently in stock
Shipping Weight: 10 lbs. (estimate shipping cost)
Other Force Testing Products
Other Torque Testing Products
Other Mark-10 Products


Mark 10 CT001 Sample Gripping Jaws Sample Gripping Jaws (CT001), Add $71.25
Mark 10 CT003 Adjustable jaws, pair Adjustable jaws, pair (CT003), Add $332.50
Mark 10 09-1048A RS-232, 9-pin Cable RS-232, 9-pin Cable (09-1048A ), Add $71.25
Mark 10 Carrying case for CTA CT002  Carrying case for CTA (CT002 ), Add $185.25
Mark 10 RSU100 Communication adapter, RS-232 to USB  Communication adapter, RS-232 to USB (RSU100), Add $118.75
Mark 10 15-1004 MESURGauge Data Collection Software  15-1004 MESURGauge Data Collection Software, Add $470.25

Model CTA12 CTA50
$1230.25
CTA12
$1230.25
CTA50
Capacity x Resolution 12 x 0.01 lbFin
140 x 0.1 kgFmm
135 x 0.1 Ncm
50 x 0.05 lbFin
580 x 0.5 kgFmm
570 x 0.5 Ncmm
Accuracy ±0.5% of full scale ±1 digit
Power AC or non-rechargeable 9V battery, with Intelligent Power Management System (IPM). IPM warns the user via a ?LO BAT? indicator and then will power off the gauge
Battery Life 30 hours of continuous use
Selectable units of measurement lbFin, kgFmm, Ncm
Safe overload: 150% of full scale (display shows ?----? at 110% and above)
Weight 6.5 lb [2.9 kg]
Environmental Requirements 40° F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty 3 years (see individual statement for further details)
Wide sample size range Portable and flexible for a wide range of applications
Peak memory For application and removal torque
Data outputs RS-232 and Mitutoyo (Digimatic)
Moveable posts Accommodate a wide range of samples
Push-button calibration Simple and quick calibration procedure
* 220V models available - Please Call (800) 832-0055 for more Info

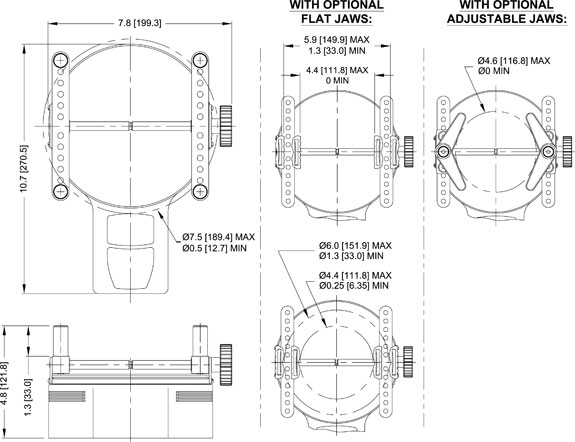

Dimensions:
