CAS LP-1000N Label Printing Scale



Specifications Chart

Legal for Trade

Take CAS's most popular label printing scales, the CAS LP-1000 series, make some improvements, and you have the new CAS LP-1000N and LP-1000NP label printing scales -- the best scale on the market today in its class. A feature rich, easy to use label printing scale. With its ability to use the most popular label formats, the CAS LP-1000N will be perfect for delis, convenience stores, meat counter, bakery, grocery stores and more.

  • Legal for Trade
  • Includes RS232 interface
  • Free software included
  • 4000 PLU (item) capacity
  • 54 preset keys
  • 30 standard label formats plus 6 custom labels
  • Continuous strip label
  • Print ingredients with labels 8000 & 8010
  • Print label with backing paper
  • Net weight statement
  • Pre-pack mode for automatic weighing / labeling
  • High speed printer
  • Print detailed reports on label of full page
  • Print inhibition (every field)
  • Password function
  • Diagnostic feature
  • Spanish printing
  • Flash ROM
  • Options: pole mount, interface cable, optional 2nd platter with drainage hole, and keyboard wet cover
  • Owner's Manual

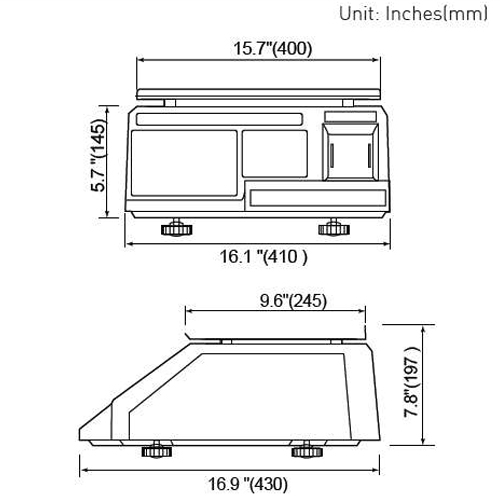

scale dimension

CAS LP-1000N Label Printing Scales
currently in stock
Shipping Weight: 32 lbs. (estimate shipping cost)
Other Retail use Scales
Other CAS scales
Retail Scales - Advanced Search

FREE UPS Ground Shipping
(within the 48 continental US States)

Model LP-1000N LP-1000NP

FREE 1 case of Labels with Purchase

FREE 1 case of Labels with Purchase

Weighing Capacity 30 x 0.01 lbs
Legal for Trade NTEP # 92-169
Display Digits 5/6/7 (Weight / Unit Price / Total Price)
Display Type VFD (vacuum fluorescent display)
Measurement Type Load Cell
Printing Type thermal print
Preset Data 4000 PLU, 1000 ingredient messages (50 characters x 8 lines)
Data Transfer PC to scale, Scale to PC, Scale to scale
Label Size 58 x 30 mm - 58 x 100 mm
Power Source

AC 110/120/220/240V, 50/60 Hz

Interface RS-232C
Power Consumption Max 100W
Operating Temp 14 to 104 degrees F
Platter Size 15.75 (W) x 9.65 (D) / 400 (W) x 245 (D) 15.75 (W) x 9.65 (D) / 400 (W) x 245 (D)
Dimensions 116.1 (W) x 16.9 (D) x 7.8 (H) 116.1 (W) x 19.3 (D) x 23.6 (H)
PLU Data Commodity name, message, item #, tare weight, unit price, group code
Printing Data Commodity name, message, packed-on date, sell-by date, unit price, weight, total price, store name and address, serial #, time, PLU #, group code
Bar Code Formats I2of5, EAN13

Label Formats

CAS LP Labels

Label # Label Type Label Size Labels per Roll Price Per Roll Price Per Case
(12 Rolls)
LST-8000 Non-UPC 58 x 30 mm 1000 $8.00


LST-8010 UPC 58 x 40 mm 700 $8.00


LST-8020 Ingredient 58 x 60 mm 500 $8.00


LST-8030 Non-UPC Safe Handling 58 x 50 mm 600 $8.00


LST-8040 UPC Safe Handling 58 x 60 mm 500 $8.00
