Setra Quick Count Counting Scales Prime Scales
Authorized Dealer
The extremely high accuracy inherent in Setra’s proprietary variable capacitance ceramic load cell is now available in Quick Count, a moderately priced, easy to use counting scale.

404111, 404112, 404113

404114, 404115, 404116, 404117

Specifications Chart

The extremely high accuracy inherent in Setra’s proprietary variable capacitance ceramic load cell is now available in Quick Count, a moderately priced, easy to use counting scale.

The simple six key design allows the user to master scale operation in minutes, reducing training time and increasing productivity

Thanks to an internal resolution of 1 part in 500,000, the Quick Count requires sample weights much smaller than those required by scales using more conventional weighing sensors. Lighter sample weights reduce sampling time and make hand-counting errors less likely to occur. This results in more efficient transaction processing and faster, more accurate inventory auditing

All scales convert to any of six weighing units at the touch of a button. Count or weight information can be transmitted to a printer or to a computer via the standard RS-232 serial data interface. Integral overload and shock protection combined with an elegantly simple load cell design makes the Quick Count rugged, reliable and accurate. Also, its affordable price make it an exceptionally good value.

Features and Benefits
  • Accuracy monitor enables the supervisor to select special settings that check the sampling process and, if necessary, cause the scale to prompt the operator if the number of pieces used in the sample is too small
  • Programmable RS-232 output with Script-Coder™ allows a custom label design to be printed to a thermal label printer.
  • Bidirectional data communications allow piece weights and commands to be downloaded from a computer.
  • Serviceability. Thanks to a modular design, Quick Count scales can be serviced on-site by an Authorized Setra Service Technician.
  • Stability indicator displays an ‘OK’ icon to confirm that the scale is stable and weight measurements are accurate.
  • Large LCD display for quick and easy reading and increased productivity.


Setra Quick Count Counting Scales

Battery Kits Must be Ordered With Scale

Setra SCBATKIT Battery kit for Super Count 404620 included - Must order with Scale, add $227.65

All other Accessories can be ordered separately

Setra 500A 409676 Barcode Scanner, add $450.00

Setra 404910 ScriptCoder Label Program, add $136.10

Setra 409901 RJ45-DB9 CONNECTOR - Scale to PC, add $38.35

Setra 450 printer 401190 direct thermal barcode printer, add $618.40

Setra 401915 Direct Thermal lables 4 x 3 inch 500 per roll for Setra 450 - 1 roll, add $48.25

Setra 401916 Direct Thermal lables 4 x 4 inch 375 per roll for Setra 450 - 1 roll, add $48.25

Setra 401907 Direct Thermal 300 foot Roll 2.25 inch wide for Setra 300- 1 roll, add $23.51

Setra 401908 Direct Thermal 1000 lables 2.25 x 1.25 inch for Setra 300- 1 roll, add $33.41

Setra 401909 Direct Thermal 300 lables 2.25 x 4 inch for Setra 300- 1 roll, add $30.93

Models 404111 404112 404113 404114 404115 404116 404117
Setra Quick Count 404111
Battery kit
add $227.65
Setra Quick Count 404112
Battery kit
add $227.65
Setra Quick Count 404113
Battery kit
add $227.65
Setra Quick Count 404114
Battery kit
add $227.65
Setra Quick Count 404115
Battery kit
add $227.65
Setra Quick Count 404116
Battery kit
add $227.65
Setra Quick Count 404117
Battery kit
add $227.65
Capacity x Readability 2.2 x 0.00002 lb 5.5 x 0.00005 lb 11 x 0.0001 lb 27 x 0.0005 lb 55 x 0.001 lb 75 x 0.002 lb 110 x 0.002 lb
1 kg x 0.01 g 2.5 kg x 0.02 g 5 kg x 0.05 g 12.5 kg x 0.2 g 25 kg x 0.5 g 34 kg x 1 g 50 kg x 1 g
Internal Resolution To 1 part in 500,000
COUNTING ACCURACY Selectable from 95% to 99.99%
Units of Measure Pounds, grams, ounces, pennyweights,troy ounces, carats, grains (user definable)
MINIMUM SAMPLE SIZE Selectable from 1 to 999
DISPLAY UPDATE RATE Selectable, up to 5 times per second
COUNTING CAPACITY 999,999 pieces
Data Communications Bidirectional RS232
SELECTABLE BAUD RATES 300, 600,1200, 2400, 4800, 9600
PAN Stainless steel
OPERATING TEMPERATURES 40°to 100°F (5° to 43°C)
Power Input - 110 VAC/60 Hz - Output - 16.5 VDC @ 1000 ma
Pan Size W x D 5" diameter 6.25" diameter 11" x 14"
Dimensions W x D x H 14" x 15.5" x 6"
Shipping Weight 27 lb 31 lb
Limited Warranty Two years

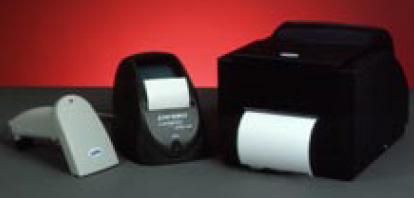

QuickCount OPTIONS

  • ScriptCoder Label Design Software & Cable Kit Simplifies the programming of the RS-232 output using a PC program which converts text and scale data fields into ASCII codes that can be downloaded into the scale through the RS-232 port.
  • DYMO Labelwriter Setra 300 Printer With one of the smallest footprints of any direct thermal bar code printer, it will print up to seven barcode fields or 23 text fields on one label. Capable of printing 23 bar code symbologies when connected to the Super II, it defaults to Code 3 of 9. The printer is whisper quiet and accepts labels that are 2.25 inches wide by 1.25 inches or 4 inches in length. The RS232 cable to connect to the Super II scale is standard along with a sample roll of three hundred 4 inch labels.
  • Setra 400 Direct Thermal Printer The Setra 400 printer is a high performance, direct thermal barcode printer. The printer features a positive-locking, self-aligning print head mechanism that is perfect for printing shipping labels, retail labels, package labels, and many other types and styles of labels. The printer accomodates roll-form media up to 5 inches in diameter and can be easily ajusted to work with rolls from 1 to 4 inches in width. The Setra 400 offers maximum performance at a market-leading low price.
  • Setra 500 Barcode Scanner Setra’s 500 barcode scanner is durable and ergonomically designed, it is the best value handheld barcode scanner in its class. The 500 has a high intensity aiming line and captures barcodes from as far away as 200 mm. The 500 is easy to aim, it scans barcodes in any lighting environment and scans virtually all 1-D bar codes. The 500 is a very rugged scanner, able to withstand drops onto concrete of up to 1.5 m (4.9 ft), designed for use in industrial environments.
  • Internal Rechargeable Battery For portable operation, the QuickCount can be powered by an internal, 12 volt, 2.3 Ah, lead acid battery. When the battery is fully charged, it will operate the scale for a full shift and will recharge when the scale is left plugged into an electrical outlet for several hours.
