Ohaus Pioneer Analytical and Precision Balances
Authorized Dealer
The OHAUS Pioneer Series of analytical and precision balances (Internal and Extenal Calibration models) are designed for basic routine weighing in a variety of laboratory, industrial and education applications. With the right combination of performance and features, the OHAUS Pioneer offers uncomplicated performance for all your basic weighing needs.
Analytical Balances >> Ohaus Scales

PA84, PA124, PA224

PA163, PA323, ,PA523

PA1602, PA2202, PA3202, PA4202, PA2201, PA4201

View Specifications Chart

Call now

The Best Balance For Basic Weighing!

The OHAUS Pioneer Series of analytical and precision balances are designed for basic routine weighing in a variety of laboratory, industrial and education applications. Now with both internal and external calibration models and the right combination of performance and features, the OHAUS Pioneer offers uncomplicated performance for all your basic weighing needs.

Standard Features Include:

  • Easy to Clean Analytical Draftshield ? Pioneer?s draftshield is designed with all glass panels, including three sliding doors. All panels are easy to remove and replace, and together with a stainless steel bottom, make it fast and easy to clean.
  • Upfront Level Indicator ? Pioneer has been designed with an up-front level indicator, so that users can quickly ensure the balance is level prior to use
  • Bright Backlit Display ? The bright backlit LCD display is easy-to-view in any environment.
  • Selectable Environmental Settings ? Three filter modes and adjustable zero tracking adjust balance sensitivity to environmental disturbances, or application requirements.

Removable Doors Provide Convenient Access and Easy Cleaning

To address the ease of cleaning requirement often expressed by routine users, Pioneer?s draftshield has been designed with easy to remove doors and panels. Disassembly takes just seconds and all components including the balance housing can be quickly wiped clean. Periodic cleaning made easy helps avoid sample contamination and extends product life. In addition, a standard in-use cover provides added protection against accidental spillage and helps minimize the chance of damage to the display and keypad. Should breakage occur, each replacement door or panel can be installed in seconds.

Backlit Display Bolsters Visibility

The bright backlit LCD display provides ample lighting, making the display very easy-to-view in laboratories with dim lighting

Selectable Environmental Settings For Working in Practically Any Condition

To help adapt the balance to real life working conditions, Pioneer is designed with selectable environmental settings. When working in harsh environments, the balance can be adjusted to compensate for vibrations and other disturbances. Conversely, the balance can be adjusted for working in slow filling applications where sensitivity is a must.

Standard Features:

  • Integral Security Bracket: Allows you to secure your balance to a workstation to prevent unwarranted movement or theft
  • RS232 Interface: Pioneer?s RS232 allows connection to an Ohaus printer or a computer. Sends Balance ID plus spaces for recording User ID, Project ID, time and date
  • Integral Menu Lock: A combination of software and a mechanical switch locks menus, including calibration
  • Weigh-Below Hook: Pioneer?s built-in weigh-below hook allows you to suspend an item below the balance to calculate density/specific gravity
  • Up-Front Level Indicator: A quick glance at the up-front level indicator helps to ensure that the balance is level prior to each use
  • Multiple Application Modes and Units: Pioneer features basic weighing, parts counting and percent weighing, density weighing, and dynamic weighing and 15 international weighing units including one custom unit
  • Backlit Display: Enables optimal viewing of results in various lighting conditions
Ohaus Pioneer Analytical and Precision Balances

FREE UPS Ground Shipping
(within the 48 continental US States)

For a limited time only
Add to Cart to see Price


Ohaus 80252571 RS232 Cable and Adapter, 80252042 Printer To Defender 5000 & 7000 With T71P, T51P, add $132.30

Ohaus 80251396 Auxiliary Display Kit, add $45.90

Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P, add $132.30

Ohaus 12122603 - Interface Cable, RS9 M/F, 1.5m for SF40A Printer, add $132.30

Ohaus 80500572 - RS232 Adapter Scout Pro Interface Kit for SF42 Printer, add $45.90

Ohaus 80252581 Cable for 802521992 Thermal Printer , add $132.30

Ohaus 83020221 - In-Use Display Cover for Pioneer Balances, add $31.50

Ohaus STP-103 Palm-Sized Thermal Printer, add $532.80

Ohaus SF40A Portable Dot-Matrix Impact Printer, add $684.00

Ohaus 80253384 Solids Density Determination Kit for Ohaus new Explorer and Discovery, add $534.60

Ohaus 80500525 RS-232 Cable PC 9 Pin , add $132.30

Ohaus 80850000 Security Device (76288-01), add $61.20

Ohaus SW12W TAL Win Wedge Software (80850080), add $374.40


More info

Other Standard Features and Equipment

Fixed integral weigh below hook, user selectable span calibration points, software rest menu, stability indicator, auto tare, user selectable communication setting, user selectable printing options, up-front level indicator, menu and calibration locks, mechanical and software overload/underload protection, integral weigh below hook, security bracket, stainless steel platform, backlit LCD
Models with
external Calibration
PA84 PA124 PA224 PA163 PA323 PA523 PA1602 PA2202 PA3202 PA4202 PA2201 PA4201
PA4201C
$1,433.10
ClickPrice
PA4201C
$1,720.40
ClickPrice
PA4201C
$1,910.80
ClickPrice
PA4201C
$859.35
ClickPrice
PA4201C
$1,003.00
ClickPrice
PA4201C
$1,195.10
ClickPrice
PA4201C
$772.65
ClickPrice
PA4201C
$907.80
ClickPrice
PA4201C
$1,099.90
ClickPrice
PA4201C
$1,242.70
ClickPrice
PA4201C
$749.70
ClickPrice
PA4201C
$880.60
ClickPrice
Models with
Internal Calibration
PA84C PA124C PA224C PA163C PA323C PA523C PA1602C PA2202C PA3202C PA4202C PA2201C PA4201C
PA4201C
$1,611.60
ClickPrice
PA4201C
$1,898.90
ClickPrice
PA4201C
$2,090.15
ClickPrice
PA4201C
$1,038.70
ClickPrice
PA4201C
$1,182.35
ClickPrice
PA4201C
$1,373.60
ClickPrice
PA4201C
$952.00
ClickPrice
PA4201C
$1,086.30
ClickPrice
PA4201C
$1,278.40
ClickPrice
PA4201C
$1,421.20
ClickPrice
PA4201C
$913.75
ClickPrice
PA4201C
$1,045.50
ClickPrice
Capacity x Readability (g) 85 x 0.0001 120 x 0.0001 220 x 0.0001 160 x 0.001 320 x 0.001 520 x 0.001 1600 x 0.01 2200 x 0.01 3200 x 0.01 4200 x 0.01 2200 x 0.1 4200 x 0.1
Repeatability std (g) 0.0001 0.001 0.01 0.1
Repeatability std (g) 0.0002 0.0003 0.002 0.02 0.1
Application Modes Weighing, Parts Counting, Percent Weighing, Animal/Dynamic Weighing, Density Determination
Weighing Units mg, g, ct, oz, dwt, tical, tola, mommes, baht, grain, mesghal, Newton, ozt, custom unit g, kg, lb, ct, oz, dwt, tical, tola, mommes, baht, grain, mesghal, Newton, ozt, custom unit
Platform Size 3.54 in / 9 cm diameter 4.72 in / 12 cm diameter 7.1 in / 18 cm diameter
Cal Weight-Span 50,80g 50,100g 100,200g 100,150g 200g,300g 200,500g 1,1.5kg 1,2kg 2,3kg 2,4kg 1,2kg 2,4kg
Cal Weight-Linearity 20/60g 50/100g 100/200g 100/150g 150/300g 200,500g 1/1.5kg 1/2kg 1.5/3kg 2/4kg 1/2kg 2/kg
Taring Time 1 second
Stabilization Time 3 seconds
Draftshield 7.3 in / 18.5 cm inside height -
Operating Conditions 50° F / 10° C to 104° F / 40° C at 10% to 80% relative humidity, non-condensing, up to 4000m above sea level
Storage Temperature -40° F / -40° C to 158° F / 70° C at 10% to 80% relative humidity, non-condensing
Net Weight 10.0 lb / 4.5 kgt 7.3 lb / 3.3 kg
Shipping Weight 15.2 lb / 6.9 kg 11.8 lb / 5.4 kg

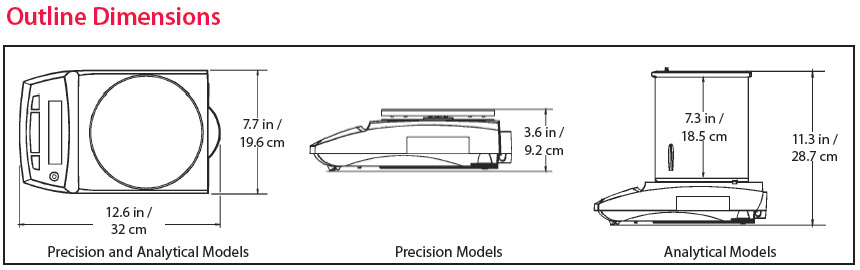

Balance Dimensions W × H × D 7.7 × 11.3 × 12.6 in
19.6 × 28.7 × 32 cm
7.7 × 3.6 × 12.6 in
19.6 × 9.2 × 32 cm
Carton Dimensions W × H × D 19.5 × 15.5 × 20.6 in
49.5 × 39.5 × 52.2 cm
19.5 × 15.5 × 12.8 in
49.5 × 39.5 × 32.7 cm
