Smart Functionality, Durability, OHAUS Quality and Value
The OHAUS DefenderTM 5000 Series is a feature-rich line of bench scales, combining an ABS plastic T51P indicator with painted steel bases and mounting brackets. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 5000 offers a multifunctional indicator with multiple weighing units and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 can meet the needs of demanding industrial operations.
Standard Features Include:
- Painted steel bases with ABS indicator
- 10,000-12,500d default resolution for square bases, 5,000-7,500d default resolution for rectangular bases
- 1:5,000 NTEP Certified / Measurement Canada Approved for square bases, up to 1:3,000 for rectangular bases
- Quick display of results using large LCD with high-contrast white backlight
- Temporary display of 10x readability in weighing mode using quick key press
- Easy to operate with 4-key membrane keypad with raised tactile keys
- Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), metric tonnes and user-definable custom unit
- Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, and Display Hold.
- Internal power supply with universal line cord or 6 ?C? batteries (80 hour battery life) ? optional NiMH internal rechargeable power pack available
- Includes RS232 interface with GMP/GLP data output including date and time
- Base and indicator connected using quick connect plug
- Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS485/422
Features
T51P Indicator: ABS plastic housing with internal rib reinforcements, reversible rear cover, backlit LCD weight display, checkweighing indication (green, yellow, red), membrane keypad with raised tactile keys, built-in bi-directional RS232 with manual/ continuous/interval printing, external tare input, hardware configuration lockout switch, internal switching power supply with line cord and battery power using 6 ?C? cell batteries.
|
|
|
Other Features
Zero point calibration, calibration test, span or linear calibration, selectable auto-zero tracking range, selectable stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data after power-off, Geo gravity adjustment, selectable key beep, key function lock, menu lock, selectable power-on and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, over- and underweight, overload and underload conditions. Configuration menus for PRINT1, PRINT2, COM1, COM2, and I/O.
Compliance
- Legal for Trade: NTEP (CC No. 08-039 for indicator; 01-048A1 for square base; 99-203A3 for rectangular base) Measurement Canada (Approval No. AM-5687 for Indicator; AM-5719 for square bases; AM-5675 for rectangular bases)
- Safety and EMC: cULus 2005/95/EC low voltage directive: EN60950-1:2001, FCC Part 15 Class A 2004/108/EC Compliant to Directive 202/96/EC on waste electrical and electronic equipment (WEEE)
- Quality: OHAUS quality management system registered to ISO 9001:2008
|
Low-Profile Rectangular Scales
Model Number |
D51P15HR5 |
D51P30HR5 |
D51P60HR5 |
D51P60HL5 |
D51P100HL5 |
D51P150HX5 |
D51P300HX5 |
$948.68
|
$948.68
|
$948.68
|
$1,096.68
|
$1,096.68
|
$1,163.31
|
$1,286.12
|
Capacity x Default Readability |
30 x 0.005 lb |
60 x 0.01 lb |
150 x 0.02lb |
250 x 0.05lb |
300 x 0.05lb |
600 x 0.1lb |
| 480 x 0.1 oz |
960 x 0.2 oz |
2400 x 0.5oz |
4000 x 1oz |
4800 x 1oz |
9600 x 2oz |
| 30 x 0.1 lb:oz |
60 x 0.2 lb:oz |
160 : 0.5 lb:oz |
250 : 1 lb:oz |
300 : 1 lb:oz |
600 : 2 lb:oz |
| 15 x 0.002 kg |
30 x 0.005 kg |
60 x 0.01 kg |
100 x 0.02 kg |
150 x 0.02 kg |
300 x 0.05 kg |
| 15000 x 2 g |
30000 x 5 g |
60000 x 10 g |
100000 x 20 g |
150000 x 20 g |
300000 x 50 g |
Maximum Displayed Resolution |
1:7500 |
1:60000 |
1:7500 |
1:5000 |
1:7500 |
1:6000 |
Platform Size |
12 X 14 X 3.54 in
30.5 X 35.5 X 9.5 cm |
16 X 20 X 4.14 in
40 X 50 X 10.5 cm |
17 X 22 X 4.14 in
42 X 55 X 10.5 cm |
Legal for Trade |
NTEP CC No. 08-039 for indicator- CC No. 99-203A3 for base
Measurement Canada ApprovalNo. AM-5687 for Indicator - No. AM-5675 for base
|
Capacity x Certified/Approved Readability |
30 x 0.01 lb |
60 x 0.02 lb |
150 x 0.05 lb |
250 x 0.1 lb |
300 x 0.1 lb |
600 x 0.2 lb |
| 15 x 0.005 kg |
30 x 0.01 kg |
60 x 0.02 kg |
100 x 0.05 kg |
150 x 0.05 kg |
300 x 0.1 kg |
Maximum Certified Resolution |
1:3000 |
1:3000 |
1:3000 |
1:3000 |
1:3000 |
1:3000 |
| Safe Overload Capacity |
150% of maximum capacity |
Shipping Dimensions
(L x W x H) |
19.3 x 16.1 x 17.3 in
490 x 410 x 440 mm |
29.1 x 27.2 x 9.1 in
740 x 690 x 230 mm |
29.5 x 30 x 9.1 in
750 x 710 x 230 mm |
| Net Weight |
23.6 lb / 10.7 kg |
46.3 lb / 21.0 kg |
58.2 lb / 26.4 kg |
| Shipping Weight |
35.9 lb / 12.7 kg |
53.6 lb / 24.3 kg |
64.8 lb / 29.4 kg |
| Indicator Model |
T51P |
| Construction |
ABS plastic indicator, stainless steel removable weighing platform, aluminum loadcell, painted steel mounting bracket and base construction |
| Weighing Units |
lb, oz, lb:oz, kg, g, custom unit |
| Modes |
Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold |
| Display |
1 in / 25mm high 6-digit, 7-segment bright white backlit LCD |
| Keyboard |
4-button membrane switch |
| Stabilization Time |
Within 2 seconds |
| Auto-zero Tracking |
Off, 0.5, 1 or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Calibration Span |
1 kg or 1lb to 100% of capacity / 3-point linearity (0 - 50% ? 100% fixed) |
| Power |
100-240 VAC / 50-60Hz internal universal power supply, 6 ?C? cell batteries (not supplied) with 80 hour life |
| Interface |
RS232 and external input |
| Operating Temperature Range |
14°F to 104°F / -10°C to 40°C |

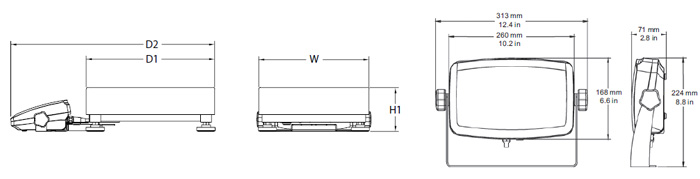

Dimensions
Model Number |
D51P15HR5 |
D51P30HR5 |
D51P60HR5 |
D51P60HL5 |
D51P100HL5 |
D51P150HX5 |
D51P300HX5 |
Scale Dimensions
(W x H1 x D1 x D2) |
12 x 3.7 x 14 x 22.8 in
305 x 95 x 355 x 580 mm |
15.7 x 4.1 x 19.7 x 28.5 in
400 x 105 x 500 x 725 mm |
16.5 x 4.9 x 21.7 x 30.5 in
420 x 125 x 550 x 775 mm
|
|
