Ohaus Defender 5000X Extreme Rectangular Scales
Ohaus Defender 5000X Extreme Rectangular Scales Scales

Specifications Chart

Smart Functionality, Durability, OHAUS Quality and Value

The OHAUS DefenderTM 5000 Series is a feature-rich line of bench scales, combining a stainless steel D51XW indicator with a rectangular, painted steel base and a painted steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 5000 offers a multifunctional indicator with multiple weighing units and software modes to meet the requirements of industrial and lab applications. With rugged steel construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 can meet the needs of demanding industrial operations

Standard Features Include:
  • All steel construction with stainless steel indicator and painted steel column and base
  • 5,000-7,500d default resolution
  • NTEP Certified / Measurement Canada Approved resolution up to 1:3,000
  • Quick display of results using large LCD with high-contrast white backlight
  • Temporary display of 10x readability in weighing mode with quick key press
  • Easy to operate with 4-key membrane keypad with raised tactile keys
  • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), metric tonnes and user-definable custom unit
  • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, and Display Hold.
  • Internal universal switching power supply with hardwired line cord ? optional NiMH internal rechargeable power pack available
  • Includes RS232 interface with GMP/GLP data output including date and time
  • Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS422/485


The Defender 5000 Offers Multiple Features and Easy Configuration:

    To meet different operational needs, the Defender 5000 includes a suite of configurable software
  • Counting mode for packaging and inventory control, enabling counting into a container or out of a container for bulk operations. Supports a maximum counting resolution to 1:300,000 (minimum APW equal to 0.1d), selectable autooptimization of average piece weight (APW). APW data can be displayed at any time using a quick key press
  • Percent Weighing mode for formulation and mixing applications, with display of reference weight with quick key press.
  • Dynamic/Animal Weighing with selectable weigh times from 0-60 seconds
  • Checkweighing function for packaging and weight checking, with display of results using LCD display and red/yellow/ green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range. Target weight values can be displayed at any time using a quick key press
  • Display Hold mode for weighing large packages holds last stable weight on display until cleared
  • The Defender 5000 weighs in one or more user-selectable units: kg, g, lb, oz, lb:oz (decimal), metric tonnes and user-definable custom unit
  • Supports GMP/GLP data output with date, time user ID, project ID and scale ID. The Defender 5000 features selectable print options for data and print format
  • To limit operator access to functions, the Defender 5000 offers both software lockouts for menu items as well as individual key functions

Ohaus Defender 5000X Extreme Rectangular Scales

Legal for Trade
NTEP & Measurement Canada

FREE UPS Ground Shipping
(within the 48 continental US States)

For a limited time only
Add to Cart to see Price

Model:

TAL Software (SW12W), Add $463.50
Second RS232 Interface Kit (80500733), Add $65.70
RS422/485 Interface Kit (80500731), Add $81.00
Rechargeable Battery Kit (80500729), Add $187.20
DC Relay Kit (80500727), Add $267.30
AC Relay Kit (80500720), Add $311.40
RS-232 Cable PC 9 Pin (80500525), Add $158.40
RS232 Cable, PC 25-pin (80500524), Add $169.20
Cable for 802521992 Thermal Printer (80252581), Add $169.20
Ohaus SF40A Portable Dot-Matrix Impact Printer, Add
Palm-Sized Thermal Printer (80251992), Add $663.30
Large Stainless Steel Scoop (80250954), Add $44.00
Stainless Steel Scoop (80250400), Add $45.00
Stainless Steel Column Mount Kit 26.75 in (80500726), Add $180.00
Stainless Steel Column Mount Kit 13.75 in (80500725), Add $153.00
Painted Steel Column Mount Kit 26.75 in (80500724), Add $79.20
Painted Steel Column Mount Kit 13.75 (80500723), Add $69.30

  • Optional NiMH Battery Allows for use in environments where an electrical outlet may not be readily available
  • 3-Color LED Checkweigh Indication with configurable beeper alert
  • Included Table/Wall Mount Bracket With large ergonomic adjustable knobs to maximize viewing angles
  • Hinged Front Cover Only four sealing screws secure the housing for ease of servicing,while still ensuring IP66 seal integrity
  • Universal Switching Power Supply Automatically adapts to different voltages and frequencies; plug anywhere, anytime
  • Durable Base Frame Construction Stainless steel pans and painted steel form-and-weld frames (R, L bases) provide maximum durability, rigidity and structural integrity. Load-unload cycle tested to ensure long-term performance
  • Fully Adjustable Feet Four rugged, adjustable feet help prevent slippage on wet or uneven surfaces
  • Painted Steel Columns Available in both short and tall lengths
  • Stay Connected Built in RS232 bi-directional interface and external input, optional RS485/422, optional second RS232 and optional AC or DC relay
  • One-Key, Multiple Mode Selection Counting, Dynamic Weighing, Display Hold, Percent Weighing and Checkweighing
  • High-Visibility LCD Display with bright white LED backlight and fast display stable weight within 2 seconds
  • Stainless Steel 304 NEMA 4X/IP66 Enclosure Indoor/outdoor protection against falling dirt, rain, sleet, snow, windblown dust, splashing and corrosion
  • Internal Slot for Capacity Label Protects label from the effects of moisture and external environments

Features

T51XW: Stainless steel water resistant NEMA 4X / IP66 housing, integral faceplate supports for easy servicing, backlit LCD weight display, checkweighing indication (green, yellow, red), membrane keypad with raised tactile keys, built-in bi-directional RS232 with manual/continuous/interval printing, external tare input, hardware configuration lockout switch, internal switching power supply with hardwired cord.

Other Features

Zero point calibration, calibration test, span or linear calibration, selectable auto-zero tracking range, selectable stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data after power-off, Geo gravity adjustment, selectable key beep, key function lock, menu lock, selectable power-on and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, over- and underweight, overload and underload conditions. Configuration menus for PRINT1, PRINT2, COM1, COM2, and I/O.

Compliance

  • Legal for Trade NTEP (CC No. 08-039 for indicator; 99-203A3 for bases); Measurement Canada (Approval No. AM-5687 for indicator; AM-5675 for bases)
  • Safety and EMC: cULus 2005/95/EC low voltage directive: EN60950-1:2001, FCC Part 15 Class A 2004/108/EC EMC directive: EN61326-1:1997; +A1:1998; +A2:2001; + A3>2003
  • Other: Compliant to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE)
  • Quality Ohaus quality management system registered to ISO 9001:2008

Extreme Rectangular Scales

Model Number

D51XW15HR1 D51XW30HR1 D51XW60HR1 D51XW60HL2 D51XW100HL2 D51XW150HX2 D51XW300HX2
D51XW15HR1 D51XW30HR1 D51XW60HR1 B0015DD3B4 D51XW100HL2 D51XW150HX2 D51XW300HX2

Price

$1,181.48
buy now
$1,181.48
buy now
$1,497.60
buy now
$1,675.20
buy now
$1,321.34
buy now
$1,447.22
buy now
$1,573.76
buy now

Capacity x Readability

30 x 0.005 lb 60 x 0.01 lb 150 x 0.02 lb 250 x 0.05 lb 300 x 0.05 lb 600 x 0.1 lb
480 x 0.1 oz 960 x 0.2 oz 2400 x 0.5 oz 4000 x 1 oz 4800 x 1 oz 9600 x 2 oz
30 x 0.1 lb:oz 60 lb x 0.2 lb:oz 1160 x 0.5 lb:oz 250 x 1 lb:oz 300 x 1 lb:oz 600 x 2 lb:oz
15 x 0.002 kg 30 x 0.005 kg 60 x 0.01 kg 100 x 0.02 kg 150 x 0.02 kg 300 x 0.05 kg
15000 x 2 g 30000 x 5 g 60000 x 10 g 100000 x 20 g 150000 x 20 g 300000 x 50 g

Maximum Displayed Resolution

1:7500 1:6000 1:7500 1:5000 1:7500 1:6000
Platform Size 12 x 14 x 3.54 in
30.5 x 35.5 x 9.5 cm
116 X 20 X 4.14 in
40 X 50 X 10.5 cm
17 X 22 X 4.14 in
42 X 55 X 10.5 cm
Legal for Trade NTEP (CC No. 08-039 for indicator; 99-203A3 for bases)
Measurement Canada (Approval No. AM-5687 for Indicator; AM-5675 for bases)

Capacity x Readability

30 x 0.01 lb 60 x 0.02 lb 150 x 0.05 lb 250 x 0.1 lb 300 x 0.1 lb 600 x 0.2 lb
15 x 0.005 kg 30 x 0.01 kg 60 x 0.02 kg 100 x 0.05 kg 150 x 0.05 kg 300 x 0.1 kg
Maximum Certified Resolution 1:3000 1:3000 1:3000 1:3000 1:2500 1:3000 1:3000
Column 13.8 in / 350 mm painted steel 26.8 in / 680 mm painted steel
Safe Overload Capacity 150% of maximum capacity

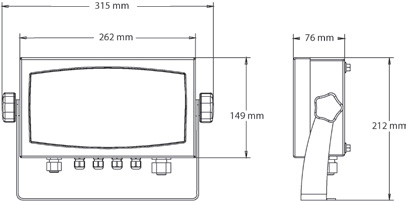

Indicator Model T51XW
Construction Stainless steel indicator, removable weighing platform, painted steel column and base construction, aluminum loadcell
Protection NEMA 4X/IP66 for indicator, IP67 for loadcell
Weighing Units lb, oz, lb:oz, kg, g, metric tonnes, custom unit
Modes Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold
Display 1 in / 25 mm high 6-digit, 7-segment bright white backlit LCD
Keyboard 4-button membrane switch
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3 d
Zeroing Range 2% or 100% of capacity
Calibration Span 1 kg or 1lb to 100% of capacity / 3-point linearity (0 - 50% ? 100% fixed)
Power 100-240 VAC / 50-60Hz internal universal power supply, 6 ?C? cell batteries (not supplied) with 80 hour life
Interface RS232 and external input
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Shipping Dimensions
(L x W x H)
19.3 x 16.1 x 17.3 in
490 x 410 x 440 mm
29.1 x 27.2 x 9.1 in
740 x 690 x 230 mm
29.5 x 30 x 9.1 in
750 x 710 x 230 mm
Net Weight 25.3 lb / 11.5 kg 49.1 lb / 22.3 kg 61.1 lb / 27.7 kg
Shipping Weight 30.2 lb / 13.7 kg 56.4 lb / 25.6 kg 67.7 lb / 30.7 kg

Model Number

D51XW15HR1 D51XW30HR1 D51XW60HR1 B0015DD3B4 D51XW100HL2 D51XW150HX2 D51XW300HX2

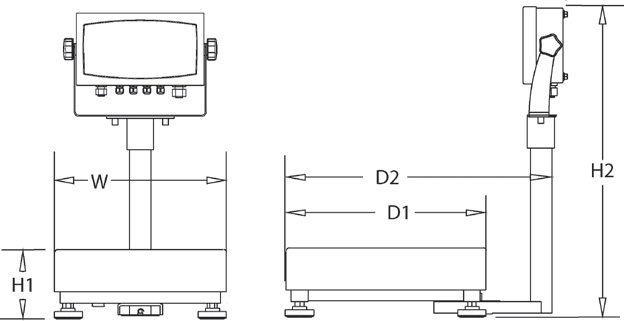

Scale Dimensions
(W x H1 x H2 x D1 x D2)

12 x 3.7 x 23.6 x 14 x 18.7 in
305 x 95 x 600 x 355 x 475 mm
15.7 x 4.1 x 37 x 19.7 x 24.4 in
400 x 105 x 940 x 500 x 620 mm
16.5 x 4.9 x 37 x 21.7 x 26.4 in
420 x 125 x 940 x 550 x 670 mm
