| The LP7620 heavy capacity floor scales are specifically designed for weighing large loads in nearly any environment. With a capacity of 1000lb, 2500lb,5000lb,10000lb,20000lb., these tough floor scales can handle big jobs with ease. This type floor scale also offers the enhanced resolution and diagnostic capability more ... |
| Industrial Scales > Floor Scales > 0 lb to 5000 lb | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
OverviewThe LP7620 heavy capacity floor scales are specifically designed for weighing large loads in nearly any environment. With a capacity of 1000lb, 2500lb,5000lb,10000lb,20000lb., these tough floor scales can handle big jobs with ease. This type floor scale also offers the enhanced resolution and diagnostic capability
Capacity x Readability
Manufature:
LP ScalesNon Legal Mode:1000 lb x 0.2 lb Legal For Trade: 1000 lb x 0.2 lb Pan Size 2 x 2 ft SKU: LP7620-2424-1000 Quick Facts
|
||||||||||||||||||||||||||||
The LP7620 heavy capacity floor scales are specifically designed for weighing large loads in nearly any environment. With a capacity of 1000lb, 2500lb,5000lb,10000lb,20000lb., these tough floor scales can handle big jobs with ease. This type floor scale also offers the enhanced resolution and diagnostic capability.

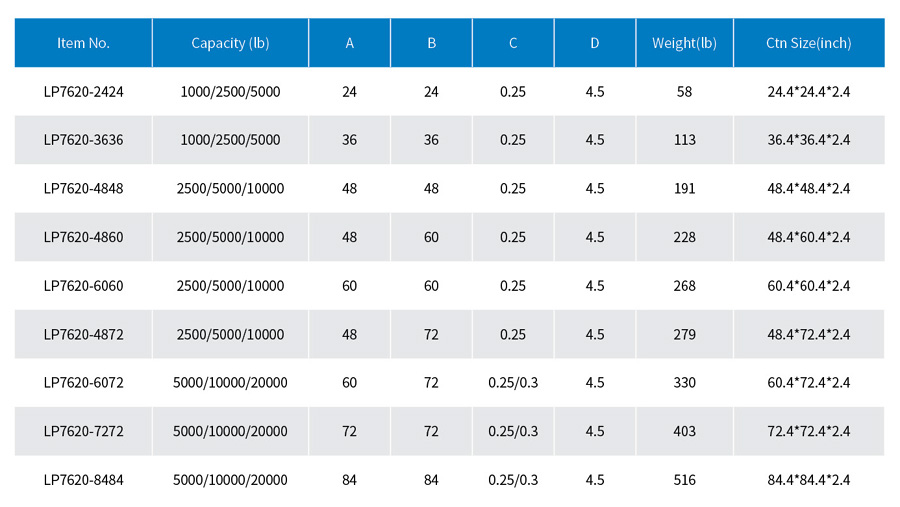

Floor scales, platform scales suitable for all kinds weighing , Size: 24.4*24.4*2.4inch, 36.4*36.4*2.4inch, 48.4*48.4*2.4inch or any custom size. Capacity from 1000lb, 2500lb,5000lb,10000lb,20000lb.
| Mild Steel Model | LP7620-2424-1000 | LP7620-2424-2500 | LP7620-2424-5000 | LP7620-3636-1000 | LP7620-3636-2500 | LP7620-3636-5000 | |
|---|---|---|---|---|---|---|---|
| Mild Frame Material | Mild Steel | ||||||
| Mild Pan Material | Mild Steel shot blasting epoxy powder coating or galvanizing | ||||||
| Mild Display | 0.8" LED Display with backlight | ||||||
| SS Stainless Steel Model | LP7620SS-2424-1000 | LP7620SS-2424-2500 | LP7620SS-2424-5000 | LP7620SS-3636-1000 | LP7620SS-3636-2500 | LP7620SS-3636-5000 | |
| SS Frame Material | Stainless Steel | ||||||
| SS Pan Material | 3040SS Stainless Steel | ||||||
| SS Display | 0.8" LED Display | ||||||
| Capacity x Redability | 1000 x 0.2 lb | 2500 x 0.5 lb | 5000 x 1 lb | 1000 x 0.2 lb | 2500 x 0.5 lb | 5000 x 1 lb | |

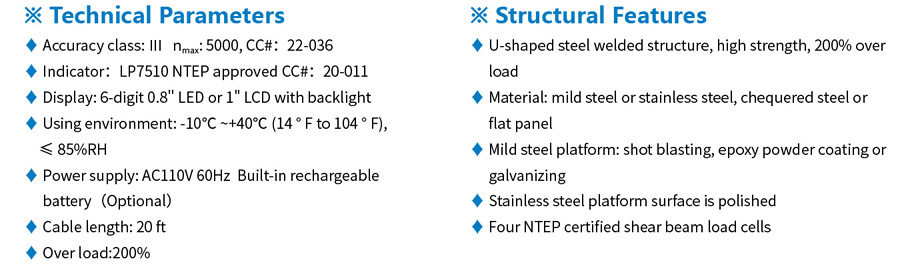

| Legal For Trade | Accuracy class: III nmax: 5,000 divisions CC# 22-036 Base Indicator: #20-011 | ||||||

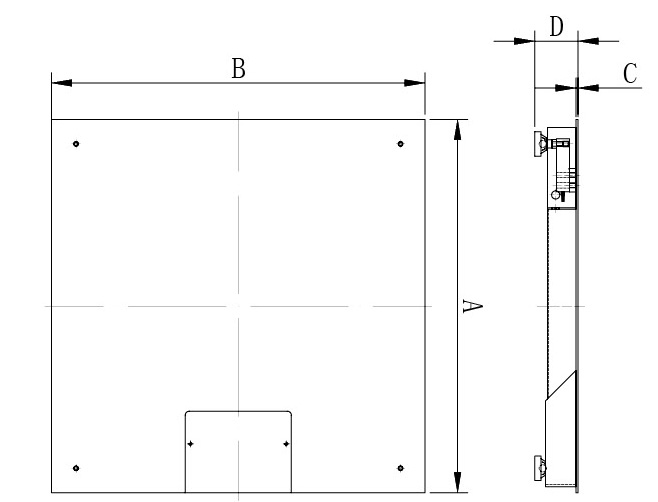

| Top Plate Size | 24 x 24 in(2 x 2 ft) |
36 x 36 in(3 x 3 ft) |
|||||
| Column Height | 0 in | 0 in | |||||

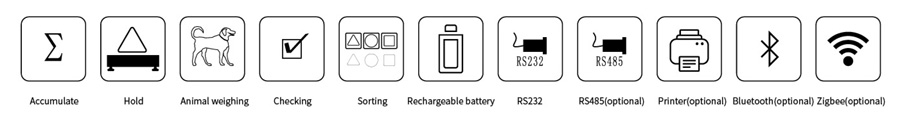

| Weighing function | Zero, tare, G.W, N.W, accumulation. printing, animal -weighing. | ||||||
| Units | kg/lb switchable | ||||||
| Mounting bracket | Mounting bracket and Hardware | ||||||
| Power | AC110V 60Hz | ||||||
| Interface | Full Duplex RS-232 Serial Port | ||||||
| limit alarm | Upper/lower | ||||||
| power save | Automatic power off and power save | ||||||
| warning alarm | Automatic error warning alarm | ||||||
|
||||||||||||||||
