| ±0.3% accuracy. Dual setpoints with outputs, programmable analog and digital filters. Reversible aluminum housing for hand held use or stand mounting. Optional RS-232, Mitutoyo and analog outputs with automatic timed output on RS-232. more ... |
Features

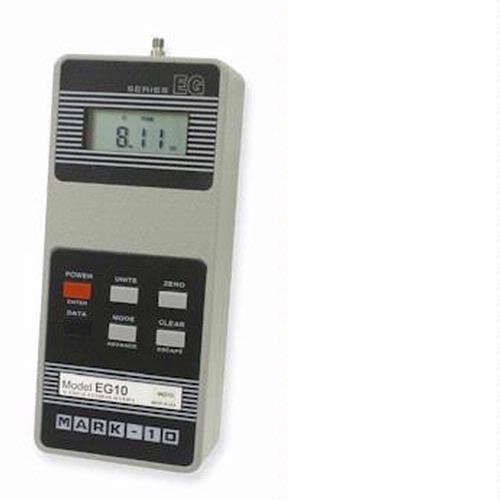

The Mark-10 EG force gauge is an ideal solution for compression and tension applications requiring accuracy and flexibility in the entire 0.12 lb to 500 lb range. Features include selectable units of measurement, automatic peak memory, simple pushbutton calibration, programmable automatic shutoff, initial status of units and mode of operation, permanent configuration memory, and optional outputs (RS-232, Mitutoyo, and analog). Reversible aluminum housing allows for hand-held use or test stand mounting.
Features:
- Compatible with all Mark 10 test stands and grips
- Selectable units of measurement
- Programmable default configuration
- Peak memory for tensile and compressive forces
- Push-button calibration
- Battery or AC operation
- Programmable automatic shutoff
- Permanent configuration memory
- Optional RS-232, Mitutoyo and analog outputs
- Reversible aluminum housing for handheld use or test stand mounting (see below)
- Same housing size for all capacities
Specifications:
- Accuracy: ± 0.3% of full scale ±1 digit
- Sampling rate: 30 readings/sec
- Safe overload: 150% of capacity
- Battery life: 8-10 hours per charge
- Weight: 0.9 lbs (0.4 kg)
- Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
- Warranty: 3 years
Mark-10 EG force gauges are supplied in a cushioned carrying case with AC adapter, rechargeable battery, hook, flat, users manual, and NIST-traceable certificate of calibration.
The Mark 10 EG force gauge is compatible with all Mark-10 force measurement test stands. It is shown here in a compression testing application, mounted to an ES30 test stand with optional items: digital travel display and extension rod.
Reversible Housing - A Mark-10 Exclusive
All Mark-10 force gauges have reversible housings that allow the user to use the gauge with the load cell shaft pointing up or down, without the inconvenience of upside-down buttons and display. The housing for Mark-10 BG and Series EG gauges is reversible by separating the two halves and reassembling them with just one connector - an extra bit of engineering that will make your testing setups quicker and more efficient.
Optional Equipment:
- A wide range of test stands and gripping fixtures
- Outputs package - RS-232, Mitutoyo, and analog outputs. Available at time of purchase or as an upgrade.
- Overload protection module - Protects the force gauge against overloads during motorized tests, adjustable from 20 - 110% of gauges full capacity. For use with Mark-10 motorized test stands.
- Output cable - Send test data to a PC, statistical printer, or other data collector for further analysis.
| Model |
Capacity x resolution |
Price |
| EG012 |
0.12 x 0.0001 lb, 50 x 0.05 gF, 0.5 x 0.0005 N, 110V |
$755 |
| EG025 |
0.25 x 0.0002 lb, 100 x 0.1 gF, 1 x 0.001 N, 110V |
$755 |
| EG05 |
0.5 x 0.0005 lb, 250 x 0.2 gF, 2.5 x 0.002 N, 110V |
$755 |
| EG2 |
2 x 0.002 lb, 1 x 0.001 kgF, 10 x 0.01 N, 110V |
$660 |
| EG5 |
5 x 0.005 lb, 2.5 x 0.002 kgF, 25 x 0.02 N, 110V |
$660 |
| EG10 |
10 x 0.01 lb, 5 x 0.005 kgF, 50 x 0.05 N, 110V |
$660 |
| EG20 |
20 x 0.02 lb, 10 x 0.01 kgF, 100 x 0.1 N, 110V |
$660 |
| EG50 |
50 x 0.05 lb, 25 x 0.02 kgF, 250 x 0.2 N, 110V |
$660 |
| EG100 |
100 x 0.1 lb, 50 x 0.05 kgF, 500 x 0.5 N, 110V |
$660 |
| EG200 |
200 x 0.2 lb, 100 x 0.1 kgF, 1000 x 1 N, 110V |
$755 |
| EG500 |
500 x 0.5 lb, 250 x 0.2 kgF, 2500 x 2 N, 110V |
$755 |
| Optional Equipment |
| EGRS |
Output option for EG (RS232, Mitutoyo, Analog) |
142 |
| 09-1047 |
Cable, EG/EG/EG/EGI to Mitutoyo SPC (requires EGRS) |
$71 |
| 09-1048 |
Cable, EG/EG/EG/EGI to RS-232, 25-pin (requires EGRS) |
$71 |
| 09-1048A |
Cable, EG/EG/EG/EGI to RS-232, 9-pin (requires EGRS) |
$71 |
| 09-1090 |
Cable, set point, EG/EGI/EG to test stand |
$137 |
| 11-1042 |
Overload protection module, EG/EG/EG/EGI to test stand |
$185 |
