Mark-10 BG50 Force Gauge, 50 x 0.02 lb - Free Shipping - Coupons and Discounts May be Available

Features

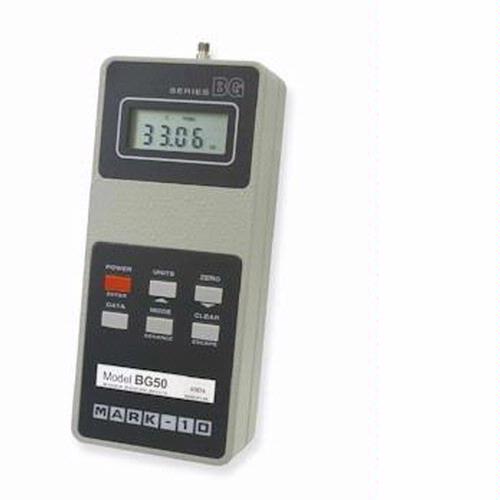

The Mark 10 BG Digital Force Gauge is an advanced force measurement solution with sophisticated measurement capabilities, data outputs, computer control capabilities, and a long list of features and configurable settings. The BG can stop motorized test stand travel at user-selectable set points, and can also prevent force overload (when used with the ESM motorized test stand). Go / no go testing can also be accomplished with an optional plug-in hi / lo limits indicator.

Features:

Compatible with all Mark 10 test stands and grips
RS-232, Mitutoyo and analog outputs
GCL-Gauge Control Language for full computer control
Automatic timed output on RS-232
Dual set points with outputs
Averaging mode for average readings over time
External trigger for contact or switch testing and data capture
General purpose I/O for external device control
Programmable analog and digital filters
Selectable units of measurement
Programmable default configuration
Peak memory for tensile and compressive forces
Push-button calibration
Battery or AC operation
Programmable automatic shutoff
Reversible aluminum housing for handheld use or test stand mounting (see below)
Same housing size for all capacities

Specifications

Accuracy: ± 0.2% of full scale ±1 digit
Sampling rate: 65 readings/sec
Display rate: 25-10/sec, 65/sec in peak mode
Display: 4-1/2 digit, 0.3 inch (7.6 mm) high LCD
Indicators for low battery , units and mode of operation
Power: AC or rechargeable battery with IPM, a 3-step Intelligent Power Management system that warns the user via LO BAT indicator and then will shut off the gauge
RS-232 - Fully configurable up to 9600 baud. Includes GCL (Gauge Control Language)
Mitutoyo output - Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog output - +/-VDC +/-0.25% of full scale at capacity. Positive for compression, negative for tension
Set point outuputs: 3 open collector lines (utilizing Mitutoyo lines)
General purpose I/O: 3 open collector outputs and one input (utilizing Mitutoyo lines)
Sensor detection: 0.010 (0.25 mm) maximum deflection at full load
Safe overload: 150% of capacity - display shows == at 110% and above
Battery life: 8-10 hours per charge
Weight - Gauge only: 0.9 lbs (0.4 kg)
Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty: 3 years

The Mark 10 BG digital force gauge is compatible with all Mark-10 force measurement test stands. It is shown here in a tensile testing application, mounted to an ESM motorized test stand with optional items: digital travel display, limit switches, and wedge grips.

Mark-10 BG force gauges are supplied in a cushioned carrying case with AC adapter, rechargeable battery, chisel, cone, v-groove, hook, flat, extension rod, users manual, and NIST-traceable certificate of calibration

Reversible Housing - A Mark-10 Exclusive

All Mark-10 force gauges have reversible housings that allow the user to use the gauge with the load cell shaft pointing up or down, without the inconvenience of upside-down buttons and display. The housing for Mark-10 BG and Series EG gauges is reversible by separating the two halves and reassembling them with just one connector - an extra bit of engineering that will make your testing setups quicker and more efficient.

Model	Capacity x resolution	Price
BG012	0.12 x 0.00005 lb, 50 x 0.02 gF, 0.5 x 0.0002 N, 110V	$1087
BG025	0.25 x 0.0001 lb, 100 x 0.05 gF, 1 x 0.0005 N, 110V	$1087
BG05	0.5 x 0.0002 lb, 250 x 0.1 gF, 2.5 x 0.001 N, 110V	$1087
BG2	2 x 0.001 lb, 1 x 0.0005 kgF, 10 x 0.005 N, 110V	$945
BG5	5 x 0.002 lb, 2.5 x 0.001 kgF, 25 x 0.01 N, 110V	$945
BG10	10 x 0.005 lb, 5 x 0.002 kgF, 50 x 0.02 N, 110V	$945
BG20	20 x 0.01 lb, 10 x 0.005 kgF, 100 x 0.05 N, 110V	$945
BG50	50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N, 110V	$945
BG100	100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N, 110V	$945
BG200	200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N, 110V	$1087
BG500	500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N, 110V	$1087
Optional Equipment
09-1047	Cable, BG/CG/EG/BGI to Mitutoyo SPC	$71
09-1048	Cable, BG/CG/EG/BGI to RS-232, 25-pin	$71
09-1048A	Cable, BG/CG/EG/BGI to RS-232, 9-pin	$71
09-1090	Cable, set point, BG/BGI/CG to test stand	$137
11-1022	Hi / Lo limits indicator for BG/BGI/CG	$85
11-1042	Overload protection module, BG/CG/EG/BGI to test stand	$185

Optional Accessories

more info

Inscale 46-5-S Stainless Steel Floor Scale, 4 x 6, 5000 x 1 lb
more info
Price: $5,100.00
In Stock

This heavy duty type 304 Inscale Stainless Steel Floor Scale withstands the widest variety of hostile chemical and washdown environments. Stainless steel hardware and a stainless steel junction box are standard. NTEP approved Legal for Trade

Comes with a NEMA 4X stainless steel indicator
15 foot cable included
Factory pre-calibrated
Installs in 15 minutes or less - simply plug in and weigh!
3 year warranty

Included Inscale TI-600 indicator:

NEMA 4x stainless steel enclosure.
NTEP approved for 5000 divisions.
Keyboard tare entry.
Full duplex RS-232 serial port.
Gross, net, tare, print, ticket mode.
Full font panel configuration.
Stainless steel swivel stand

Model Number	Capacity x Graduation (lbs)	Platform Size (ft)	Shipping Weight (lbs)	Ramp Model Number
22-5-S	5000 x 1	2 x 2	80	22-10R-S
22-10-S	10000 x 2	2 x 2	80	22-10R-S
33-5-S	5000 x 1	3 x 3	200	33-10R-S
33-10-S	10000 x 2	3 x 3	200	33-10R-S
44-5-S	5000 x 1	4 x 4	295	43-10R-S
44-10-S	10000 x 2	4 x 4	295	43-10R-S
45-5-S	5000 x 1	4 x 5	380	44-10R-S
45-10-S	10000 x 2	4 x 5	380	44-10R-S
46-5-S	5000 x 1	4 x 6	430	44-10R-S
46-10-S	10000 x 2	4 x 6	430	44-10R-S
55-5-S	5000 x 1	5 x 5	455	53-10R-S
55-10-S	10000 x 2	5 x 5	455	53-10R-S
57-5-S	5000 x 1	5 x 7	690	54-10R-S
57-10-S	10000 x 2	5 x 7	690	54-10R-S

more info

Mark-10 15-1004 MESURGauge Data Collection Software
more info
Price: $505.40
In Stock

We are pleased to introduce Mark-10 MESURgauge software, a measuring and analysis program designed to expand the functionality of Mark-10 force and torque measuring instruments.

Ability to display both load and travel data
The ability of MESURgauge to display load and travel data sets it apart from other basic force measurement programs. If the customer wishes to plot a graph of load vs. travel, common for such applications as tensile testing and spring testing, MESURgauge is a compelling alternative to more expensive and complex material testing programs.
Compatibility with competitors gauges
Any force or torque gauge with RS-232 data output is compatible with Mark-10 MESURgauge software. Simply enter in the appropriate communication protocols of the gauge into the program.
Simulated data makes evaluation a breeze
Built-in simulated data allows the customer to evaluate the program with data which can be graphed, analyzed, and manipulated just like real test data. A gauge and cable are not necessary.

Mark-10 MESURgauge is a measuring and analysis program designed to expand the functionality of force and torque measuring instruments. Mark-10 MESURgauge Software captures readings from any force or torque gauge with RS-232 output and displays data in tabular and graphical formats. Load data can be graphed versus time or distance, particularly useful for such applications as spring testing and tensile testing.

Mark-10 MESURgauge Software includes a set of tools to analyze test results, including statistical calculations, quick data export to Microsoft Excel, customizable reports, pass/fail indicators, and many others. Test setups and sequences are customizable and can be saved and recalled. The user can program test start and stop conditions, including load, time, distance, and sample break.

Additional features in Mark-10 MESURgauge Software include a large display screen for real time load and travel data and a utility to configure Mark-10 gauges from a PC. Built-in simulated data generation allows Mark-10 MESURgauge Software to be evaluated without a gauge.

Additional Features:

Inputs data from a force or torque gauge and travel display to a PC for further analysis
Real time tabular and graphical data displaying load vs. time or load vs. distance
Configurable start and stop test triggers (time, load, number of samples, or distance)
Statistical calculations (minimum, maximum, average, area under curve)
Graph manipulation tools, including zooming, scaling, panning, titles, and more
One-button export to Excel
Create customizable reports and report templates
Compatible with all Mark-10 and other force and torque measuring instruments
Save and recall test setups and test data
Configure Mark-10 instruments easily through a simple interface
View real time data on a large simulated instrument display

Computer Requirements

Windows 2000 or later operating system
At least 150 MB of free hard disk space
Minimum display resolution of 1024 x 768

more info

Mark-10 G1027 V-Groove, 200 lb
more info
Price: $20.00
In Stock

For compression testing of round or odd shaped samples. Use them with a force gauge and a test stand to create a complete testing system.

Model	Capacity (lb / N)	Weight (lb / kg)	A	ØB	C	D
G1027	200 / 1000	0.004 / 0.001	0.5 / 12.7	0.25 / 6.4	#10-32F	0.08 / 2.0
G1034	500 / 2500	0.04 / 0.018	1.0 / 25.4	0.5 / 12.7	5/16-18F	0.25 / 6.4

more info

Mark-10 G1026 Cone Point, 200 lb
more info
Price: $20.00
In Stock

For puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.

Model	Capacity (lb / N)	Weight (lb / kg)	A	ØB	C
G1026	200 / 1000	0.003 / 0.001	0.5 / 12.7	0.5 / 12.7	#10-32F
G1033	500 / 2500	0.03 / 0.014	1.0 / 25.4	0.5 / 12.7	5/16-18F

more info

Mark-10 G1025 Chisel Point, 200 lb
more info
Price: $20.00
In Stock

For compressing or puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.

Model	Capacity (lb / N)	Weight (lb / kg)	A	ØB	C
G1025	200 / 1000	0.003 / 0.001	0.5 / 12.7	0.5 / 12.7	#10-32F
G1032	500 / 2500	0.04 / 0.018	1.0 / 25.4	0.5 / 12.7	5/16-18F

more info

Mark-10 G1024-2 Extension Rod, 200 lb, 1 in
more info
Price: $20.00
In Stock

For use between a force gauge and another attachment or grip. Use them with a Mark-10 force gauge and test stand to create a complete compression testing system.

Model	Capacity (lb / N)	Weight (lb / kg)	A	ØB	C	D
G1024	200 / 1000	0.01 / 0.005	5.0 / 127.0	0.25 / 6.4	#10-32F	#10-32G
G1024-1		0.02 / 0.009	2.0 / 50.8
G1024-2		0.05 / 0.023	1.0 / 25.4
G1031	500 / 2500	0.05 / 0.023	5.0 / 127.0	0.5 / 12.7	5/16-18F	5/16-18F
G1031-1		0.1 / 0.045	2.0 / 50.8
G1031-2		0.25 / 0.113	1.0 / 25.4

more info

Mark-10 G1024-1 Extension Rod, 200 lb, 2 in
more info
Price: $20.00
In Stock

For use between a force gauge and another attachment or grip. Use them with a Mark-10 force gauge and test stand to create a complete compression testing system.

Model	Capacity (lb / N)	Weight (lb / kg)	A	ØB	C	D
G1024	200 / 1000	0.01 / 0.005	5.0 / 127.0	0.25 / 6.4	#10-32F	#10-32G
G1024-1		0.02 / 0.009	2.0 / 50.8
G1024-2		0.05 / 0.023	1.0 / 25.4
G1031	500 / 2500	0.05 / 0.023	5.0 / 127.0	0.5 / 12.7	5/16-18F	5/16-18F
G1031-1		0.1 / 0.045	2.0 / 50.8
G1031-2		0.25 / 0.113	1.0 / 25.4

more info

Mark-10 G1024 Extension Rod, 200 lb, 5 in
more info
Price: $20.00
In Stock

For use between a force gauge and another attachment or grip. Use them with a Mark-10 force gauge and test stand to create a complete compression testing system.

Model	Capacity (lb / N)	Weight (lb / kg)	A	ØB	C	D
G1024	200 / 1000	0.01 / 0.005	5.0 / 127.0	0.25 / 6.4	#10-32F	#10-32G
G1024-1		0.02 / 0.009	2.0 / 50.8
G1024-2		0.05 / 0.023	1.0 / 25.4
G1031	500 / 2500	0.05 / 0.023	5.0 / 127.0	0.5 / 12.7	5/16-18F	5/16-18F
G1031-1		0.1 / 0.045	2.0 / 50.8
G1031-2		0.25 / 0.113	1.0 / 25.4

more info

Mark-10 G1029 Flat Head, 200 lb
more info
Price: $20.00
In Stock

These attachments are ideal for compression testing of buttons, membrane switches, etc. Use them with a force gauge and a test stand to create a complete testing system.

Model	Capacity (lb / N)	Weight (lb / kg)	ØA	B	C
G1029	200 / 1000	0.01 / 0.005	0.5 / 12.7	0.5 / 12.7	#10-32F
G1036	500 / 2500N	0.06 / 0.027	0.75 / 19.1	0.87 / 22.1	5/16-18F

more info

Mark-10 G1038 Hook, 200 lb
more info
Price: $15.00
In Stock

These hooks are ideal for a variety of tensile tests. Use them with a force gauge and a test stand to create a complete testing system.

Model	Capacity (lb / N)	Weight (lb / kg)	RA	B	ØC	D
G1028	20 / 100	0.01 / 0.005	0.05 / 1.3	1.0 / 25.4	0.1 / 2.5	#10-32F
G1038	200 / 1000	0.02 / 0.009	0.2 / 5.1	1.5 / 38.1	0.19 / 4.8	#10-32M
G1035	500 / 2500	0.5 / 0.023	0.3 / 7.6	1.9 / 48.3	0.28 / 7.1	5/16-18M
G1042	1000 / 4500	0.32 / 0.145	0.5 / 12.7	4.1 / 104.1	0.45 / 11.4	1/2-20M

more info

Mark-10 09-1048A RS-232, 9-pin Cable
more info
Price: $76.00
In Stock

Cable, BG/CG/EG/BGI to RS-232, 9-pin

more info

Mark-10 09-1047 Mitutoyo Cable
more info
Price: $76.00
In Stock

Cable, BG/CG/EG/BGI to Mitutoyo SPC

more info

Mark 10 RSU100 Communication adapter, RS-232 to USB
more info
Price: $128.25
In Stock

The RSU100 is a communication adapter used to convert RS-232 data from a Mark-10 device to USB format for PC use.:
:
:
INCLUDED ITEMS:
1 RSU100 Communication Adapter:
1 USB cable, 6’:
1 Installation CD:
1 User’s guide :
:
:
User’s guide :
:


±0.2% accuracy. RS-232, Mitutoyo and analog outputs with automatic timed output on RS-232. Dual setpoints with outputs, programmable analog and digital filters. Reversible aluminum housing for hand held use or stand mounting. Full computer control more ...
