Industrial Scales > Counting Scales > Dedicated Counting Scales | |||||||||||||||||||||
|
|||||||||||||||||||||
OverviewFive digital counting scales to choose from in capacities from 3 to 60 kilograms with maximum 0.0002 precision. Heavy duty cast aluminum construction. RS-232 standard
Capacity x Readability
Manufature:
OhausNon Legal Mode:6000 g x 0.2 g Legal For Trade: 6000 g x 1 g Pan Size 9.5 x 8 in SKU: RC6RS/3 Weight: 15.00 lb
|

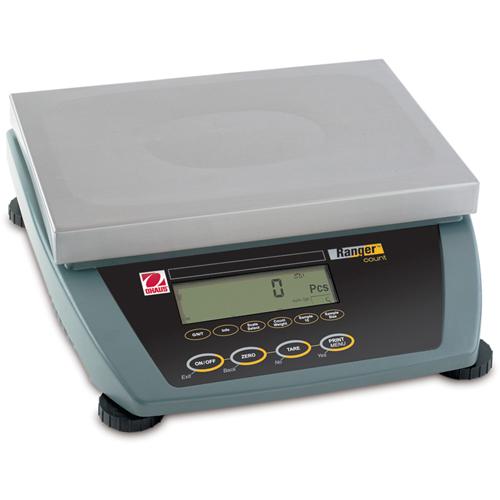

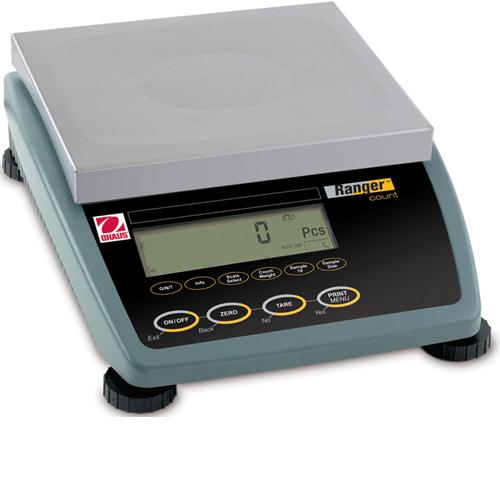

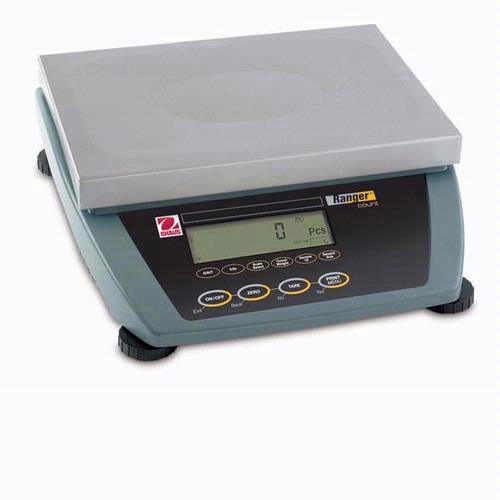

Ohaus RC6RS counting scales feature RS-232 interface, backlit display, gross and tare functions and more. Logical menu-based controls and a large backlit LCD display ensure comfortable operation. 6000 x 0.5 g capacity x readability. Designed for easy counting, the Ohaus Ranger Count digital counting scales have a high-resolution measuring cell that produces counting results that are fast, stable and precise. Automatic reference optimization insures accurate counting each and every time. Logical menu-based controls and a large backlit LCD display ensure comfortable operation. Two Rangers can be linked together for fast, accurate dedicated parts counting and inventorying. The cast aluminum housing is well suited for industrial or production environments. Choose from five capacities in two platform sizes. For efficiency, speed and durability, the choice is Ranger Count digital counting scales. Ranger Digital Counting Scales - Standard Features: RS232 bi-directional interface, backlit display, Gross / Tare / Net function, auto off timer, internal AC power supply, leveling feet, leveling bubble, 10-button membrane keypad, rugged construction, auto zero tracking, retain zero data during power off, user selectable gradation, fill application option, automatic reference optimization to ensure accuracy of sample for parts counting, add mode to establish sufficient sample weight, user selectable averageing level sensitivity, primary and secondary display units user selectable, automatic taring, front-panel counting/weighing switch, bar graph displaying percentage of total capacity, variable sample size user selectable, primary and secondary configurable RS232 port settings with programmable output header, software LFT lockout switch. Note: NTEP for weighing only Capacity x Readability Default Capacity x Readability NTEP Certified
(NTEP Certification not for Counting Function)
Model Number
RC3RS
RC6RS
RC12LS
RC30LS
RC60LS
6.6138 x 0.0002 lb
13.2275 x 0.0005 lb
26.456 x 0.001 lb
66.138 x 0.002 lb
132.275 x 0.005 lb
105.822 x 0.002 oz
211.640 x 0.005 oz
423.30 x 0.02 oz
1,058.20 x 0.02 oz
2116.50 x 0.05 oz
3 x 0.0001 kg
6 x 0.0002 kg
12 x 0.0005 kg
30 x 0.001 kg
60 x 0.002 kg
3000.0 x 0.1 g
6,000.0 x 0.2 g
12,000.0 x 0.5 g
30,000 x 1 g
60,000 x 2 g
0.003 x 0.000001 t
0.006 x 0.000001 t
0.012 x 0.000001 t
0.03 x 0.000001 t
0.06 x 0.000002 t
Minimum APW
0.00002 lb
0.00005 lb
0.0001 lb
0.0002 lb
0.0005 lb
0.0005 oz
0.001 oz
0.002 oz
0.005 oz
0.01 oz
0.01 g
0.02 g
0.05 g
0.1 g
0.2 g
6 x 0.001 lb
12 x 0.002 lb
24 x 0.005 lb
60 x 0.01 lb
120 x 0.02 lb
3 x 0.0005 kg
6 x 0.001 kg
12 x 0.002 kg
30 x 0.005 kg
60 x 0.01 kg
3,000 x 0.5 g
6,000 x 1 g
12,000 x 2 g
30,000 x 5 g
60,000 x 10 g
Platform Size (W x D)
9.5 x 8 in / 24 x 20 cm
14 x 9.5 in / 35 x 24 cm
Scale Dimensions (W x D x H)
10.5 x 13.2 x 4 in / 26.5 x 33.5 x 10 cm
14.2 x 14.6 x 4.5 in / 36 x 37 x 11.5 cm
Net Weight
12 lb / 5.1 kg
20 lb / 8.9 kg
Shipping Weight
15 lb / 6.6 kg
25 lb / 11.1 kg
Shipping Dimensions (W x D x H)
16.5 x 19 x 10 in / 42 x 48x x 25 cm
20 x 20.5 x 10.5 in / 52 x 53 x 27 cm
Maximum Internal Counting Resolution
1:600,000
Maximum Displayed Counting Resolution
1:300,000
Weighing Units
lb, oz, kg, g, t
Application Modes
Weigh, Count, Fill/Dose, Dynamic Weigh,
Gross/Net/Tare
Display
Backlit LCD with 7 digits 0.63"/16mm high and capacity guide
Memories
N/A
Keyboard
10 keys
Interface
RS232
Tare Range
To full scale capacity
Stabilization Time
~ 1 second
Auto-Zero Tracking
0.5, 1, 2, 5, 10d or Off
Safe Overload Capacity
150% of capacity
Power
Internal, hardwired AC included
Calibration
Span Calibration: 0%, 20% to 100% of capacity
Operating Temperature
14° to 104°F / -10° to 40°C
Image | Name | Price | ||
---|---|---|---|---|
Ohaus RC3RS/3 Ranger Counting Legal For Trade Scale W/ NiMH Battery and 2nd RS232, 3000 g x 0.1 g
SKU: RC3RS/3 Capacity x Readability : 3000 g x 0.1 g Legal For Trade: 3000 g x 0.5 g Pan Size: 9.5 x 8 in More Info |
$1,351.11 |
|||
Ohaus RC6RS/3 Ranger Counting Legal For Trade Scales w/ NiMH and 2nd RS232, 6000 g x 0.2 g
SKU: RC6RS/3 Capacity x Readability : 6000 g x 0.2 g Legal For Trade: 6000 g x 1 g Pan Size: 9.5 x 8 in More Info |
$1,351.11 |
|||
Ohaus RC12LS/3 Ranger Counting Legal For Trade Scale w/NiMH and 2nd RS232, 12000 g x 0.5 g
SKU: RC12LS/3 Capacity x Readability : 12 kg x 0.5 g Legal For Trade: 12 kg x 2 g Pan Size: 14 x 9.5 in More Info |
$1,470.22 |
|||
Ohaus RC30LS/3 Ranger Counting Legal For Trade Scale W/ NiMH Battery and 2nd RS232, 30000 g x 1 g
SKU: RC30LS/3 Capacity x Readability : 30 kg x 1 g Legal For Trade: 30 kg x 5 g Pan Size: 14 x 9.5 in More Info |
$1,541.33 |
|||
Ohaus RC60LS/3 Ranger Counting Legal For Trade Scale W/ NiMH Battery and 2nd RS232, 60000 g x 2 g
SKU: RC60LS/3 Capacity x Readability : 60 kg x 2 g Legal For Trade: 60 kg x 0.01 kg Pan Size: 14 x 9.5 in More Info |
$1,541.33 |
|
