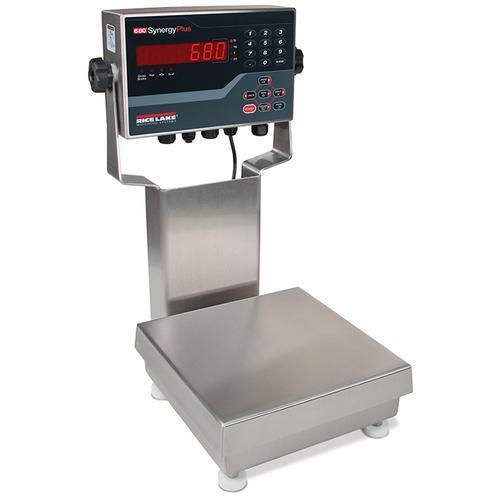

Rice Lake CW-90XB-680 201411 Legal for Trade IP69K 10 x 10 inch Bench Scale with 12 in Column 25 x 0.005 lb

Features

Rice Lake’s CW-90XB light-capacity bench scale has 304 stainless steel construction and contains an IP69K environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90XB is available in capacities up to 100 pounds.

The CW-90XB Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds. Each scale package arrives factory calibrated for quick setup.

This package pairs the IP69K 680 Synergy Series digital weight indicator with the CW-90XB. Rice Lake’s 680 has an LED display, battery-backed time and date, a full numeric keypad, and multiple communication ports. Constructed with durable 304 stainless steel and able to withstand harsh washdowns, it maximizes process efficiency in virtually any environment or application.

Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
Factory calibrated with indicator setup and configured for 5,000 divisions
Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
AC power 100 to 240 VAC
Full numeric keypad
LED display suitable for a variety of environments
Battery backed time and date
Standard RS-232 serial ports for connecting to a variety of peripherals
Ethernet TCP/IP

Specifications

With 680 IP69K Indicator With IP69K CW-90XB Base
Model with 680 IP69K Indicator	201409	201410	201411	201412	201413	201414
Capacity Readability	5 x 0.001 lb	10 x 0.002 lb	25 x 0.005 lb	25 x 0.005 lb	50 x 0.01 lb	100 x 0.02 lb
Capacity Readability	2500 x 0.5 g	5000 x 1 g	10,000 x 2 g	10,000 x 2 g	25,000 x 5 g	50 x 0.01 kg
Pan Size	10 x 10 in			12 x 12 in
Rating	IP69K (IP66 with RJ45)
Scale Construction	304 stainless steel
Maximum Overload	180% to 200% depending on capacity
Overload Protection	Five-point, independently adjusted
Scale Frame	AISI304L, straight line finish, Ra= 45 +/- 10
Scale Cover	AISI304L, straight line finish, Ra= 45 +/- 10
Cable Length	34 in
Compensated Temperature Range	14 °F to 104 °F (-10 °C to 40 °C)
Legal for Trade	Base:NTEP 95-072, Class III 5,000 d Indicator: NTEP 19-021
Legal for Trade	Measurement Canada Base: AM-5082 Indicator: AM-6121C
Interface	Two full-duplex RS-232 RS-485/422 (five -wire) Micro USB (device) Ethernet TCP/IP (10/100)
Display	Seven 0.8 in tall, seven-segment digits
Annunciators	Eight LED
Keys/Buttons	Flat membrane panel, tactile feel (18 buttons plus on/off)
