| Rice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds Rice Lake CW-90B-680 201309 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 10 x 0.002 lb more ... |
| Industrial Scales > Bench Scales > Bench Scales with Column | |||||||
|
|||||||

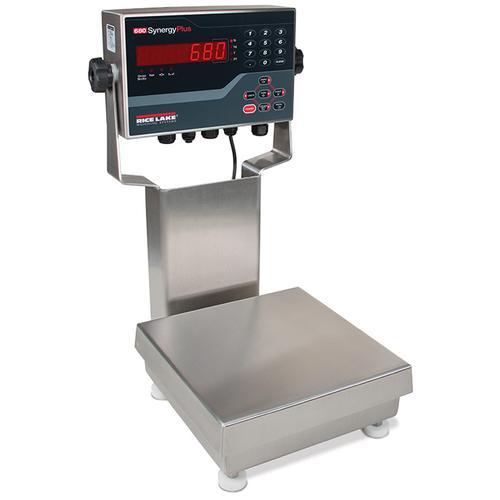

OverviewRice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds Rice Lake CW-90B-680 201309 Legal for Trade 10 x 10 inch Bench Scale with 12 in Column 10 x 0.002 lb
Capacity x Readability
Manufature:
Rice LakeNon Legal Mode:10 lb x 0.002 lb Legal For Trade: 10 lb x 0.002 lb Pan Size 10 x 10 in SKU: 201309 Weight: 25.00 lb |
|||||||
Rice Lake’s CW-90B light-capacity bench scale has 304 stainless steel construction and contains an IP67 environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds. The CW-90B Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds. Each scale package arrives factory calibrated for quick setup. This package pairs the 680 Synergy Series digital weight indicator with the CW-90B. Rice Lake’s 680 has an LED display, battery-backed time and date, a full numeric keypad, and multiple communication ports. Constructed with durable 304 stainless steel and able to withstand harsh washdowns, it maximizes process efficiency in virtually any environment or application.
| With 380 Indicator | |||||||
|---|---|---|---|---|---|---|---|
| 201308 | 201309 | 201310 | 201311 | 201312 | 201313 | ||
| Capacity Readability |
5 x 0.001 lb | 10 x 0.002 lb | 25 x 0.005 lb | 25 x 0.005 lb | 50 x 0.01 lb | 100 x 0.02 lb | |
| 2500 x 0.5 g | 5000 x 1 g | 10,000 x 2 g | 10,000 x 2 g | 25,000 x 5 g | 50 x 0.01 kg | ||
| Pan Size | 10 x 10 in | 12 x 12 in | |||||
| Rating | IP67 aluminum, environmentally sealed | ||||||
| Scale Construction | 304 stainless steel | ||||||
| Maximum Overload | 180% to 200% depending on capacity | ||||||
| Overload Protection | Five-point, independently adjusted | ||||||
| Scale Frame | AISI304L, straight line finish, Ra= 45 +/- 10 | ||||||
| Scale Cover | AISI304L, straight line finish, Ra= 45 +/- 10 | ||||||
| Cable Length | 34 in | ||||||
| Compensated Temperature Range | 14 °F to 104 °F (-10 °C to 40 °C) | ||||||
| Legal for Trade | Base:NTEP 95-072, Class III 5,000 d Indicator: NTEP 19-021 |
||||||
| Measurement Canada Base: AM-5082 Indicator: AM-6121C |
|||||||
| Interface | Two full-duplex RS-232 RS-485/422 (five -wire) Micro USB (device) Ethernet TCP/IP (10/100) |
||||||
| Display | Seven 0.8 in tall, seven-segment digits | ||||||
| Annunciators | Eight LED | ||||||
| Keys/Buttons | Flat membrane panel, tactile feel (18 buttons plus on/off) | ||||||
