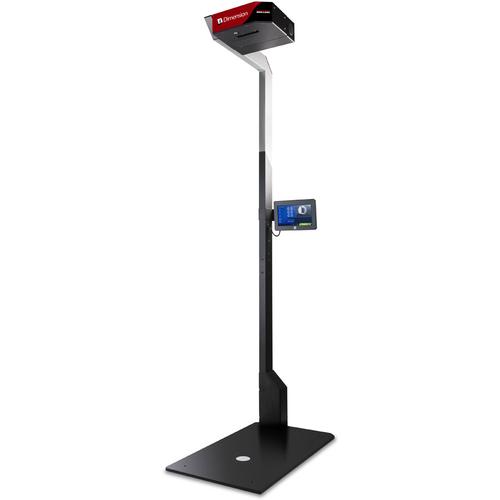

OverviewA New Era of Shipping Rice Lake's iDimension Plus is the fastest static tabletop solution for calculating dimensions of boxes, flats, polybags, tubes and irregular-shaped packages. The iDimension Plus eliminates revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers. Users can truly plug and play with the iDimension Plus simply open and assemble to instantly display dimensions.
|
A New Era of Shipping Rice Lakes iDimension Plus is the fastest static tabletop solution for calculating dimensions of boxes, flats, polybags, tubes and irregular-shaped packages. The iDimension Plus eliminates revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers. Users can truly plug and play with the iDimension Plus—simply open and assemble to instantly display dimensions.
A Dimensioning System Like Never Before Industry Leading 0.2-Second Dimensioning Innovative Technology Simple to Set Up
When it comes to calculating dimensions of boxes, flats, polybags and more, Rice Lakes iDimension Plus is the fastest static tabletop solution on the market. The iDimension Plus helps prevent revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers. Put the iDimension Plus to use right away—simply open and assemble to instantly display dimensions.
Dimension parcels faster and more accurately than manual measurements with the iDimension Plus. In an industry-leading 0.2 seconds, parcels are automatically calculated at 0.2 inches, eliminating the risk for human error. Irregular-shaped packages like cylinders, spheres, tubes, polybags and uneven shapes are calculated within +/-0.5 inches. The iDimension Plus is NTEP certified for single irregular and cubic-shaped non-transparent objects.
The iDimension Plus uses multiple patented 3D-imaging technologies with advanced algorithms to optimize time and throughput for static outbound shipments. For objects under 1.2 inches, unique flat-detection technology measures envelopes and small packages. Each dimension provides an overhead image for use during claim disputes on damaged packages. A color touchscreen display provides instant feedback, a live image, measurements, weight and operator functions for day-to-day use.
Start using the iDimension Plus within 30 minutes of unboxing with an easy-to-use setup wizard. Simply connect to the web-based interface to begin harnessing advanced configuration and communication settings.
Images

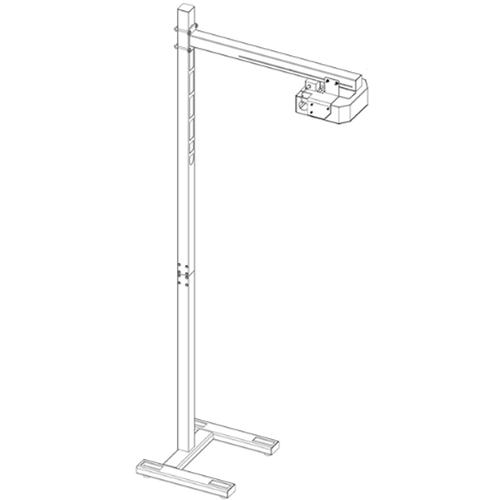

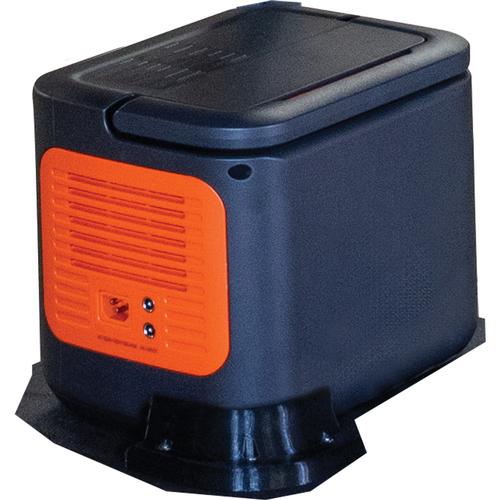

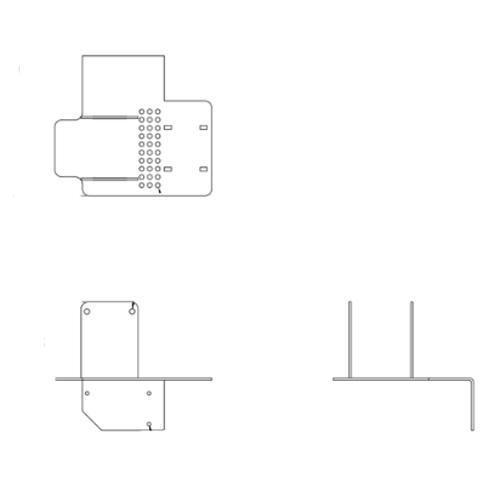

Peripherals
200972 | 200967 | 192380 | 200966 | |
---|---|---|---|---|
Pole Assembly Height | 1.2 M | 1.5 M | ||
Color Image | low resolution | 4k resolution | low resolution | 4k resolution |
Legal for Trade | NTEP Certified COC#19-040 | |||
PHYSICAL DIMENSIONS | Length: 25 in (63.5 cm) Width: 14.25 in (56 cm) Height: 63.8 in (162 cm) Weight: 28.5 lb (13 kg) |
|||
POWER REQUIREMENTS | Single power source 110-240 V external power supply, US power cord | |||
OBJECT COLORS | All opaque packaging | |||
MEASUREMENT TIME | 0.2 seconds, scale settling times may vary by manufacturer | |||
OPERATING TEMPERATURE | 32° F to 86° F (0° C to 30° C) | |||
HUMIDITY | Non-condensing | |||
MECHANICAL ENVIRONMENT CLASS | M1 | |||
ELECTROMAGNETIC CLASS | E1 | |||
I/O PORTS | USB type A port (interface to scale) 10/100/100BASE-T Ethernet port (interface to PC) |
|||
SOFTWARE INTEGRATION | API and SDK files available for network device integration | |||
PACKAGE CONTENTS | iDimension Plus, calibration object, USB display and US power cord | |||
WARRANTY | 1 year standard |
$5,350.75 |
|
