Scales > pH Meters > pH Meters | ||||||
|
||||||
OverviewProfessional portable watertight (IP67) dual-channel meters with data memory, infrared interface for data transfer to a PC or a printer, bright backlighting and extensive GLP support - ideal for special requirements in regulated sectors or for measurements under extreme conditions.
|

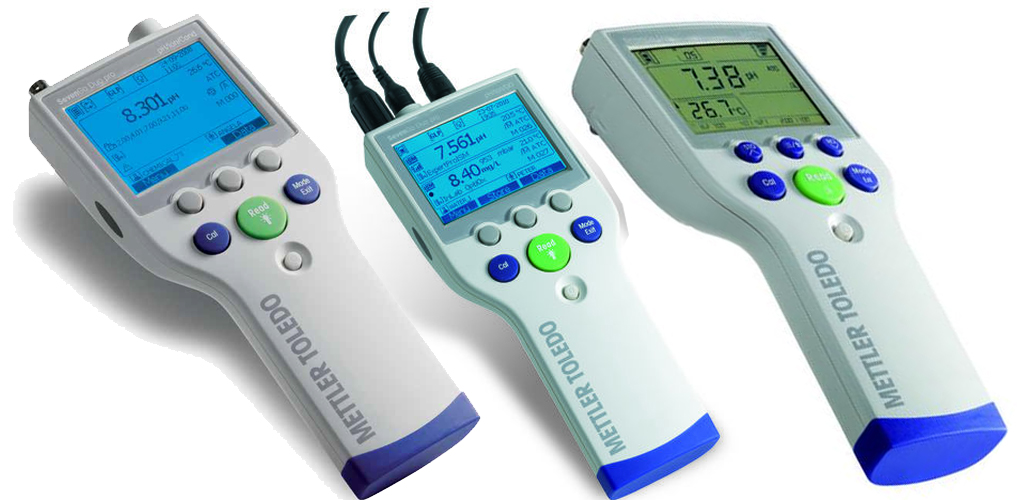

SevenGo Duo pro™ SevenGo Duo™ Intuitive and Easy Operation Intelligent Sensor Management (ISM®) Ergonomic Masterpiece Smart multi-parameter hand-held meter Designed to withstand harsh environments Avoid mistakes and save time with ISM®
Professional portable watertight (IP67) dual-channel meters with data memory, infrared interface for data transfer to a PC or a printer, bright backlighting and extensive GLP support - ideal for special requirements in regulated sectors or for measurements under extreme conditions.
Watertight (IP67) portable dual-channel meters for routine pH measurement with a large display, data memory and indication of the electrode status - ideal for applications that require a high-quality meter with exceptional performance.
Designed in such a way that a single keystroke triggers a calibration run, measurement or review of stored data.
ISM® leaves nothing to chance! Calibration data and history are stored in the sensor and transferred automatically upon connection to the meter.
Fits your hand perfectly, regardless of whether you are right- or left-handed. Your thumb can reach all buttons – easy to operate.
A high precision dual-channel pH/ optical DO meter for simultaneous analysis of two electrochemical parameters. Easy text guided operation.
Robust and watertight for use in demanding conditions. Efficiency thanks to unique ergonomics and simple operation.
Intelligent Sensor Management (ISM) identifies the sensor in use. The current calibration data are stored on the sensor. Mistakes are eliminated.
Model | SG68-B 51302610 |
SG68-ELK 51302611 |
SG68-FK2 51302612 |
SG98-B 51302661 |
SG98-ELK 51302662 |
SG98-FK2 51302663 |
SG98-FK5 51302664 |
---|---|---|---|---|---|---|---|
SevenGo Duo Kits | Instrument only | Electrode kit with InLab® Expert Pro-ISM and InLab®605-ISM (both IP67, 1.8m cable) | Field kit with InLab® Expert Pro-ISM, InLab®605-ISM (both IP67, 1.8m cable) and uGo™ | Instrument only | Electrode kit with InLab® Expert Pro-ISM and InLab® OptiOx (both IP67, 1.8 m cable) | Field kit* with InLab® Expert Pro-ISM, InLab® OptiOx (both IP67, 1.8 m cable) and uGo™ | Field kit* with InLab® Expert Pro-ISM-5m, InLab® OptiOx-5m (both IP67, 5 m cable) and uGo™ |
pH measuring range | -2.000 to 19.999 | -2.000 to 19.999 | -2.000 to 19.999 | -2.000 to 19.999 | -2.000 to 19.999 | -2.000 to 19.999 | -2.000 to 19.999 |
pH resolution | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
pH accuracy | ±0.002 | ±0.002 | ±0.002 | ±0.002 | ±0.002 | ±0.002 | ±0.002 |
Temperature Range | -5.0 to 130.0 °C (ATC) -30.0 to 130.0 °C (MTC |
-5.0 to 130.0 °C (ATC) -30.0 to 130.0 °C (MTC |
-5.0 to 130.0 °C (ATC) -30.0 to 130.0 °C (MTC |
-5.0 to 130.0 °C (ATC) -30.0 to 130.0 °C (MTC) |
-5.0 to 130.0 °C (ATC) -30.0 to 130.0 °C (MTC) |
-5.0 to 130.0 °C (ATC) -30.0 to 130.0 °C (MTC) |
-5.0 to 130.0 °C (ATC) -30.0 to 130.0 °C (MTC) |
Temperature Resolution | 0.1 °C | 0.1 °C | 0.1 °C | 0.1 °C | 0.1 °C | 0.1 °C | 0.1 °C |
Temperature accuracy | ±0.2 °C | ±0.2 °C | ±0.2 °C | ±0.2 °C | ±0.2 °C | ±0.2 °C | ±0.2 °C |
mV Measuring range | -1999 to 1999 | -1999 to 1999 | -1999 to 1999 | -1999 to 1999 | -1999 to 1999 | -1999 to 1999 | -1999 to 1999 |
mV resolution | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
mV accuracy | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
Ions (units) mg/L, mmd/ L, mol/L | 0.000 to 999.9% 0.000 to 9999 ppm 1.00E-9 to 9.99E+9 |
0.000 to 999.9% 0.000 to 9999 ppm 1.00E-9 to 9.99E+9 |
0.000 to 999.9% 0.000 to 9999 ppm 1.00E-9 to 9.99E+9 |
0.000 to 999.9% 0.000 to 9999 ppm 1.00E to 9…9.99E+9 |
0.000 to 999.9% 0.000 to 9999 ppm 1.00E to 9…9.99E+9 |
0.000 to 999.9% 0.000 to 9999 ppm 1.00E to 9…9.99E+9 |
0.000 to 999.9% 0.000 to 9999 ppm 1.00E to 9…9.99E+9 |
Ions Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Saturation Measuring range | 0.0 to 600% | 0.0 to 600% | 0.0 to 600% | 0 to 500 % | 0 to 500 % | 0 to 500 % | 0 to 500 % |
Saturation Resolution | 0.1 to 1 | 0.1 to 1 | 0.1 to 1 | 0.1 % | 0.1 % | 0.1 % | 0.1 % |
Saturation accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Oxygen (mg/L, ppm) | 0.00 to 99.00 | 0.00 to 99.00 | 0.00 to 99.00 | 0.00 to 50.00 | 0.00 to 50.00 | 0.00 to 50.00 | |
Oxygen Resolution | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Oxygen accuracy | ±0.5% max. 0.03 | ±0.5% max. 0.03 | ±0.5% max. 0.03 | ± 0.1 mg/L from 0 to 8 ± 0.2 mg/L from 8 to 20 ± 10% from 20 to 50 |
± 0.1 mg/L from 0 to 8 ± 0.2 mg/L from 8 to 20 ± 10% from 20 to 50 |
± 0.1 mg/L from 0 to 8 ± 0.2 mg/L from 8 to 20 ± 10% from 20 to 50 |
± 0.1 mg/L from 0 to 8 ± 0.2 mg/L from 8 to 20 ± 10% from 20 to 50 |
Pressure Measuring range | 500 to 1100 mbar | 500 to 1100 mbar | 500 to 1100 mbar | 500 to 1100 mbar | 500 to 1100 mbar | 500 to 1100 mbar | 500 to 1100 mbar |
Pressure Resolution | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Pressure accuracy | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
Sensor input | pH: BNC; RCA/cinch (both IP67) | DO: Mini-LTW (IP67) | |||||
Conductivity sensor input | BNC; RCA/cinch (both IP67) | ||||||
Outputs | IR to printer or PC via RS232 or USB | IR to printer or PC via RS232 or USB | |||||
Power supply | 4 1.5 V AA batteries or 1.3 V NiMH accumulators | 4 1.5 V AA batteries or 1.3 V NiMH accumulators | |||||
Operating conditions | 0 to 40 °C, 5 to 85% rel. humidity (non-cond.) | 0 to 40 °C, 5 to 85% rel. humidity (non-cond.) | |||||
Size/weight | 220 x 90 x 45 mm/368 g (without batteries) | 220 x 90 x 45 mm/325 g (without batteries) |
$2,160.40 |
|
