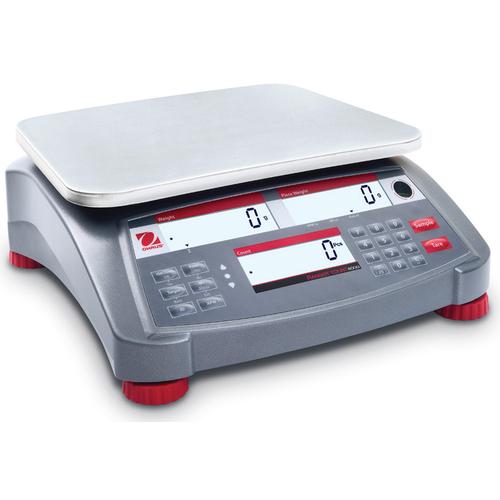

Ohaus RC41M30- Ranger 4000 Counting Scale6 0 × 0.002 lb - Coupons and Discounts May be Available

Features

The Best Value for Durable Industrial Counting - Ranger Count 4000 is the ideal tool for tough industrial counting jobs that require durability and accuracy at a great value. Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with weighing, parts counting, check counting, and accumulation functions, and can produce results for a variety of industrial weighing, counting, and measurement needs

Standard Features Include -

Full Metal Housing Offers Strength and Protection and Maximizes Product Life — Sturdy metal housing and slip-resistant rubber feet provide protection and stability necessary for tough industrial weighing while extending the scale’s usable life.
Precise Counting and Weighing Performance Produce Undoubtedly Accurate Results — Accurate weighing and counting performance is assured through Ranger Count 4000’s 1:1,500,000 internal counting resolution and auto-optimization software that reduces errors and ensures accuracy.
User-Friendly Software Makes Ranger 4000 Very Easy to Operate — The combination of SmarText™ software, a centrally located count display and dedicated Sample & Tare keys make Ranger Count 4000 very easy to operate.
Several Connectivity Options Provide Connection to Multiple Peripheral Devices — Ranger Count 4000 offers the highest level of connectivity in its class through its Standard RS232 with optional Ethernet, second RS232, or USB interface.

Metal Housing Ensures Protection With die-cast sealed metal housing and slip-resistant rubber feet, Ranger Count 4000 was built to maximize product life and withstand heavy duty use and ensure accurate operation in industrial environments.

Precise Counting and Weighing Performance The high resolution Ranger Count 4000 has a 1:30,000 display resolution and 1:1,500,000 internal counting resolution. It also features advanced auto-optimization software which recalculates the average piece weight as the overall weight increases, ensuring accuracy and minimizing counting errors.

Ranger Count 4000 also offers a 30 item library data storage function that can store 12-digit part numbers, average piece weights, checkcounting or checkweighing parameters, tare weights and accumulated counts or weights for quick and simple retrieval of frequently used data.

Intuitive Software Supports Simple Navigation The inviting display and navigation make Ranger Count 4000 extremely simple to use. The three-window backlit LCD display includes a centrally-located count display as well as weight and piece weight displays. Eight function keys, including dedicated Sample and Tare keys, and full numeric keypad make setup and input operations simple and straightforward.

More Connectivity Options Ranger Count 4000 can be integrated into systems and connected to multiple peripheral devices through its standard RS232 with optional Ethernet, second RS232, or USB. Ranger Count 4000 can also support two-scale counting through the optional 2nd platform to support weighing jobs that require a higher capacity platform or additional platform space. Whether your data transfer requirements are simple or complex, Ranger Count 4000 offers the necessary functionality to meet your needs.

Application Modes

Weighing —Determine the weight of items in the selected unit of measure.
Parts Counting — Count samples of uniform weight.
Check Weighing/Counting — Compare the weight/count of a sample against target limits.
•Accumulation — Totalization of weight and count. Calculates total accumulated weight and count of separate items

Rapid Stabilization Ranger Count 4000 produces accurate results within one second. The rapid stabilization virtually eliminates your wait time and allows you to move at a pace determined by you and not your weighing equipment. Work efficiently and with confidence to ensure accurate results. Maximize your throughput without sacrificing accuracy with the Ranger Count 4000.

Internal Power Supply and Rechargeable Battery Say goodbye to being restricted to working only near power outlets! Ranger Count 4000 is equipped with a rechargeable lead acid battery that can provide power for more than 210 hours! It can also be powered through the easy connect power cord that takes up minimal space and automatically adapts to different power line voltages and frequencies, eliminating disruptions in workflow due to power outages and shortages.

Metrology The Ranger Count 4000 meets the Class III requirements of OIML R76, NIST Handbook 44 and Canada Weights and Measures Regulations.

Specifications

Model	RC41M3	RC41M6	RC41M15	RC41M30
Capacity × Readability	6 × 0.0002 lb 3 × 0.0001 kg 3,000 × 0.1 g 96 × 0.005 oz	15 × 0.0005 lb 6 × 0.0002 kg 6,000 × 0.2 g 240 × 0.01 oz	30 × 0.001 lb 15 × 0.0005 kg 15,000 × 0.5 g 480 × 0.02 oz	60 × 0.002 lb 30 × 0.001 kg 30,000 × 1 g 960 × 0.05 oz
Legal for Trade Capacity × Readability	6 × 0.002 lb 3 × 0.001 kg 3,000 × 1 g 96 × 0.05 oz	15 × 0.005 lb 6 × 0.002 kg 6,000 × 2 g 240 × 0.1 oz	30 × 0.01 lb 15 × 0.005 kg 15,000 × 5g 480 × 0.2 oz	60 × 0.02 lb 30 × 0.01 kg 30,000 × 10 g 960 × 0.5 oz
Legal for Trade	OIML R76 (R76/2006-NL1-15.21) NTEP (CC 13-022) Measurement Canada (AM-5907C)
Min. Recommended Sample Weight	2 g / 0.004 lb	4 g / 0.01 lb	10 g / 0.02 lb	20 g / 0.04 lb
Min. Recommended APW	0.01 g / 0.00002 lb	0.02 g / 0.00005 lb	0.05 g / 0.0001 lb	0.1 g / 0.0002 lb
Max. Internal Counting Resolution	1:1,500,000
Maximum Displayed Resolution	1:30,000
Certified/Approval Resolution	1:3,000
Construction	Stainless steel platform, Die cast aluminum housing
Weighing Units	kg, g, lb, oz, lb:oz
Application Modes	Weighing, Parts Counting, Checkweighing, Checkcounting, Accumulation
Display	3-Window, 1 inch / 26mm high LCD display with white backlight, 6-digit, 7-segment
Checkweighing Indicators	3 LED (yellow, green, red) with configurable operation and alert beeper
Memory	30 item library
Keyboard	8 function, 12 numeric mechanical keys
Zero Range	4% or 20% of full scale capacity
Tare Range	Full capacity by subtraction
Stabilization Time	1 second
Auto-Zero Tracking	Off, 0.5, 1 or 3 divisions
Safe Overload Capacity	150% of capacity
Power	100-240 VAC / 50-60 Hz internal universal power supply, internal rechargeable lead acid battery
Battery Life	210 hours continuous use with 12 hour recharge time
Calibration	External, with user-selectable calibration weight
Interface	Built-in RS232, optional 2nd platform, 2nd RS232, USB, Ethernet
Operating Temperature Range	14°F to 104°F / -10°C to 40°C
Platform Size (W × L)	11.8 × 8.9 in / 300 mm × 225 mm
Scale Dimensions (W × L × H)	12.4 × 12.9 × 4.8 in / 315 × 327 × 122 mm
Shipping Dimensions (W × L × H)	15.6 × 17.6 × 7.7 in / 397 × 447 × 195 mm
Net Weight	13 lb / 5.9 kg
Shipping Weight	15.9 lb / 7.2 kg

Other Standard Features and Equipment
Stainless steel platform, sealed front panel, menu lockswitch, up front level indicator, adjustable leveling feet, selectable environmental and auto-print settings, stability indicator, overload and underload indicators, low battery indicator, auto shut-off, auto tare

Compliance

Metrology: OIML R76 (R76/2006-NL1-15.21); NTEP (CC 13-022); Measurement Canada (AM-5907C)
Product Safety: IEC/EN 60950-1; CAN/CSA C22.2 60950-1; UL 60950-1
Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class B;Industry Canada ICES-003 Class B
Other: WEEE/ROHS

Optinal Accessories

2nd Platform, Kit - 30037446
Ethernet,Kit - 30037447
Second RS232 Kit - 30037448
USB Kit - 30037449
In Use Cover - 30240697
SF40A Impact Printer with Cable - 30064203

Other Models

Other Ohaus Ranger 4000 Counting Scale

Image	Name			Price
	Ohaus RC41M3 - Ranger 4000 Counting Scale (30236779) - 6 × 0.0002 lb SKU: RC41M3 Capacity x Readability : 6 lb x 0.0002 lb Legal For Trade: 6 lb x 0.002 lb Pan Size: 11.8 × 8.9 in More Info			$802.90
	Ohaus RC41M6 - Ranger 4000 Counting Scale (30236940) - 15 × 0.0005 lb SKU: RC41M6 Capacity x Readability : 15 lb x 0.0005 lb Legal For Trade: 15 lb x 0.005 lb Pan Size: 11.8 × 8.9 in More Info			$802.90
	Ohaus RC41M15- Ranger 4000 Counting Scale (30236941) - 30 × 0.001 lb SKU: RC41M15 Capacity x Readability : 30 lb x 0.001 lb Legal For Trade: 30 lb x 0.01 lb Pan Size: 11.8 × 8.9 in More Info			$802.90
	Ohaus RC41M30- Ranger 4000 Counting Scale (30236942) - 60 × 0.002 lb SKU: RC41M30 Capacity x Readability : 60 lb x 0.002 lb Legal For Trade: 60 lb x 0.02 lb Pan Size: 11.8 × 8.9 in More Info			$802.90

Optional Accessories

more info	Ohaus SF40A Portable Dot-Matrix Impact Printer more info Price: $1,107.55 In Stock OHAUS Value in a Full-Featured, Portable Printer The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results. Standard Features Include Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements. Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages. Other Standard Features Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232. Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.

more info	Ohaus 30037449 USB Interface Kit for VALOR 7000 - Ranger more info Price: $183.60 In Stock Ohaus 30037449 VALOR 7000 - Ranger 3000 USB Interface Kit

more info	Ohaus 30037447 Ethernet Interface Kit for VALOR 7000 and Ranger more info Price: $183.60 In Stock Ohaus 30037447 VALOR 7000 Ethernet Interface Kit

more info	Ohaus 30037448 Second RS232 Interface Kit for VALOR 7000 Ranger more info Price: $183.60 In Stock Ohaus 30037448 VALOR 7000 Ranger 3000 Second RS232 Interface Kit

more info	Ohaus 30037446 Second Scale Kit for Ranger more info Price: $183.60 In Stock Ohaus 30037446 Second Scale Kit for Ranger Count 3000

more info	Ohaus 30240697 In Use Cover for Ranger 3000, Ranger 4000 and Valor 7000 (R41 RC41) more info Price: $44.10 In Stock Ohaus 30240697 In Use Cover for Ranger 4000 (R41 RC41) Compatible with : Compact Scale, R31P1502 AM Compact Scale, R31P3 AM Compact Scale, R31P6 AM Compact Scale, R31P15 AM Compact Scale, R31P30 AM Compact Scale, V71P1502T AM Compact Scale, V71P3T AM Compact Scale, V71P6T AM Compact Scale, V71P15T AM Compact Scale, V71P30T AM Counting Scale, RC31P3 AM Counting Scale, RC31P6 AM Counting Scale, RC31P15 AM Counting Scale, RC31P30 AM Compact Scale, R41ME30 AM Compact Scale, R41ME3 AM Counting Scale, RC41M30 AM Compact Scale, R41ME15 AM Counting Scale, RC41M15 AM Counting Scale, RC41M6 AM Compact Scale, R41ME6 AM Counting Scale, RC41M3 AM Counting Scale, RC31P1502 AM
