The Model U Force Gauge is an accurate (±1% of full range) mechanical compression-measurement instrument. Its slim-line design has repeatedly proven valuable in installations where space is at a premium. The versatility of this simple instrument is demonstrated by the fact that it can be used as a handheld device, permanently mounted on a flat surface plate, or used in test fixtures more ... |
Features
The Model U Force Gauge is an accurate (±1% of full range) mechanical compression-measurement instrument. Its slim-line design has repeatedly proven valuable in installations where space is at a premium. The versatility of this simple instrument is demonstrated by the fact that it can be used as a handheld device, permanently mounted on a flat surface plate, or used in test fixtures.
Dillon Model U Force Gauge Low-Range RECESSED Bottom comes with:
- Force Gauge Assembly
- Carrying Case
- Two (2) Compression Load Fittings of Choice
Dillon Model U Force Gauge Low-Range FLAT Bottom comes with:
- Force Gauge Assembly
- Carrying Case
- One (1) Compression Load Fittings of Choice
Dillon Model U Force Gauge High-Range FLAT Bottom comes with:
- Force Gauge Assembly
- Carrying Case
- One (1) Compression Load Fittings of Choice
How the U Force Gauge Works
The Dillon Model U Force Gauge employs a deflection beam machined from aircraft quality alloy steel and heat treated to develop optimum strength and spring characteristics. A precision dial indicator is mounted at the null point of this beam.

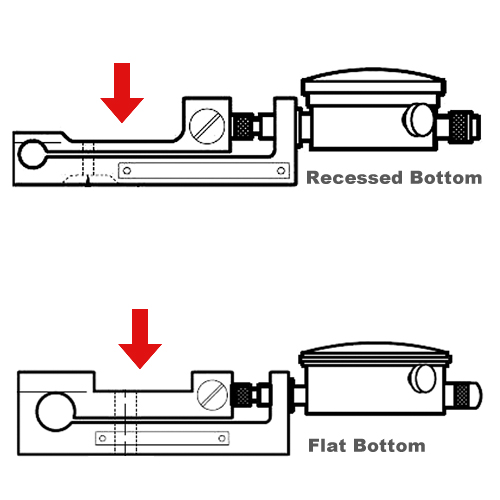

Compression force is normally applied against a single pressure fitting mounted on the upper half of the beam. (For accurate calibration, designate the type of pressure fitting you wish to use with the U Force Gauge. They are of four types: domed, cupped, flat, or a flat nylon insert. Flat bottom gauges require only one fitting. Recessed bottom gauges have top and bottom fittings). When load is exerted, the beam moves downward causing a slanted anvil on the free end to push against the indicator plunger. The indicator reading is a direct representation of the applied load.

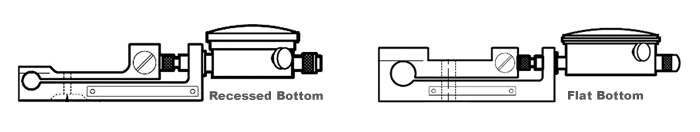

PLEASE NOTE! **Recessed Bottom Optional on All Low-Range Models ONLY**
Part Numbers & Weight Capacities for The Dillon Model U Force Gauge (Low Range Recessed-Bottom) |
Pounds (lb) |
Kilograms (kg) |
Part Number |
Capacity x Dial Divisions |
Part Number |
Capacity x Dial Divisions |
30489-0015 |
25lb x 0.25 (lb) |
30489-0064 |
10kg x 0.10 (kg) |
30489-0023 |
50lb x 0.50 (lb) |
30489-0072 |
25kg x 0.25 (kg) |
30489-0031 |
100lb x 1 (lb) |
30489-0080 |
50kg x 0.50 (kg) |
30489-0056 |
250lb x 2.50 (lb) |
30489-0098 |
100kg x 1 (kg) |
Part Numbers & Weight Capacities for The Dillon Model U Force Gauge (Low Range Flat-Bottom) |
Pounds (lb) |
Kilograms (kg) |
Part Number |
Capacity x Dial Divisions |
Part Number |
Capacity x Dial Divisions |
30354-0017 |
25lb x 0.25 (lb) |
30354-0066 |
10kg x 0.10 (kg) |
30354-0025 |
50lb x 0.50 (lb) |
30354-0074 |
25kg x 0.25 (kg) |
30354-0033 |
100lb x 1 (lb) |
30354-0082 |
50kg x 0.50 (kg) |
30354-0058 |
250lb x 2.50 (lb) |
30354-0090 |
100kg x 1 (kg) |
Part Numbers & Weight Capacities for The Dillon Model U Force Gauge (High-Range Flat-Bottom) |
Pounds (lb) |
Kilograms (kg) |
Part Number |
Capacity x Dial Divisions |
Part Number |
Capacity x Dial Divisions |
30482-0020 |
500lb x 5 (lb) |
- N/A - |
- N/A - |
30482-0053 |
1,000lb x 10 (lb) |
30482-0079 |
500kg x 5 (kg) |
30478-0018 |
2,000lb x 20 (lb) |
30478-0042 |
1,000kg x 10 (kg) |
30478-0034 |
5,000lb x 50 (lb) |
- N/A - |
- N/A - |
30432-0039 |
10,000lb x 100 (lb) |
30432-0054 |
5,000kg x 50 (kg) |
Dillon offers a capacity for every job
U Force Gauges are available for measurement in pounds, kilograms or newtons. There are 9-pound capacities ranging from 25 x .25 to 10,000 x 100 lb. The 7 kilogram capacities range from 10 x .1 to 5000 x 50 kg. On light capacity models with capacities from 25 to 250 lb or 10 to 100 kg, you can choose between flat bottom and recessed design.
Features
- Slim design works in small spaces
- Multiple choices of pressure fittings
- Mount permanently, flat, in test fixtures or by hand
|
Low-Range Flat-Bottom Model U Force Gauge |
Part Number |
Capacity in Pounds (Kilograms) |
A in.(mm) |
B in. (mm) |
C in. (mm) |
D in. (mm) |
E in. (mm) |
F in. (mm) |
G in. (mm) |
H in. (mm) |
J in. (mm) |
K in. (mm) |
L in. (mm) |
M in. (mm) |
N in. (mm) |
30354-0017 (30354-0066) |
25 x .25 (10 x .1) |
3.28 (83.3) |
5.50 (139.6) |
.73 (18.5) |
.36 (9.1) |
.97 (24.6) |
.56 (14.2) |
.90 (22.8) |
1.40 (35.5) |
1.87 (47.5) |
.46 (11.7) |
.094 (2.4) |
.349 (8.9) |
1.67 (42.4) |
30354-0025 (30354-0074) |
50 x .5 (25 x .25) |
3.28 (83.3) |
5.50 (139.6) |
.73 (18.5) |
.36 (9.1) |
.97 (24.6) |
.56 (14.2) |
.90 (22.8) |
1.40 (35.5) |
1.87 (47.5) |
.46 (11.7) |
.094 (2.4) |
.349 (8.9) |
1.67 (42.4) |
30354-0033 (30354-0082) |
100 x 1 (50 x .5) |
3.28 (83.3) |
5.50 (139.6) |
.73 (18.5) |
.36 (9.1) |
.97 (24.6) |
.56 (14.2) |
.90 (22.8) |
1.40 (35.5) |
1.87 (47.5) |
.46 (11.7) |
.094 (2.4) |
.349 (8.9) |
1.67 (42.4) |
30354-0058 (30354-0090) |
250 x 2.5 (100 x 1) |
3.28 (83.3) |
5.50 (139.6) |
.73 (18.5) |
.36 (9.1) |
.97 (24.6) |
.56 (14.2) |
.90 (22.8) |
1.40 (35.5) |
1.87 (47.5) |
.46 (11.7) |
.094 (2.4) |
.349 (8.9) |
1.67 (42.4) |
|
Also available in newton calibration (Call for Information (800) 832-0055) |
Low-Range Recessed-Bottom Model U Force Gauge |
Part Number |
Capacity in Pounds (Kilograms) |
A in.(mm) |
B in. (mm) |
C in. (mm) |
D in. (mm) |
E in. (mm) |
F in. (mm) |
G in. (mm) |
H in. (mm) |
J in. (mm) |
K in. (mm) |
L in. (mm) |
M in. (mm) |
N in. (mm) |
30489-0015 (30489-0064) |
25 x .25 (10 x .1) |
3.28 (83.3) |
5.50 (139.6) |
.73 (18.5) |
.36 (9.1) |
.97 (24.6) |
.56 (14.2) |
.90 (22.8) |
1.40 (35.5) |
1.87 (47.5) |
.46 (11.7) |
.094 (2.4) |
.394 (8.9) |
1.67 (42.4) |
30489-0023 (30489-0072) |
50 x.5 (25 x .25) |
3.28 (83.3) |
5.50 (139.6) |
.73 (18.5) |
.36 (9.1) |
.97 (24.6) |
.56 (14.2) |
.90 (22.8) |
1.40 (35.5) |
1.87 (47.5) |
.46 (11.7) |
.094 (2.4) |
.394 (8.9) |
1.67 (42.4) |
30489-0031 (30489-0080) |
100 x 1 (50 x .5) |
3.28 (83.3) |
5.50 (139.6) |
.73 (18.5) |
.36 (9.1) |
.97 (24.6) |
.56 (14.2) |
.90 (22.8) |
1.40 (35.5) |
1.87 (47.5) |
.46 (11.7) |
.094 (2.4) |
.394 (8.9) |
1.67 (42.4) |
30489-0056 (30489-0098) |
250 x 2.5 (100 x 1) |
3.28 (83.3) |
5.50 (139.6) |
.73 (18.5) |
.36 (9.1) |
.97 (24.6) |
.56 (14.2) |
.90 (22.8) |
1.40 (35.5) |
1.87 (47.5) |
.46 (11.7) |
.094 (2.4) |
.394 (8.9) |
1.67 (42.4) |
Also available in newton calibration (Call for Information (800) 832-0055) |
High-Range Flat-Bottom Model U Force Gauge |
Part Number |
Capacity in Pounds (Kilograms) |
A in. (mm) |
B in. (mm) |
C in. (mm) |
D in. (mm) |
E in. (mm) |
F in. (mm) |
G in. (mm) |
H in. (mm) |
J in. (mm) |
N in. (mm) |
30482-0020 ( N/A ) |
500 x 5 ( N/A ) |
3.87 (98.0) |
6.75 (171.3) |
.98 (24.9) |
.49 (12.4) |
1.25 (31.5) |
.92 (23.6) |
1.52 (38.6) |
1.67 (42.4) |
2.44 (63.5) |
2.25 (57.2) |
30482-0053 (30482-0079) |
1,000 x 10 (500 x 5) |
3.87 (98.0) |
6.75 (171.3) |
.98 (24.9) |
.49 (12.4) |
1.25 (31.5) |
.92 (23.6) |
1.52 (38.6) |
1.67 (42.4) |
2.44 (63.5) |
2.25 (57.2) |
30478-0018 (30478-0042) |
2,000 x 20 (1000 x 10) |
4.74 (120.1) |
7.94 (201.5) |
.98 (24.9) |
.49 (12.4) |
1.72 (43.7) |
1.41 (35.5) |
2.06 (52.3) |
2.88 (72.8) |
2.75 (69.9) |
30478-0034 ( N/A ) |
5,000 x 50 ( N/A ) |
4.74 (120.1) |
7.94 (201.5) |
.98 (24.9) |
.49 (12.4) |
1.72 (43.7) |
1.41 (35.5) |
2.06 (52.3) |
2.88 (72.8) |
2.75 (69.9) |
30432-0039 (30432-0054) |
10,000 x 100 (5000 x 50) |
4.35 (110.2) |
9.19 (233.2) |
1.44 (36.5) |
.72 (18.3) |
2.12 (53.8) |
1.82 (46.0) |
2.31 (58.6) |
2.32 (58.9) |
3.72 (94.4) |
3.62 (91.9) |
Also available in newton calibration (Call for Information (800) 832-0055) |
