Ohaus Defender 3000 Xtreme Digital Washdown Bench Scales
|
 |
 |
| Legal For Trade |
Canada Measurement Legal |
|
Designed with affordability in mind, but with no compromise on quality!
The OHAUS DefenderTM 3000 Xtreme Series economy line of bench scales is ideal for general weighing and simple counting applications in wet or damp environments. The Defender 3000 Xtreme Series feature a simple, yet rugged, tubular-frame base design and indicators with tactile keys, backlit LCD display, built-in rechargeable battery operation and flexible mounting capabilities. The Defender 3000 Xtreme Series is the solution to your weighing applications that require dependability within an affordable budget.
Standard Features Include:
- Four capacity models: 60lb/30kg, 150lb/60kg, 300lb/150kg, and 600lb/300kg
- Maximum resolution 1:6000-7500d
- 3304 stainless steel pan with stainless steel frame and stainless steel IP67 load cell
- Indicator features a stainless steel housing with NEMA 4X / IP65 protection
- Adjustable non-slip rubber leveling feet with externally visible level indicator
- Multiple weighing units: lb, oz, lb:oz, kg, g
- Parts counting mode with selectable sample sizes, last sample size and average piece weight data
- 1-in/25mm high LCD weight display with high-contrast backlight
- Built-in RS232 for printing and data connection
- Internal universal switching power supply and 58-hour internal rechargeable battery included
Features
Stainless steel housing with backlit LCD weight display, tactile membrane switches, built-in bidirectional RS232C with manual/continuous/interval
printing, hardware configuration lockout switch, internal universal switching power supply and internal sealed lead-acid rechargeable battery.
Software included for parts counting mode with selectable sample sizes, selectable span calibration points, averaging level, auto-zero tracking,
power saving auto-off, Geo Code geographical gravity calibration adjustment and software menu lockouts.
Stainless steel pan with stainless steel tubular frame, non-slip rubber leveling feet with locking nuts, externally
visible level bubble, stainless steel IP67 load cell, down-stops for overload protection, hollow tubular stainless
steel columns
Compliance
- Safety and EMC: EN60950, EN61326, FCC Class A, CE (AC adapter), cULus
- Quality: OHAUS quality management system registered to ISO 9001:2008
|
|
Model Number |
D32XW30VR |
D32XW60VR |
D32XW60VL |
D32XW150VL |
D32XW150VX |
D32XW300VX |
Price |
|
|
|
|
|
|
| Capacity x Readability |
66 X 0.01 lb |
132 X 0.02 lb |
132 X 0.02 l |
330 X 0.05 lb |
330 X 0.05 lb |
660 X 0.1 lb |
| 30 kg X 5 g |
60 kg X 10 g |
60 kg X 10 g |
150 kg X 20 g |
150 kg X 20 g |
300 kg X 50 g |
| 30,000 x 5 g |
60,000 x 10 g |
60,000 x 10 g |
150,000 x 20 g |
150,000 x 20 g |
300,000 x 50 g |
| Maximum Displayed Resolution |
1:6000 |
1:7500 |
1:7500 |
1:7500 |
1:7500 |
1:6000 |
| Legal for Trade |
NTEP Indicator: 08-066A1 Base: 08-021
Canada: Indicator AM-5713C Rec 1 Base: AM-5667 |
| Legal Capacity x Readability |
66 X 0.02 lb |
132 X 0.05 lb |
132 X 0.05 lb |
330 X 0.1 lb |
330 X 0.1 lb |
660 X 0.2 lb |
| 30 kg X 10 g |
60 kg X 20 g |
60 kg X 20 g |
150 kg X 50 g |
150 kg X 50 g |
300 kg X 100 g |
| Scale Protection |
NEMA 4X / IP65 |
| Base Construction |
304 stainless steel pan with stainless steel frame, non-slip rubber leveling feet |
Platform Dimensions
(WxDx min H) |
12 x 14 x 4.8 in
305 x 355 x 123 mm |
16.5 x 21.6 x 5.4 in
420 x 550 x 136 mm |
19.7 x 25.6 x 5.8 in
500 x 650 x 147 mm |
| Column |
13.8 in / 350 mm fixed height,stainless steel |
27.6 in / 700 mm fixed height, stainless steel |
| Leveling Component |
Externally visible level bubble and adjustable leveling feet with locking nuts |
| Safe Overload Capacity |
125% of rated capacity |
| Indicator Construction |
Stainless steel |
| Weighing Units |
lb, oz, lb:oz, kg, g |
| Functions |
Weighing, Parts Counting |
| Weight Display |
6-digit, 7-segment backlit LCD, 1 inch / 25 mm high digits |
| Keyboard |
4 function mechanical keys, raised, tactile |
| Stabilization Time |
Within 2 seconds |
| Auto-zero Tracking |
Off, 0.5, 1 or 3 divisions |
| Key Zeroing Range |
2% or 100% of capacity |
| Span Calibration |
5 lb/kg to 100% of capacity, user selectable |
| Power |
100 - 240 VAC/50-60 Hz internal switching power supply with internal rechargeable sealed lead-acid battery
(58-hour typical operation with full charge) |
| Interface |
Bidirectional RS232C |
| Operating Temperature Range |
14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperatures up to 88°F / 31°C,
decreasing linearly to 50 % relative humidity at 104°F / 40°C, non condensing |
| Net Weight |
33 lb
15 kg |
53 lb
24 kg |
60 lb
27 kg |
84 lb
38 kg |
| Shipping Weight |
41 lb
19 kg |
61 lb
28 kg |
67 lb
30 kg |
96 lb
44 kg |
| Shipping Dimensions |
25.3 x 19.6 x 8.5 in
642 x 497 x 212 mm |
33.7 x 22.2 x 8.9 in
857 x 564 x 225 mm |
40.2 x 27 x 9.7 in
1022 x 687 x 247 mm |

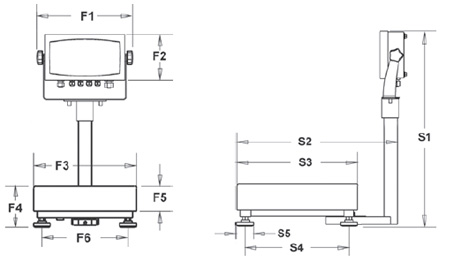

Front View Dimensions
(F1 x F2 x F3 x F4 x F5 x F6) |
8.2 x 6.5 x 12 x 4.8 x 3 x 10 in
210 x 166 x 305 x 119 x 75 x 256 mm |
8.2 x 6.5 x 16.5 x 5.4 x 3.2 x 14.6 in
210 x 166 x 420 x 145 x 80 x 371 mm |
8.2 x 6.5 x 19.7 x 5.6 x 3.5 x 17.3 in
210 x 166 x 500 x 154 x 90 x 440 mm |
Side View Dimensions
(F1 x F2 x F3 x F4 x F5 x F6) |
22.5 x 18.6 x 14 x 12 x 2 in
572 x 472 x 355 x 306 x 52 mm |
36.2 x 26.3 x 21.7 x 19.7 x 2 in
920 x 668 x 550 x 500 x 52 mm |
36.2 x 29.1 x 25.6 x 23.2 x 2 in
920 x 740 x 650 x 590 x 52 mm |
