Mark 10 TSTM-DC ADVANCED MOTORIZED TEST STAND

Mark TSTM-DC
The TSTM-DC is shown in a cap torque test, with a Series STJ torque sensor, BGI force/torque indicator, and G1023 universal closure grip, and G1053 cap grip
Mark 10 TSTMH-DC
The TSTMH-DC is shown in a pen cap torque test, with a Series STJ torque sensor, BGI force/torque indicator, and G1022 Jacobs chuck grip
call now

View Spec Cart    Dimensions

The TSTM-DC is an advanced motorized torque test stand offering all the mechanical specifications of the TSTM. The test stand is designed for a wide variety of applications requiring up to 100 lbFin of torque, including closure torque testing, fastener torque testing, and more. Modular design allows the stand to be configured for a variety of torque sensors and gripping fixtures while a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and fixture mounting. Stepper motor design eliminate speed variation with load.

TThe TSTM-DC?s controller adds a significant amount of sophistication, including integrated angle display and output, programmable angle travel limits, an extended speed range, PC control capability, programmable cycling, auto return, overload protection, and other features.

  • Maximum torque: 100 lbFin [11.3 Nm]
  • Speed range: 0.01 - 15 RPM [0.05 - 90°/s]
  • Speed accuracy: ±0.2% of setting, ±0% variation with load
  • Integrated angle indication with programmable travel limits
  • Maximum programmable travel limits: ±999,999.9° / ±2,777.77 revolutions
  • Rotational travel accuracy: ±0.7°
  • Rotational travel repeatability: 0.1°
  • Rotational travel resolution: 0.1°
  • Universal power supply: 80-250 VAC
  • Mounting holes for bench mounting
  • Base may be removed for alternative mounting
  • Grip / fixture mounting plate with 25 #10-32 threaded holes
  • Slider travel rate: 1.047? [26.6 mm] / lever rev
  • CE mark

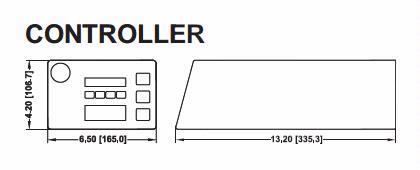

Controller Features

Computer Controller

An RS-232 port is provided to interface with a PC. The ESM-DC accepts a number of commands pertaining to test stand motion and force gauge functions*. The following additional items are required for PC control:

  • - Series BG force gauge
  • - 09-1056 serial cable (see Optional Equipment)
  • - 09-1143 multi-function cable (see Optional Equipment)

Mark 10 TSTM-DC ADVANCED MOTORIZED TEST STAND

Price: $7077.50

Mark 10 09-1143 Multi-function cable gauge to controller , Add $118.75
Mark 10 09-1056 Serial cable, controller to PC, Add $28.00
Mark-10 09-1048A RS-232, 9-pin Cable, Add $71.00
Mark 10 RSU100 Communication adapter, RS-232 to USB, Add $118.00
Mark-10 TSF002 Mounting Kit, Add $190.00

View Spec Cart

Dimension

Overload ProtecTion
Protects a force gauge against overload (requires a Series BG force gauge and 09-1143 multi-function cable). The user programs the desired percentage of full scale of the gauge. Adjustable analog output voltage setting allows the test stand to interface with virtually any force gauge with analog output.

Auto Return
The crosshead moves to a limit switch or force set point (requires a Series BG force gauge), stops, and reverses direction at maximum speed to the other limit switch or set point.

Cycling / Dwel Time
The crosshead moves up and down between limit switches or force set points (requires a Series BG force gauge). Configurable up to 99,999 cycles. Dwell time allows the operator to program the amount of time, up to 9,999.9 seconds, in 0.1 second intervals, for which the crosshead pauses at limits.

Programmable UP / DOWN Button Functions
UP and DOWN button operation can be configured in three user-configurable modes: Maintained: a short push produces continuous motion until STOP is pressed, Momentary: crosshead moves only while the button is pressed, and Auto: short push produces maintained motion, while holding down the button will produce momentary motion.

Independent Up and Down Speeds
Programmable independent speeds for up and down directions

Selectable speed units of measurement (in/min & mm/min)

Password protection
Prevents unauthorized changes to test parameters

* Contains no integrated travel measurement. Travel information available only through the external ESM001 digital travel display, requiring an additional serial port on the PC. For an integrated solution with full PC control, including travel distance, see test stand model ESM301.



Model TSTM-DC TSTMH-DC
TSTM-DC TSTMH-DC
Price $7077.50 $7077.50
  Vertical Horizontal
Maximum force 100 lbFin [11.3 Nm]
Maximum travel 15.5" [394 mm]
Speed range 0.01 - 15 RPM [0.05 - 90°/s]
Speed accuracy ±0.2% of setting, ±0% variation with load
Maximum programmable travel limits ±999,999.9° / ±2,777.77 revolutions
Rotational travel accuracy ±0.7°
Rotational travel repeatability 0.1°
Rotational travel resolution 0.1°
Universal power supply 80-250 VAC
Integrated angle indication with programmable travel limits
Mounting holes for bench mounting
Base may be removed for alternative mounting
Grip / fixture mounting plate with 25 #10-32 threaded holes
Slider travel rate: 1.047? [26.6 mm] / lever rev
CE mark

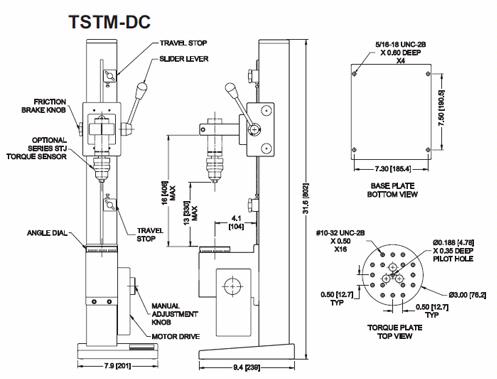

TSTM-DC

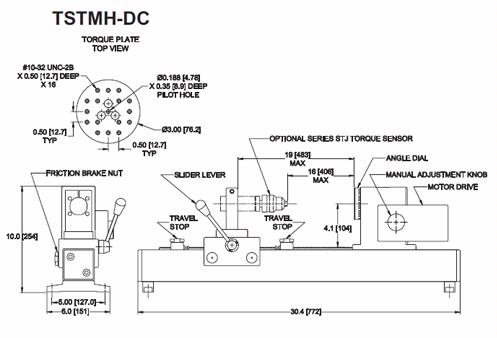

TSTMH-DC
