Mark-10 ESM1500F Motorized test stand with PC Control
Authorized Dealer

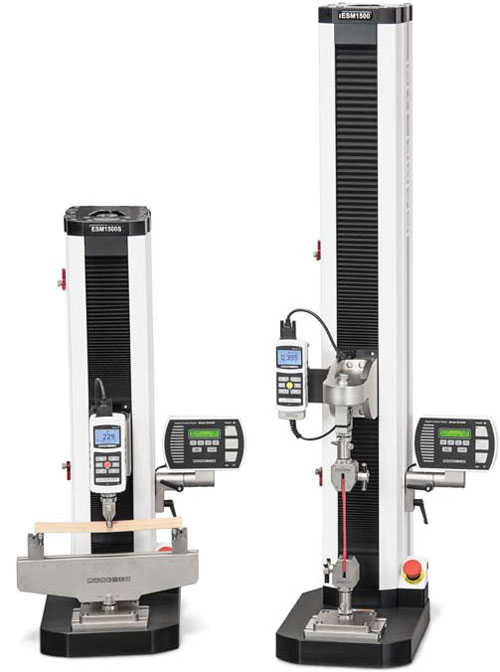

The ESM1500 is a highly configurable single-column force tester for tension and compression measurement applications up to 1,500 lbF (6.7 kN). Suitable for laboratory and production environments, the ESM1500 may be used with an indicator-load cell combination or with a force gauge. Sample setup and fine positioning are a breeze with available
Mark 10 ESM1500

View Spec Cart

View Grips

Compatible Force Gauges

call now

ESM1500 and ESM750 single-column force testers are highly configurable solutions for tension and compression measurement applications, with capacities of 1,500 lbF (6.7 kN) and 750 lbF (3.4 kN), respectively. With generous travel and clearance, they are suitable for break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more.

Satisfy various test methods through an intuitive menu with selectable test parameters, such as speed, number of cycles, etc. Up to 50 profiles may be saved and password protected. Crosshead positioning for sample setup is a breeze with available FollowMe®. Using your hand as your guide, push and pull on the load to move the crosshead at a dynamically variable speed.

The stands feature a unique modular controller function platform. Functions such as travel measurement, cycling, etc. are offered individually, accommodating a wide range of budgets and applications. Collect force and travel data, plot and analyze results, and control test stand motion via MESUR®gauge Plus software. Or, fully control the stand by a PC through a custom application.

  • Broad force range and clearance dimensions
  • Compatible with load cells and force gauges
  • USB output of force vs. time or force vs. distance
  • Adjustable, removal control panel with intuitive menu navigation
  • Unique modular function platform - select functions as required for the application
  • Password protection of test parameters
  • Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
  • Compact footprint, suitable for crowded workbenches
  • Most electronics are housed in an integrated removeable enclosure, easily accessed for service
Key Features and Options

FollowMe TM dynamic positioning Using your hand as your guide, push and pull on the load cell or force gauge to move the crosshead. Re-sponsive enough for quick positioning as well as fine adjustments

Simple controller interface Rugged aluminum up/down/stop keys are designed for industrial environments. Zero Travel and FollowMe TM keys add convenience. Removable for remote use. See the following page for a full list of available functions.

Limit switches Adjustable upper and lower solid state limit switches stop test stand travel with 0.001 in. [0.025 mm] repeatability.

Modular design Most electronics are housed in an integrated enclosure,easily accessible and remov-able for updating and service.

Indicators Choose from three indicator models. Consider a Model 7i or 5i to take full advantage of all test stand functions.

Series R01 force sensors (load cells) Rugged S-beam design. Avail- able in capacities from 50 to 2,000 lbF [250 N to 10 kN].

Series R03 force sensors (load cells) Enclosed design. Available in capacities from 0.25 to 100 lbF [1 to 500 N]

Force gauges Choose from several gauge series. Consider a Series 7 or 5 gauge to take advantage of all test stand functions.

Optional mounting plate, threaded hole matrix A matrix of #10-32 threaded holes is provided, along with a 5/16-18 center hole

Optional mounting plate, m ultiple hole thread sizes Three thread sizes are provided [#10-32, 5/16-18, and 1/2-20], along with an array of four 1/4-28 holes

MESUR TM gauge data collection software Output force vs. time or force vs. distance data from the ESM1500’s USB port. MESUR TM gauge graphs,tabulates, calculates statistics, and provides report-ing and output tools

Optional Functions Any of the below functions may be purchased at time of order or may be activated in the field at a later date via an activation code. A complete options package is also available at a discounted price. The stand is supplied in Demo Mode, a 160-hour time period in which all functions are temporarily enabled

Mark-10 ESM1500 \ ESM750 Motorized Test Stands

Price From: $6,362.63

Mark-10 AC1055 Base plate, matrix of threaded holes
Mark-10 AC1055 Base plate, matrix of threaded holes, add $128.25
Mark-10 AC1054 Base plate, multiple center hole threads
Mark-10 AC1054 Base plate, multiple center hole threads, add $128.25
Mark-10 AC1045 Force gauge adapter kit #10-32F
Mark-10 AC1045 Force gauge adapter kit #10-32F, add $99.75
Mark-10 AC1045-1 Force gauge adapter kit 5/16-18F
Mark-10 AC1045-1 Force gauge adapter kit 5/16-18F, add $99.75
Mark-10 AC1047-3 Base / load cell adapter kit, 1/4-28M
Mark-10 AC1047-3 Base / load cell adapter kit, 1/4-28M, add $80.75
Mark-10 AC1047-2 Base / load cell adapter kit, 1/2-20M
Mark-10 AC1047-2 Base / load cell adapter kit, 1/2-20M , add $80.75
Mark-10 SF008 FollowMe force-based manual positioning
Mark-10 SF008 FollowMe force-based manual positioning, add $536.75
Mark-10 SF009 Travel indication (ESM1500 only)
Mark-10 SF009 Travel indication (ESM1500 only), add $1,885.75
Mark-10 SF009-1 Travel indication with USB output (ESM1500S or ESM-750S only)
Mark-10 SF009-1 Travel indication with USB output (ESM1500S or ESM-750S only), add $1,448.75
Mark-10 SF010 Computer control via USB
Mark-10 SF010 Computer control via USB, add $1,106.75
Mark-10 SF011 Programmable travel set points
Mark-10 SF011 Programmable travel set points, add $893.00
Mark-10 SF012 Overload protection
Mark-10 SF012 Overload protection , add $779.00
Mark-10 SF013 Auto return
Mark-10 SF013 Auto return, add $532.00
Mark-10 SF014 Cycling / dwell time
Mark-10 SF014 Cycling / dwell time, add $779.00
Mark-10 SF016  Independent up and down speeds
Mark-10 SF016 Independent up and down speeds, add $479.75
Mark-10 SF017 Extended speed range, low
Mark-10 SF017 Extended speed range, low, add $532.00
Mark-10 SF018 Extended speed range, high (ESM1500 only)
Mark-10 SF018 Extended speed range, high (ESM1500 only), add $532.00
Mark-10 SF018-1 Extended speed range, high (ESM1500S or ESM-750S only)
Mark-10 SF018-1 Extended speed range, high (ESM1500S or ESM-750S only), add $532.00
Mark-10 SF019 Break detection
Mark-10 SF019 Break detection, add $532.00
Mark-10 SF020 Loadholding
Mark-10 SF020 Loadholding, add $783.75
Mark-10 SF021 Preload / sample touch
Mark-10 SF021 Preload / sample touch, add $655.50
Mark-10 SFCOMP Complete options package for ESM1500
Mark-10 SFCOMP Complete options package for ESM1500, add $6,493.25
Mark-10 SFCOMP-1 Complete options package for ESM1500S or ESM-750S only
Mark-10 SFCOMP-1 Complete options package for ESM1500S or ESM-750S only, add $6,103.75

View Spec Cart

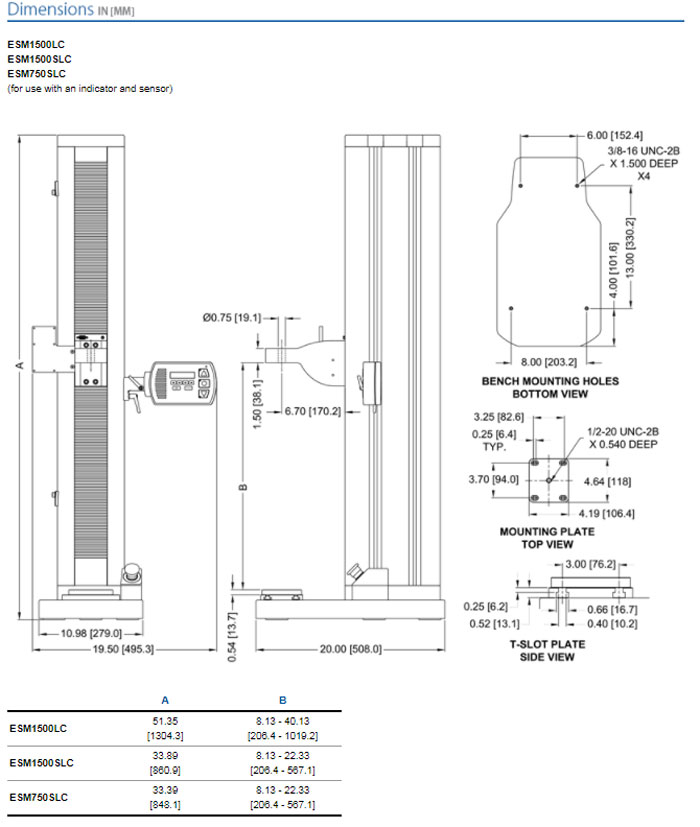

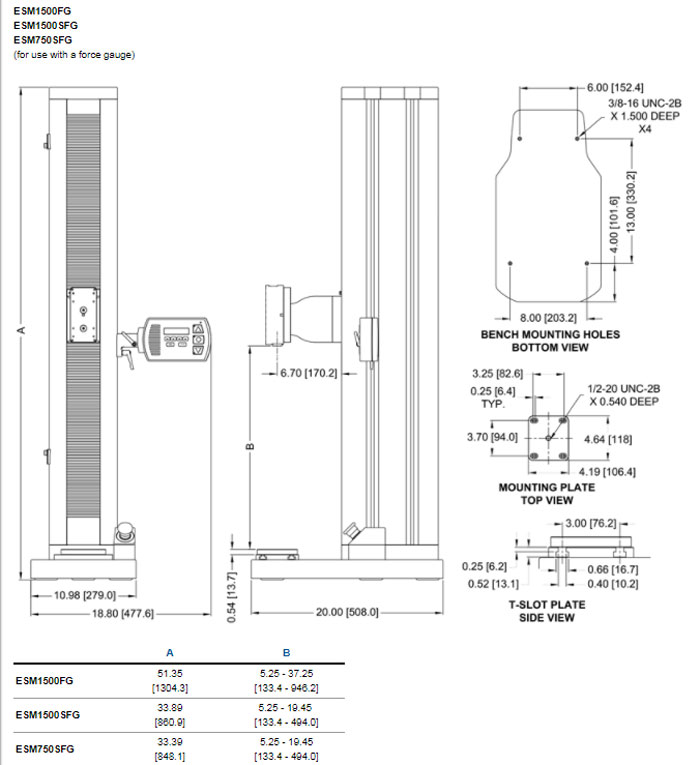

Model ESM1500LC ESM1500FG ESM1500SLC ESM1500SFG ESM750SLC ESM750SFG
Price Mark-10 ESM1500LC Motoriz
$7,851.75
buy now
Mark-10 ESM1500FG Motoriz
$7,851.75
buy now
Mark-10 ESM1500SLC Motori
$7,346.35
buy now
Mark-10 ESM1500SFG Motori
$7,346.35
buy now
Mark-10 ESM750SLC Motoriz
$6,362.63
buy now
Mark-10 ESM750SFG Motoriz
$6,362.63
buy now
Mount Type Load Cell Force Gauge Load Cell Force Gauge Load Cell Force Gauge
Load capacity 1,500 lbF [6.7 kN] at < 60 in [1,525 mm]/min
1,000 lbF [4.5 kN] at > 60 in [1,525 mm]/min
750 lbF [3.4 kN] at < 35 in [900 mm]/min
500 lbF [2.3 kN] at > 35 in [900 mm]/min
Speed range Standard : 0.5 - 24 in/min [10 - 600 mm/min]
Optional: 0.001 - 90 in/min [0.02 - 2,300 mm/min] Optional: 0.001 - 60 in/min [0.02 - 1,525 mm/min]
Maximum travel: 32 in [813 mm] 14.2 in [360 mm]
Speed setting accuracy ±0.2%
Speed variation with load ±0% [Stepper motor driven]
Travel accuracy ±0.002 in. per 10 in. [±0.05 mm per 250 mm]
Travel resolution 0.001 in [0.02 mm]
Limit switch repeatability ±0.001 in [0.03 mm]
Power Universal input 80-240 VAC, 50/60 Hz, 450 W Universal input 80-240 VAC, 50/60 Hz, 120 W
Weight Test stand: 198 lb [90 kg]
Shipping weight: 248 lb [113 kg]
Test stand: 160 lb [72 kg]
Shipping weight: 206 lb [93 kg]
Test stand: 150 lb [68 kg]
Shipping weight: 198 lb [88 kg]
Included accessories:
  • 1 x G1081 eye end
  • 1 x G1080 anchor pin
  • 2 x G1079 lock ring, 3/4-16
  • 2 x G1088 spanner wrench
  • 1 x Load cell / indicator mounting kit (-LC test stands)
  • 1 x Force gauge mounting kit (-FG test stands)
  • 1 x USB cable
  • 1 x Interface cable, gauge/indicator to test stand
  • 4 x Thumb screw for indicator / force gauge
  • 1 x Allen wrench set
  • 1 x Control panel
  • 1 x Control panel mounting bracket with hardware
  • 1 x Power cord
  • 1 x Resource CD







Any of the below functions may be purchased at time of order or may be activated in the field at a later date via an activation code. A complete options package is also available at a discounted price. The stand is supplied in Demo Mode, a 160-hour time period in which all functions are temporarily enabled

Feature Part No. Description Requirements
FollowMeTM force-based positioning SF008 Crosshead movement responds to manually pushing or pulling on the force gauge shaft or load cell. Increasing force produces greater speeds. Ideal for setups and quick positioning. Series 7 or 5 gauge or indicator $536.75
buy now
Travel indication SF009 (ESM1500 Only) Travel is indicated on the control unit display, with output via USB. An internal scale utilizing Renishaw technology produces significantly higher accuracy than with conventional rotary encoder-based designs. Backlash and nonlinearity are virtually eliminated. - $1,885.75
buy now
Computer control SF010 The ESM1500 may be fully controlled by a PC through a custom-written program in any language supporting ASCII communications. Also responds to the legacy Chatillon TCD command set and legacy Nexygen TCD software (not available from Mark-10). Series 7 or 5 gauge or indicator
SF009 travel indication
SF011 programmable travel set points
$1,106.75
buy now
Programmable travel limits SF011 The stand stops at or cycles between programmable upper and lower travel distances. SF009 travel indication option $893.00
buy now
Overload protection SF012 Protects a force sensor or force gauge against overload. Program the desired percentage of full scale of the gauge. Adjustable analog output voltage setting allows the stand to interface with virtually any gauge with analog output. Series 7 or 5 gauge or indicator $779.00
buy now
Auto return SF013 The crosshead moves to a limit switch, force set point, travel position, or break, then stops and reverses direction at full speed to the other limit. Reversing at force set point: Series 7 or 5 gauge or indicator
Reversing at travel limit: SF011 programmable travel limits option
Reversing at break: SF019 break detection option
$532.00
buy now
Cycling / dwell time SF014 Same as auto-return, but with the ability to program up to 100,000 cycles. Programmable dwell time for upper and lower limits (set independently) can be set up for up to 10,000 seconds. Same as auto-return, at the same speed in each direction. Add SF016 for independent up and down speeds $779.00
buy now
Independent Up and Down speeds SF016 Individually configure speeds for the up and down directions. - $479.75
buy now
Low speed extension SF017 Extends the standard speed range down to 0.001 in/min (0.02 mm/min). - $532.00
buy now
High speed extension SF018 (ESM1500 Only) Extends the standard speed range up to 90 in/min (2,300 mm/min). - $532.00
buy now
Break detection SF019 Crosshead stops at a sudden drop in force. Programmable percentage of peak force. Series 7 or 5 gauge or indicator $532.00
buy now
Loadholding SF020 Dynamically adjusts the crosshead position to maintain a programmed load for an indefinite or specified period of time. Series 7 or 5 gauge or indicator
If a specified time is required, order SF014 cycling / dwell time option
$783.75
buy now
Preload / sample touch SF021 Stops the crosshead and/or zeroes the travel display at an initial preload - useful in tensile, compression, spring, elongation, and other applications. Preload is programmable as a percentage of force gauge/load cell full scale. Three modes: (1) stop, (2) stop and zero, and (3) zero without stopping. SF009 travel indication
Series 7 or 5 gauge or indicator
$655.50
buy now
Complete options package SFCOMP (ESM1500 Only) Includes all functions listed above. Requires a Series 7 or 5 gauge or indicator. $6,493.25
buy now
